Fuel Pump Flow Control Module Replacement

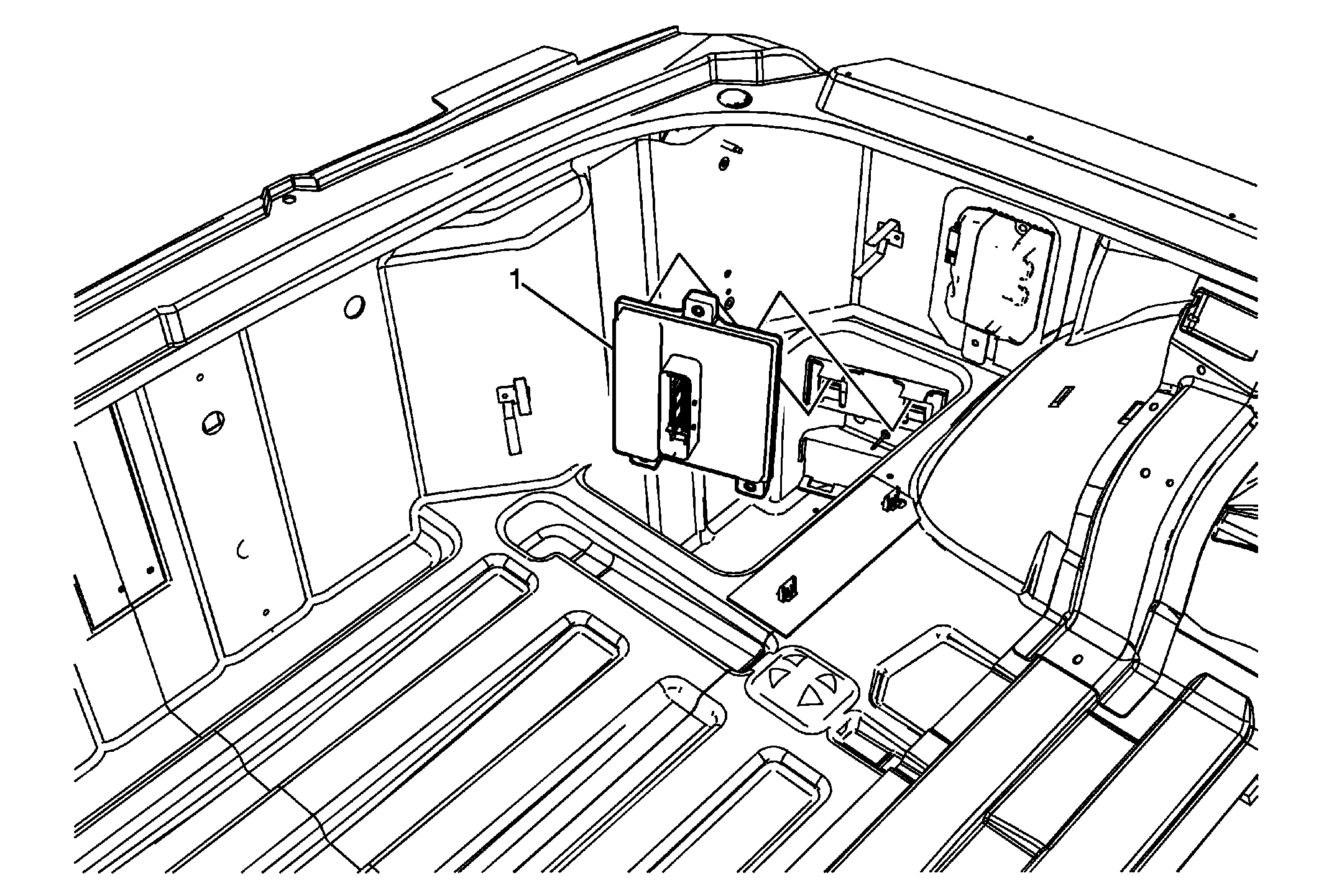

Fig 1: Identifying Fuel Pump Flow Control Module
GM2112692Courtesy of GENERAL MOTORS COMPANY
Fuel Pump Flow Control Module Replacement

Callout Component Name
Preliminary Procedure
Partially remove the rear compartment floor panel carpet. Refer to Rear Compartment Floor Panel Carpet Replacement (Convertible) , Rear Compartment Floor Panel Carpet Replacement (Coupe)
1 Fuel Pump Flow Control Module

Procedure

  1. Remove the access cover.
  2. Disconnect the electrical connector.
  3. Release the two integral retainer tabs and remove the module.
  4. If replacing the fuel pump flow control module, program the control module. Refer to Control Module References
