Ignition Coil Replacement

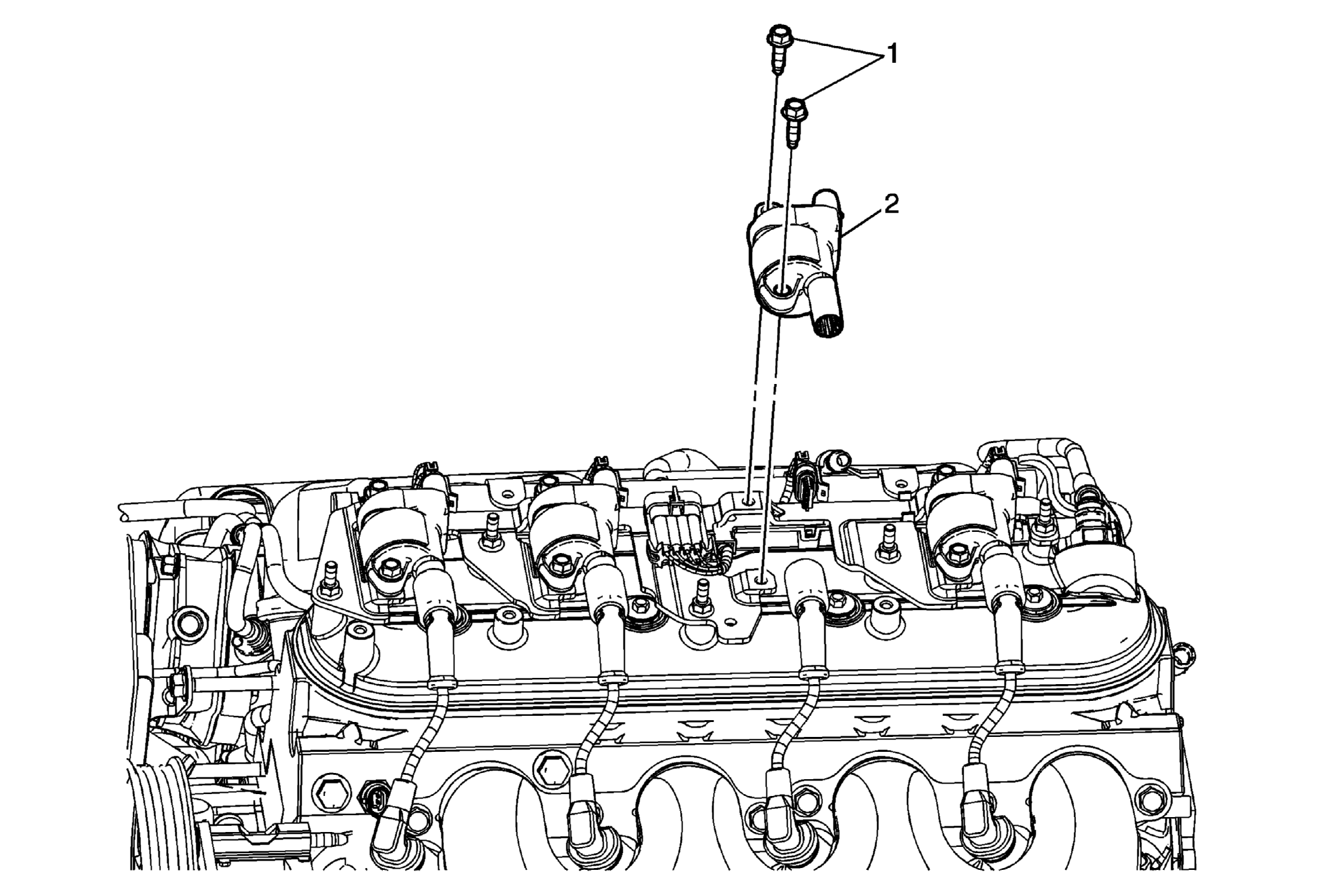

Fig 1: Ignition Coil
GM1969222Courtesy of GENERAL MOTORS COMPANY
Ignition Coil Replacement

Callout Component Name

Preliminary Procedures

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (LS7 or LS9) , Battery Negative Cable Disconnection and Connection (LS3) .
  2. Remove the intake manifold sight shield. Refer to Upper Intake Manifold Sight Shield Replacement (6.2L LS9 - With Supercharger) , Upper Intake Manifold Sight Shield Replacement (w/o LS9) .
1 Ignition Coil Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
12 N.m (106 lb in)
2 Ignition Coil

Procedure

  1. Disconnect the electrical connector.
  2. Disconnect the ignition cable.
