Removal Procedure

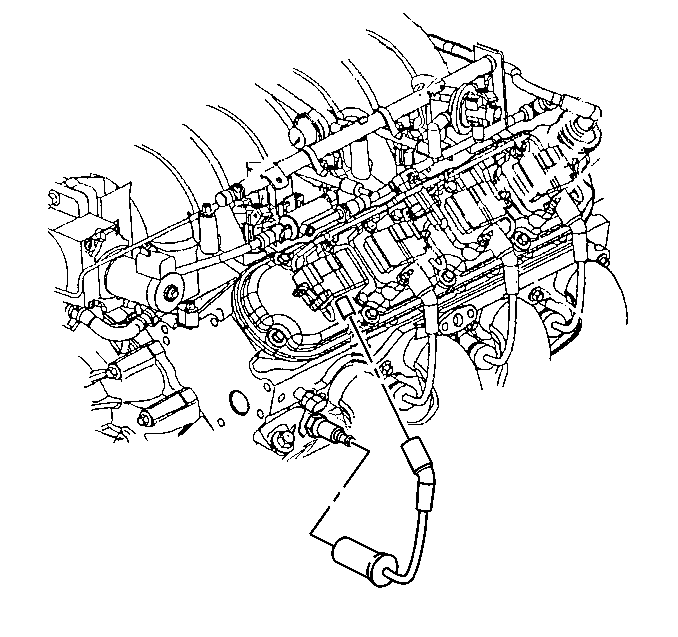

    Fig 1: Spark Plug Wire Routing
    GM74069Courtesy of GENERAL MOTORS COMPANY
  1. Disconnect the spark plug wires at each spark plug:
    • Twist each spark plug boot 1/2 turn.
    • Pull only on the boot in order to remove the wire from each spark plug.
  2. Disconnect the spark plug wires from the ignition coil:
    • Twist each spark plug boot 1/2 turn.
    • Pull only on the boot in order to remove the wires from the ignition coil.
