Installation Procedure
- Ensure the shock dampener is on the rack before installing the inner tie rod.
- Apply LOCTITE® 262, or equivalent, to the inner tie rod threads (2).
- Install the inner tie rod (3) to the rack (1).

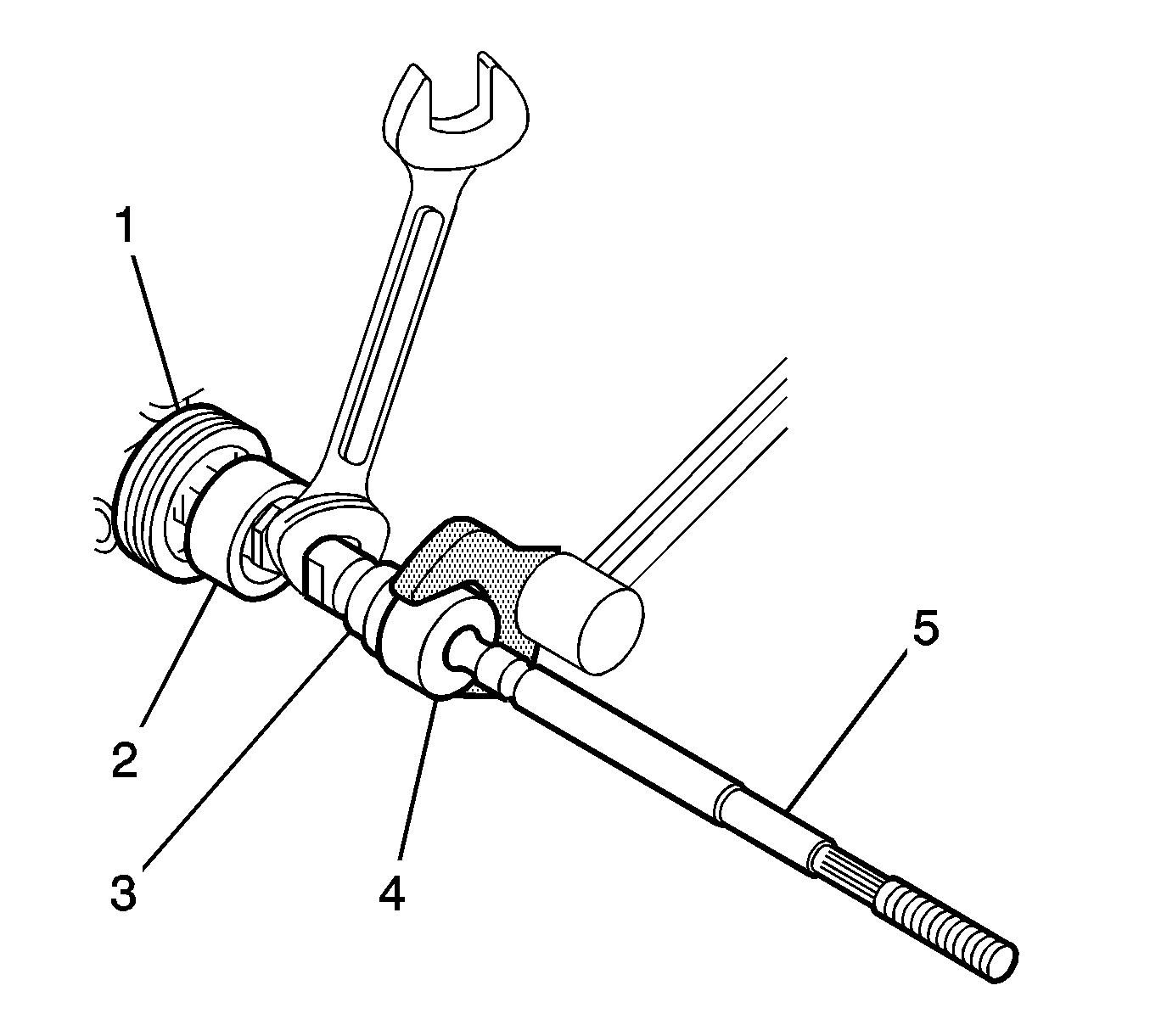

- While holding the rack (3) with a wrench, use a torque wrench and the J-34028 wrench in order to tighten the inner tie rod to 100 N.m (74 lb ft).
- Slide the shock dampener (2) over the inner tie rod housing (3) until the front lip of the shock dampener bottoms out against the inner tie rod housing.
- Install the rack and pinion boot. Refer to Rack and Pinion Boot Replacement .
- Measure and adjust the front toe. Refer to Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment .
NOTE:
Check the container of the LOCTITE®, or equivalent, for the expiration date. Use only enough LOCTITE® to evenly coat the threads.
CAUTION:
Refer to Fastener Caution .
