Rear Toe Adjustment

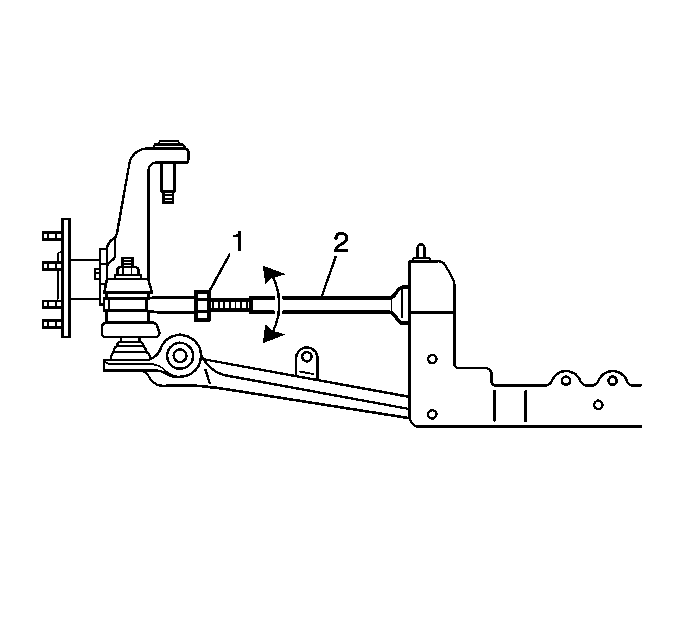

    Fig 1: Rear Suspension Adjustment Link Lock Nut & Inner Tie Rod
    GM192836Courtesy of GENERAL MOTORS COMPANY
  1. Loosen the rear suspension adjustment link lock nut (1).
  2. Rotate the inner tie rod (2) to the required toe specification setting. Refer to Wheel Alignment Specifications .
    3. CAUTION:

    Refer to Fastener Caution .

  3. Tighten the rear suspension adjustment link lock nut to 65 N.m (48 lb ft).
  4. Check the toe setting after tightening.
  5. Adjust the toe setting if necessary.
