Heated Seat Control Module - Passenger (KA1)

Passenger Compartment/Roof Component Views

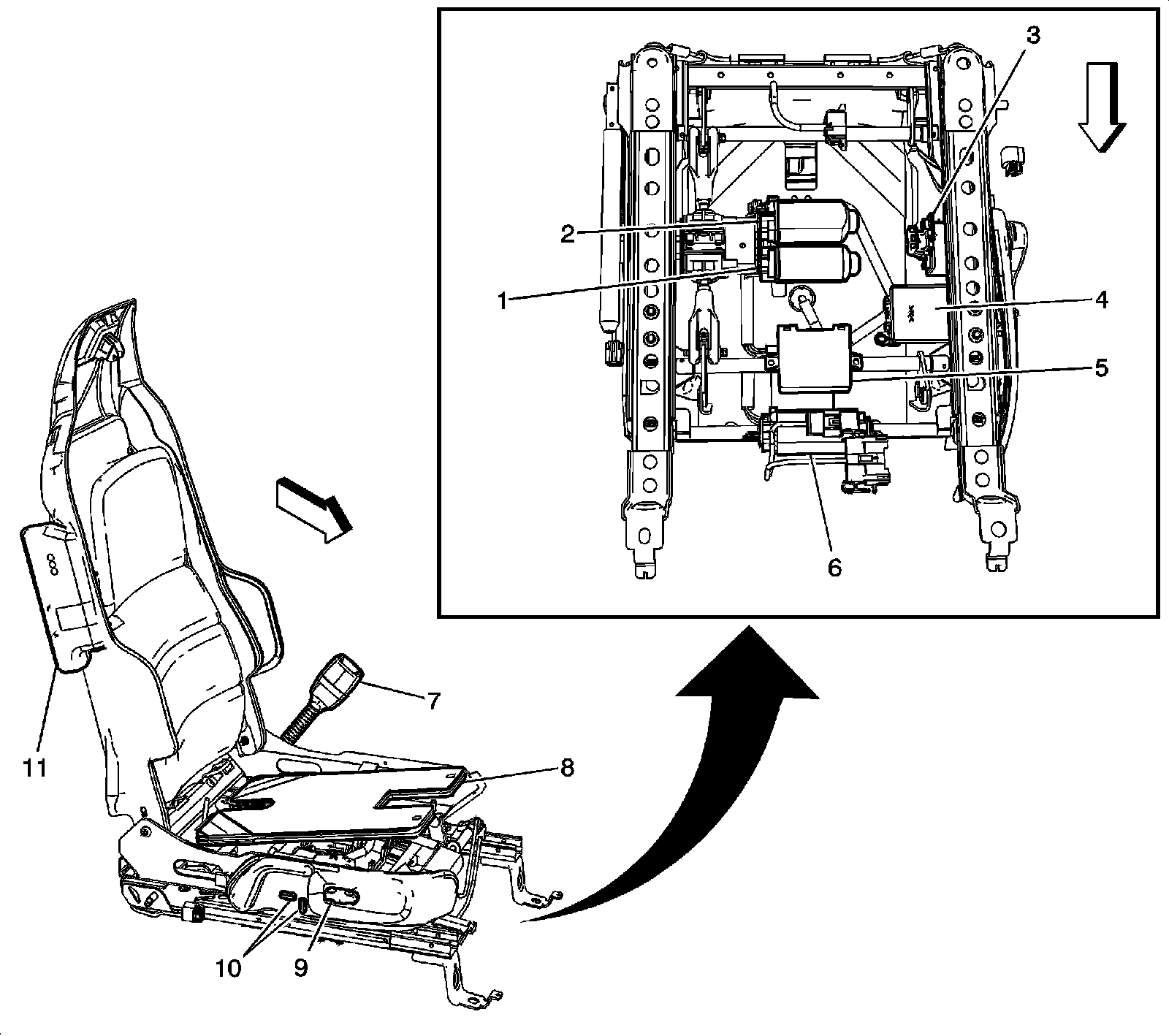

Passenger Seat Components





1 - Seat Front Vertical Motor - Passenger (AG2)

2 - Seat Rear Vertical Motor - Passenger (AG2)

3 - Inflatable Restraint Seat Position Sensor - Passenger

4 - Inflatable Restraint Front Passenger Presence System (PPS) Module

5 - Heated Seat Control Module - Passenger (KA1)

6 - Seat Horizontal Motor - Passenger (AG2)

7 - Seat Belt Pretensioner - Passenger

8 - Heated Seat Element - Passenger Cushion

9 - Seat Adjuster Switch - Passenger

10 - Seat Lumbar Switch - Passenger

11 - Inflatable Restraint Side Impact Module - Right
