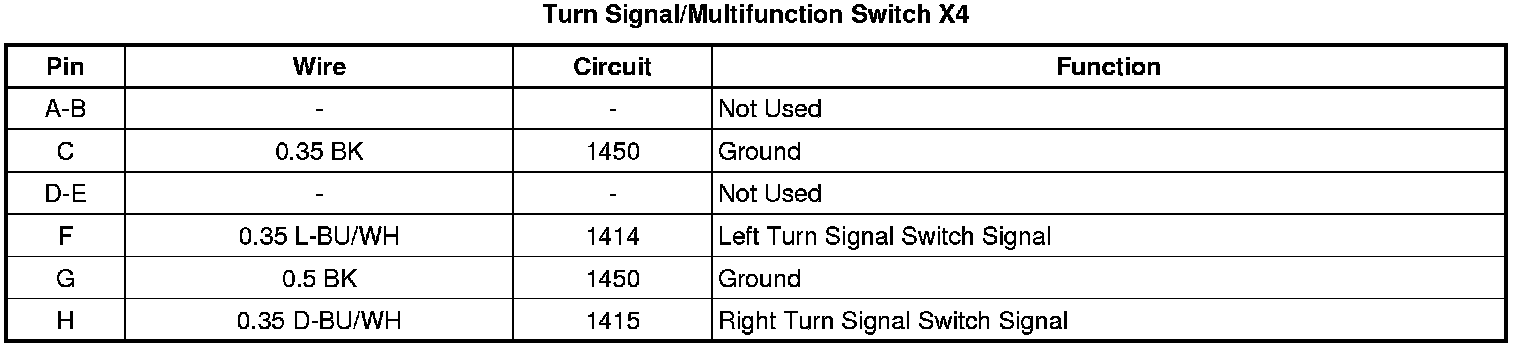

Turn Signal/Multifunction Switch X4

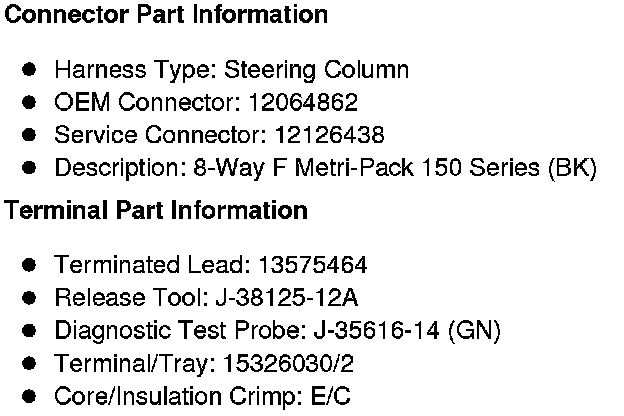

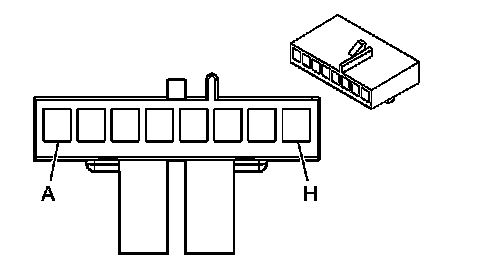

Component Connector End Views
Turn Signal/Multifunction Switch X4
