Power Trunk / Liftgate Lock Switch

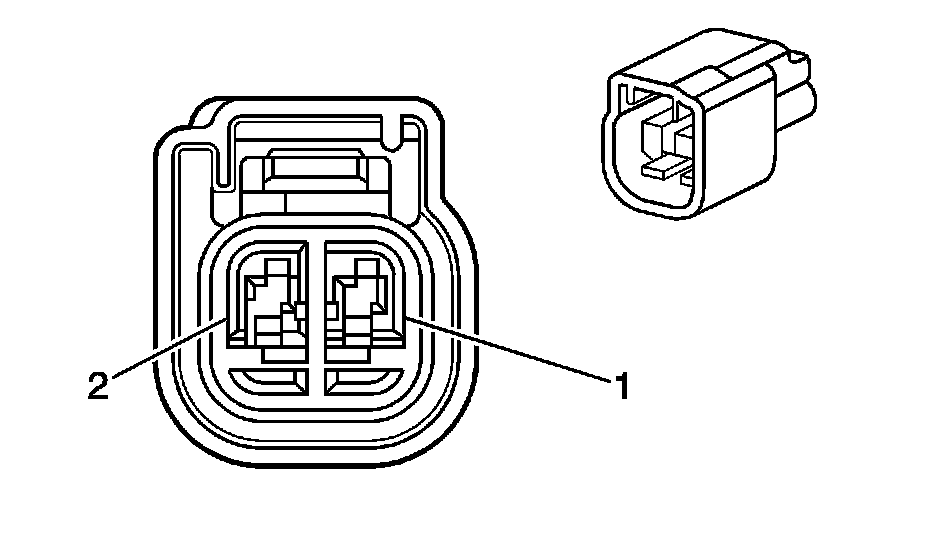

Component Connector End Views

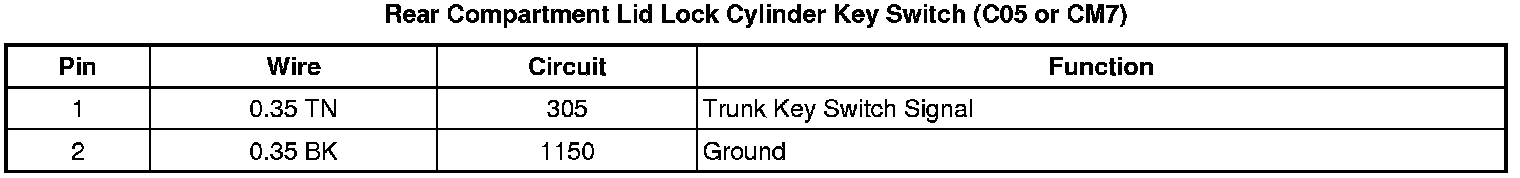

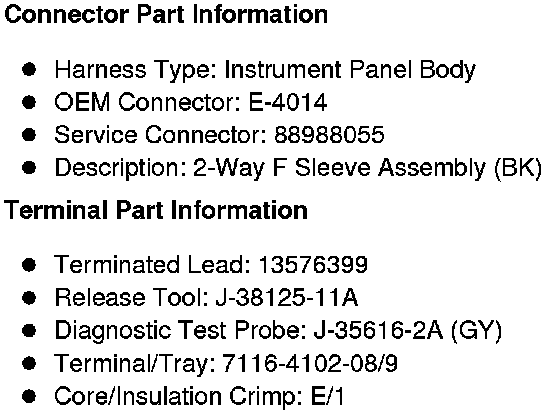

Rear Compartment Lid Lock Cylinder Key Switch (C05 or CM7)
