Body Control Systems




Body Control System Schematics

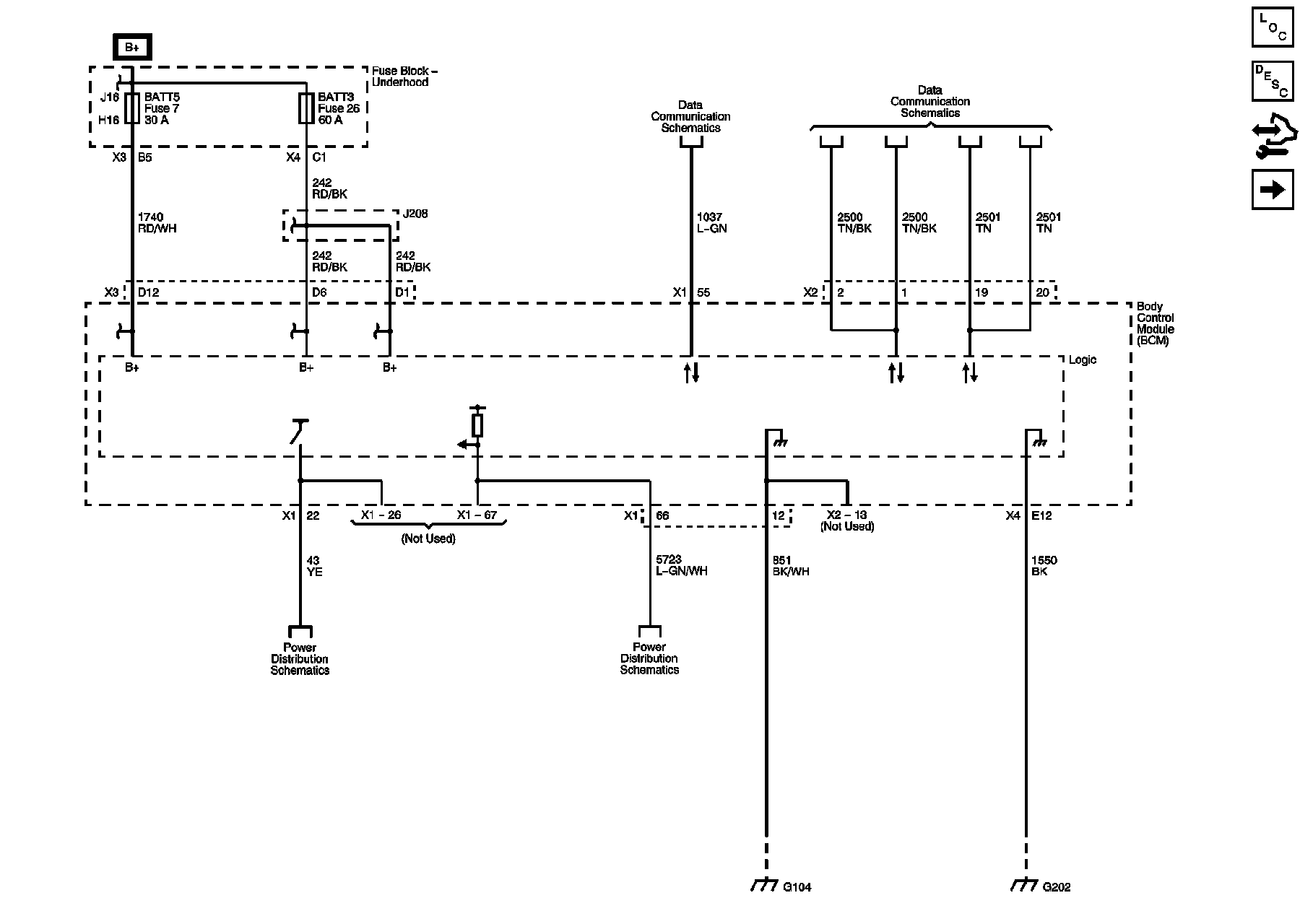

Power, Ground and Serial Data

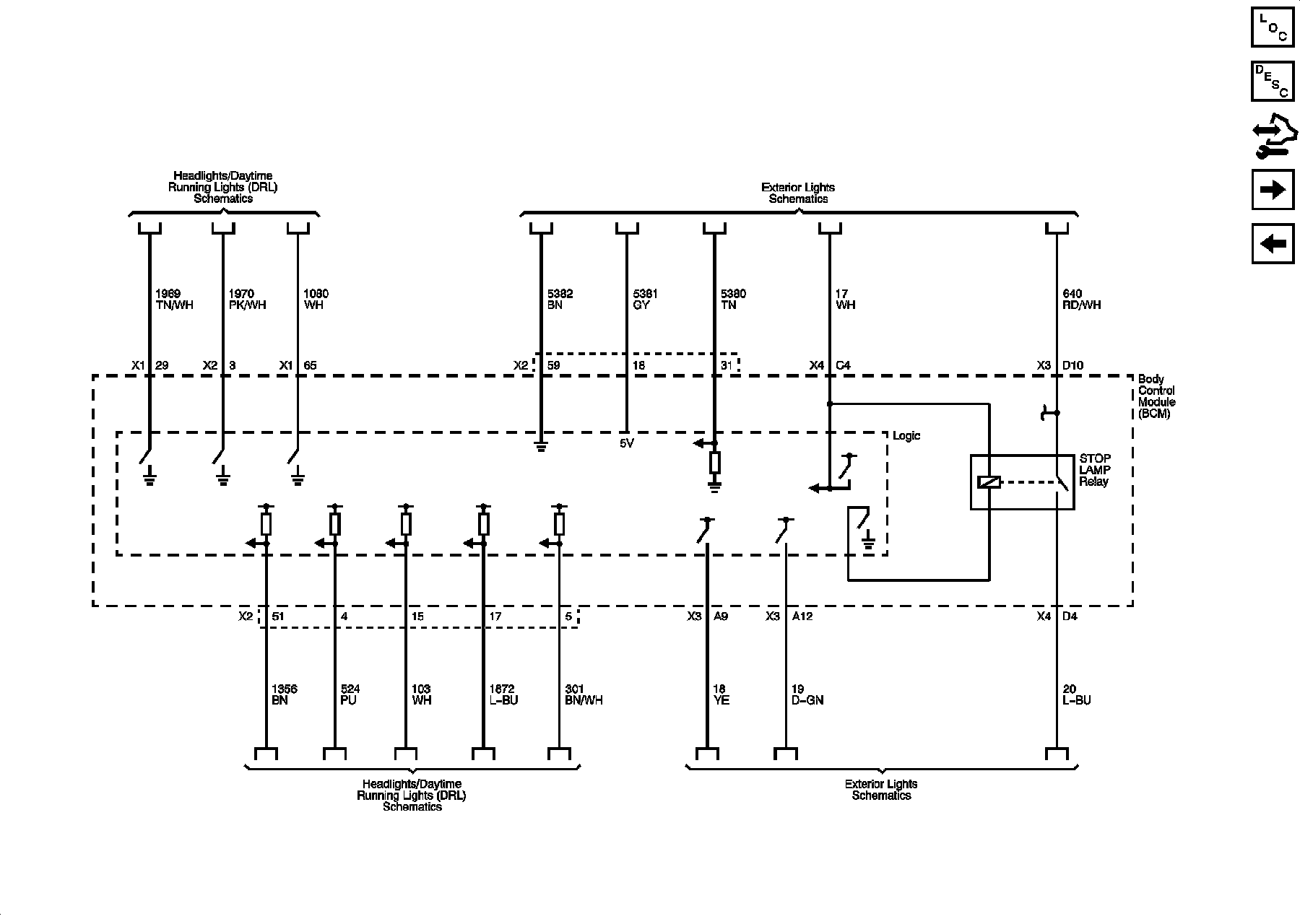

Lighting References (1 of 2)

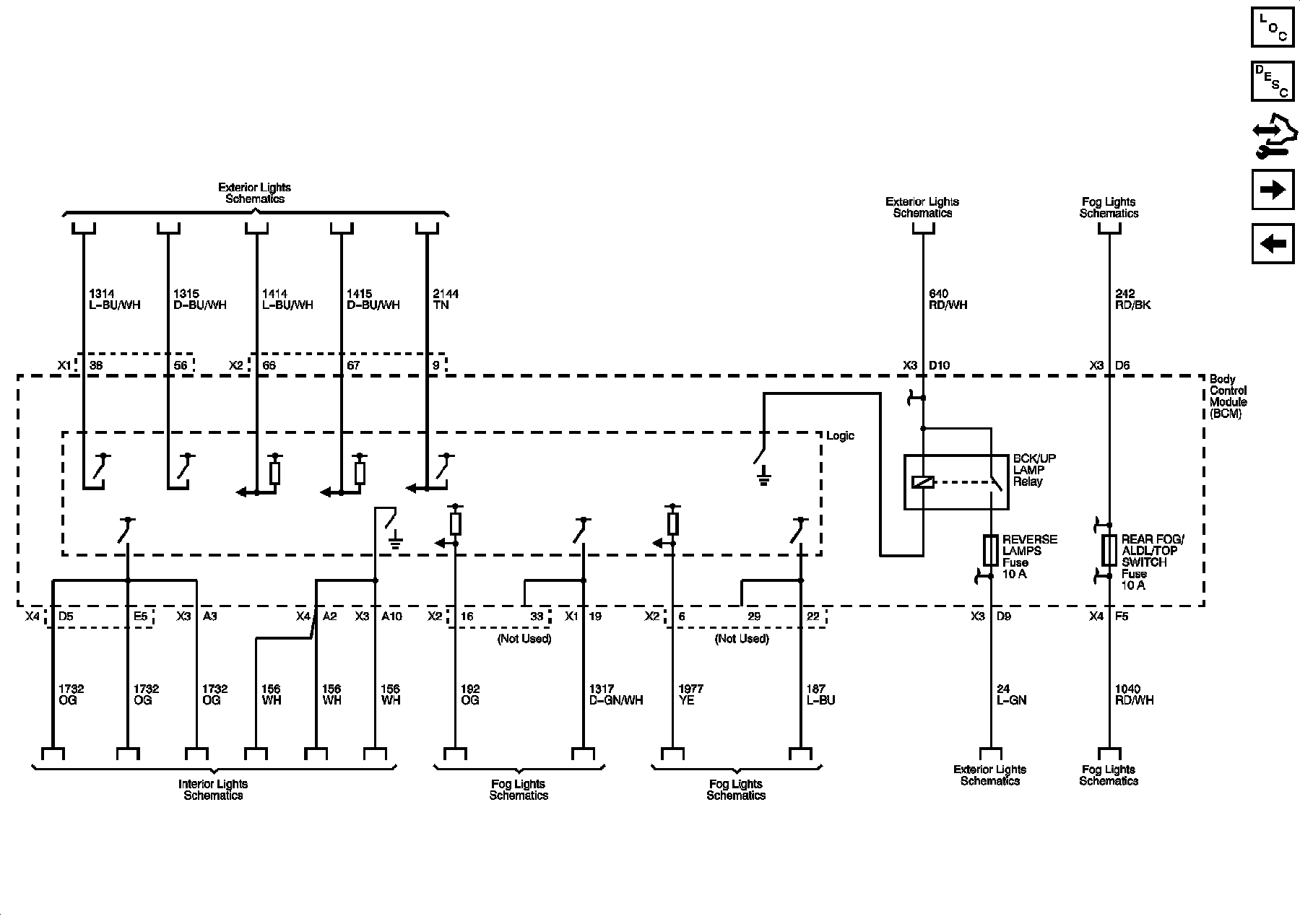

Lighting References (2 of 2)

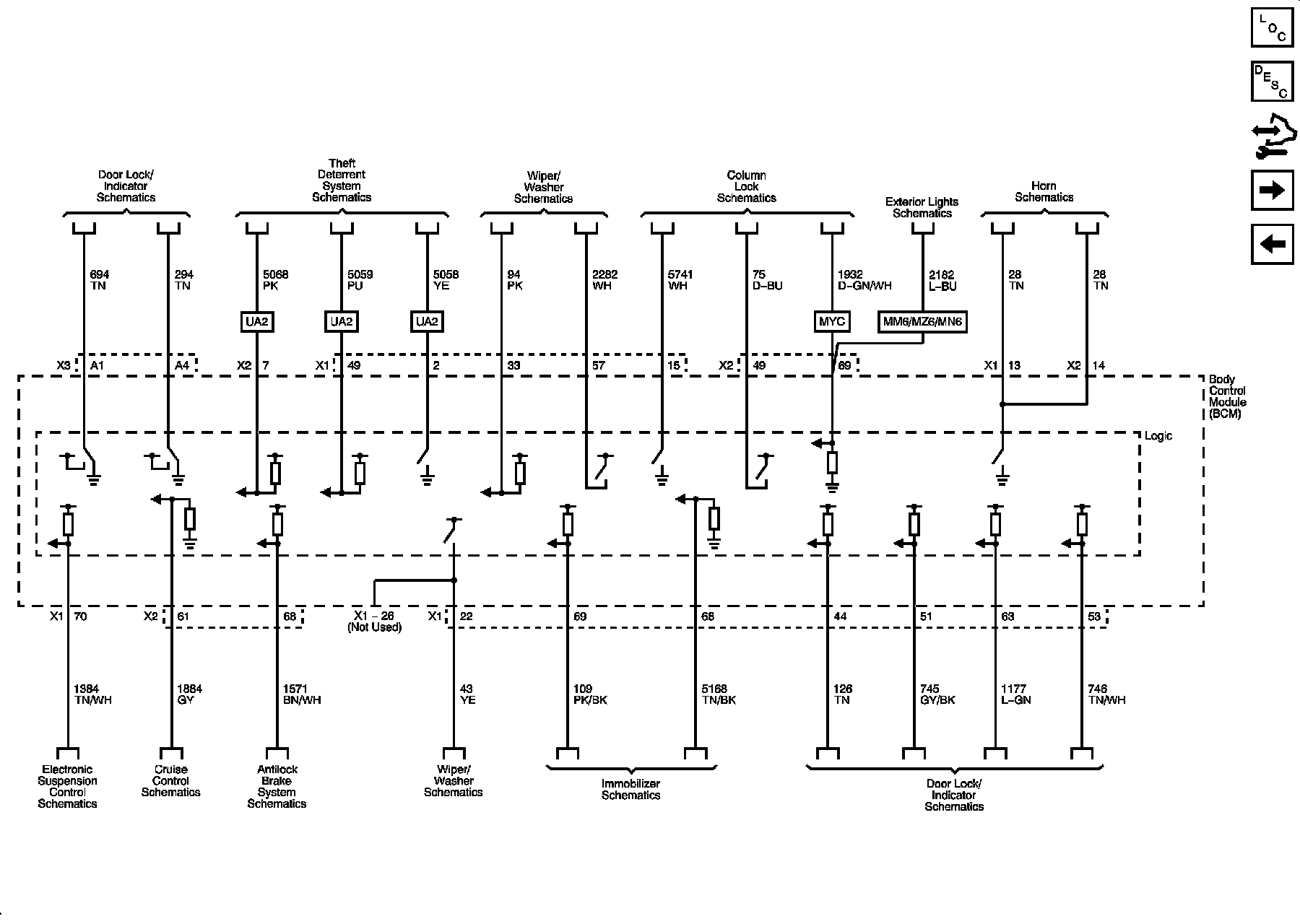

Subsystem References (1 of 2)

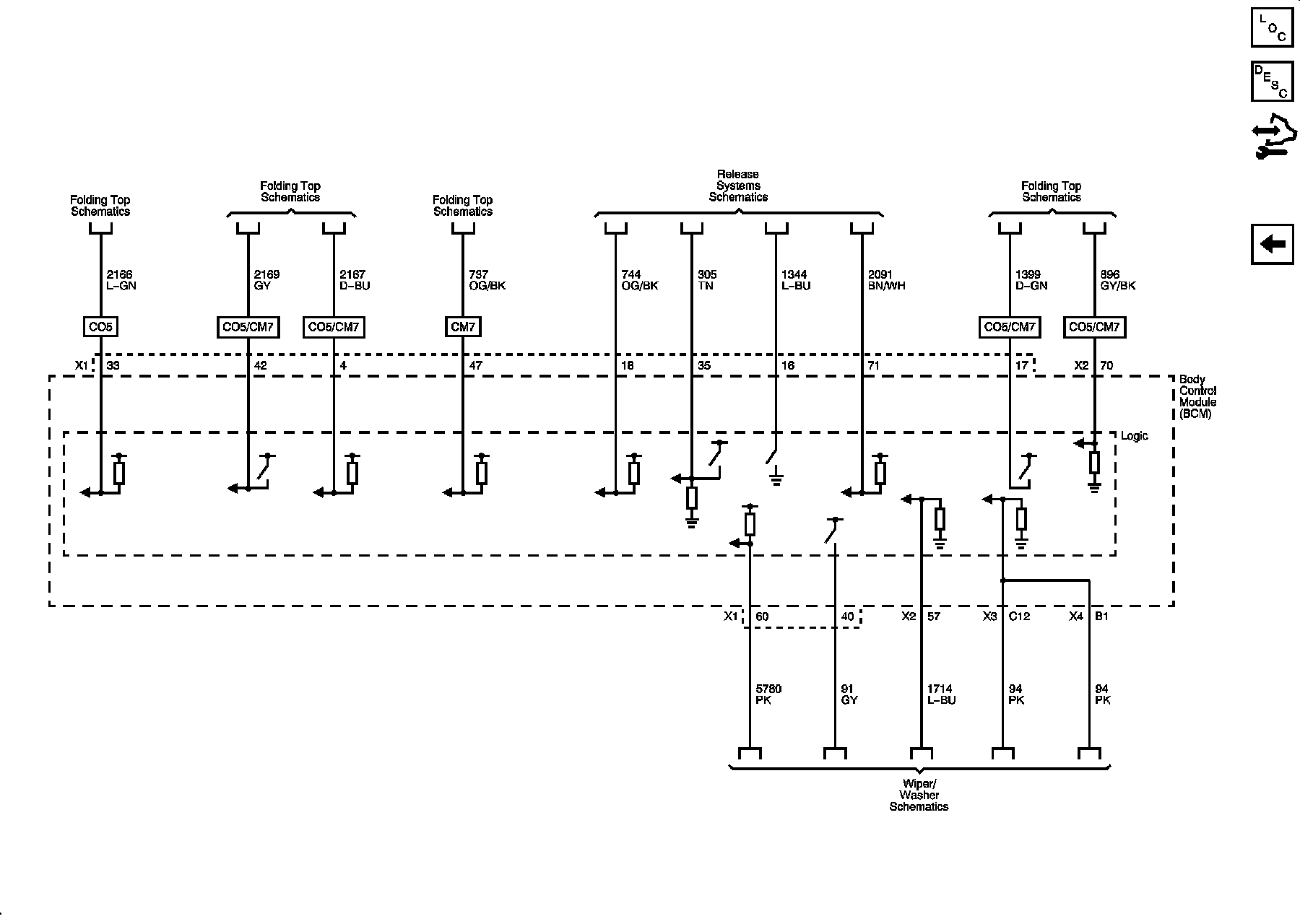

Subsystem References (2 of 2)
