Harness Locations




Harness Routing Views

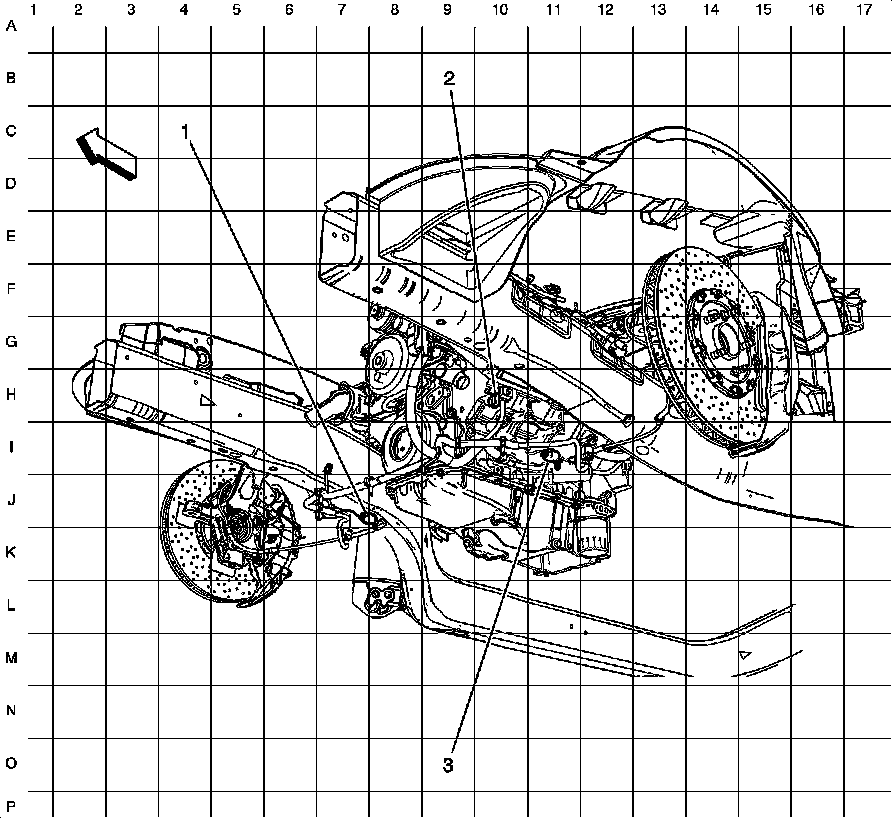

Engine Harness Routing- Lower Front (LS9)





1 - X163

2 - Knock Sensor (KS) 1

3 - X159
