Brake Rotor/Disc

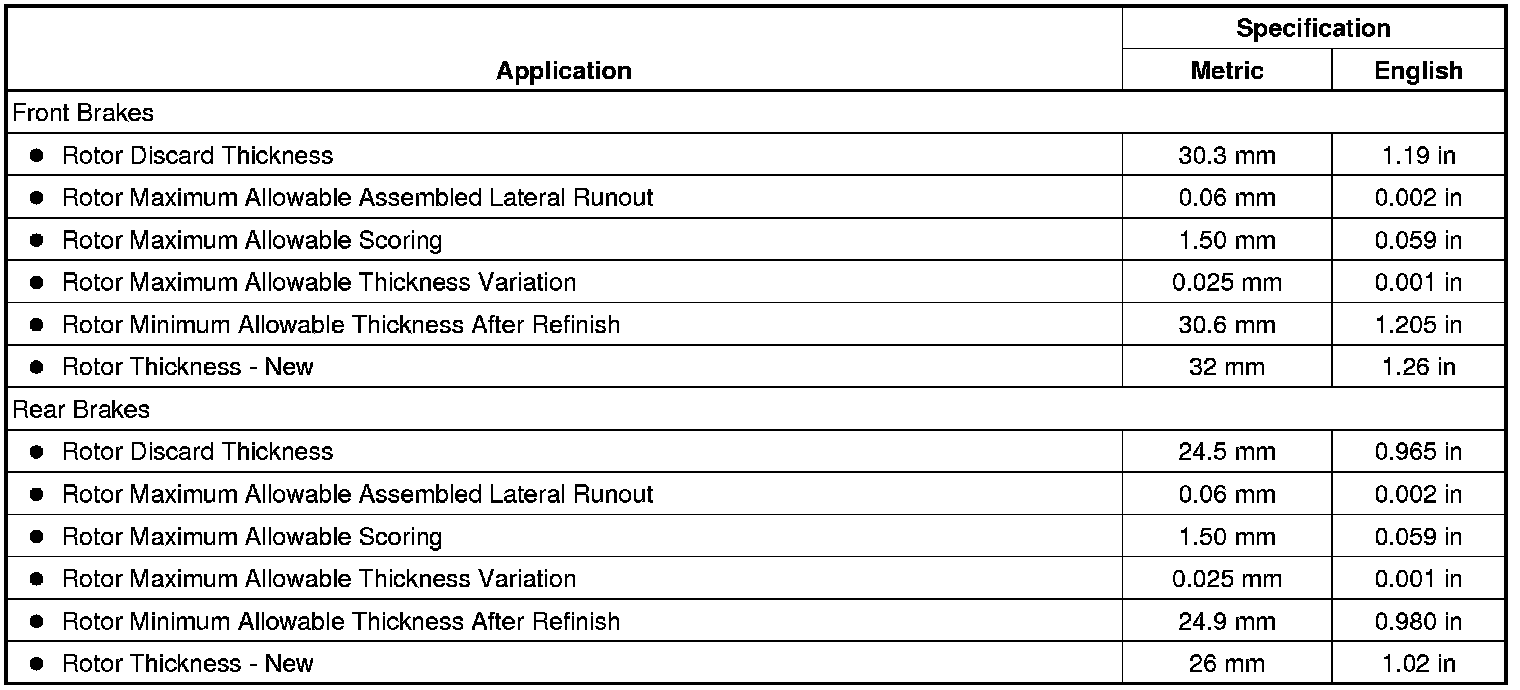

Disc Brake Component Specifications (JL9, J55, J56)

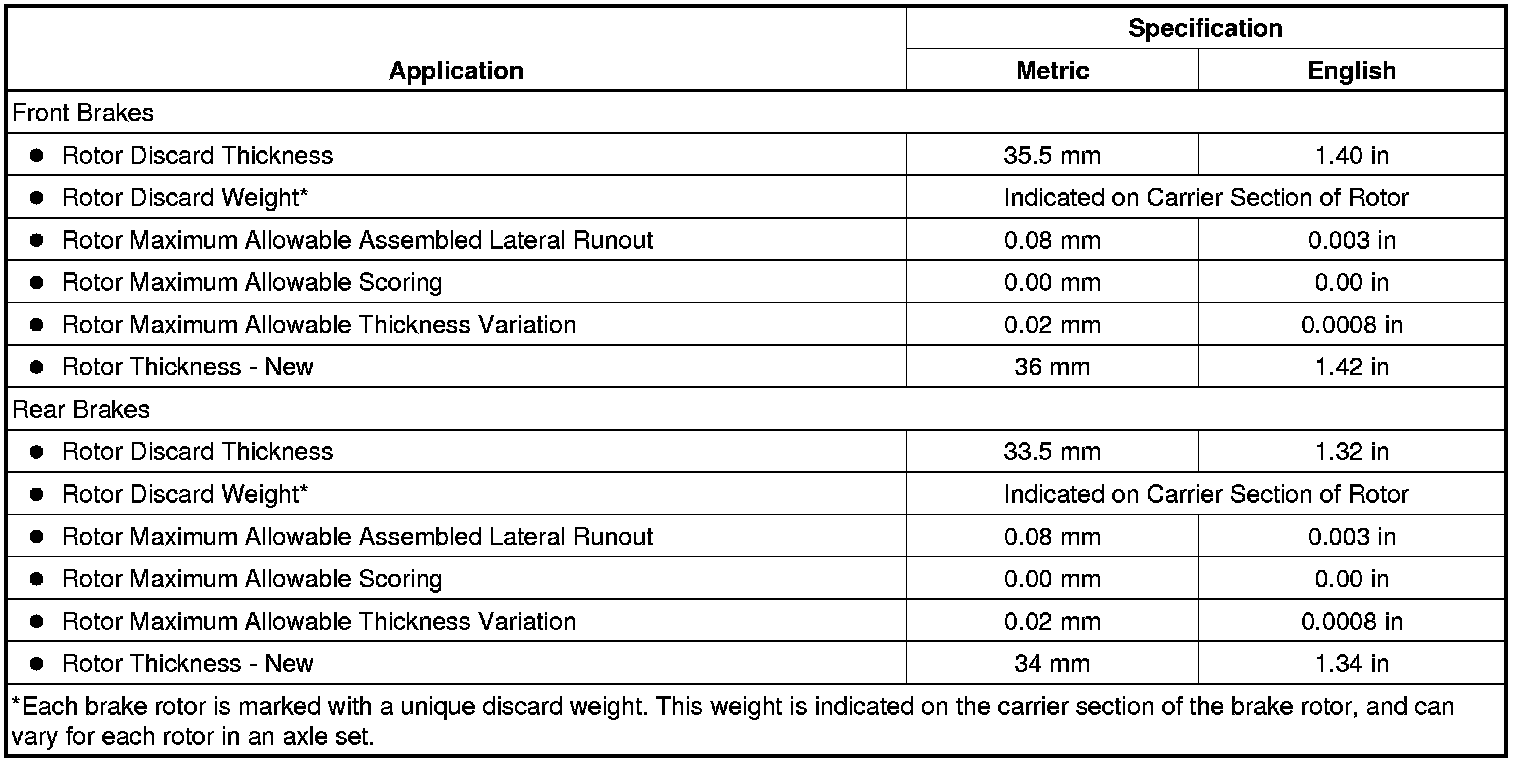

Disc Brake Component Specifications (J57)
