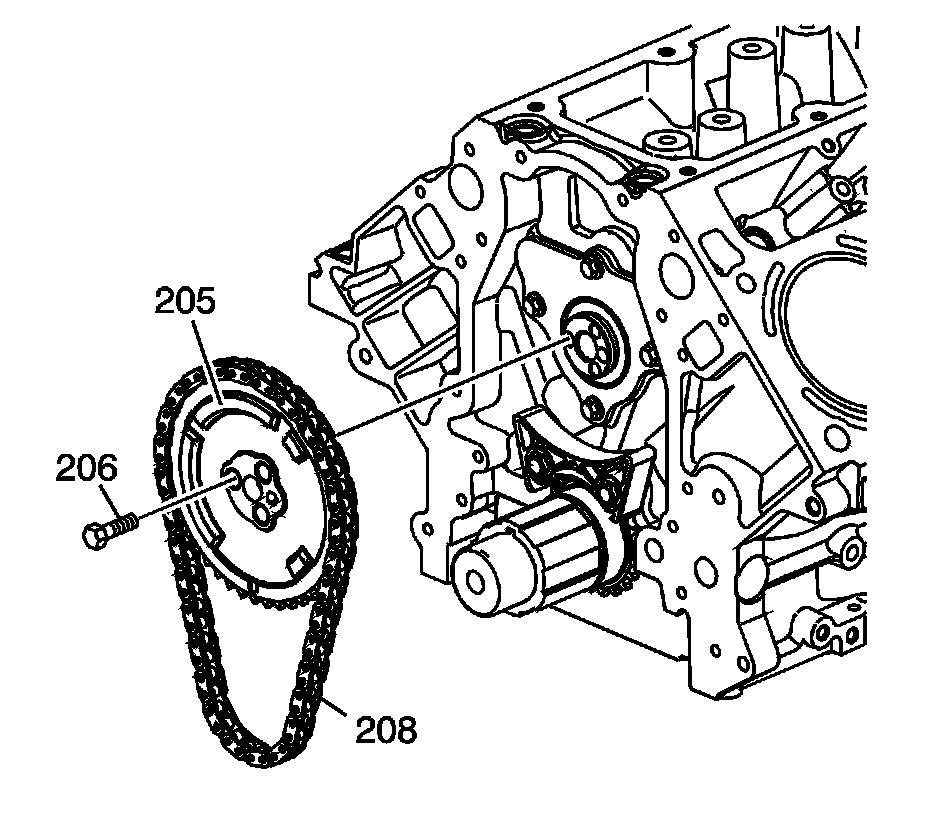

Camshaft Gear/Sprocket








.
Check the alignment of the timing marks.



Torque 30 Nm (22 lb ft)
