Battery: Locations

Luggage Compartment/Rear of Vehicle Component Views

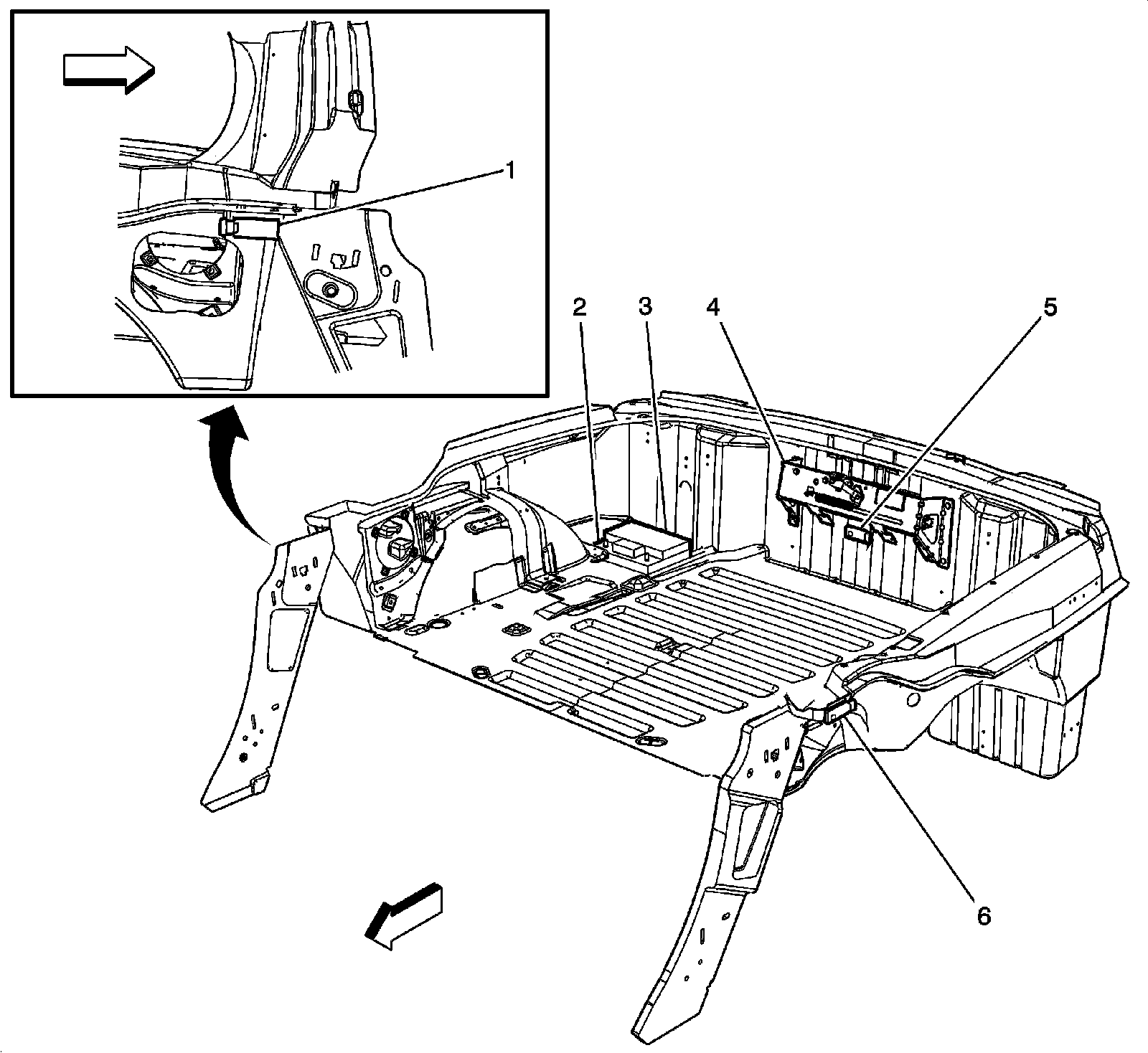

Rear Compartment Keyless Entry Components





1 - Keyless Entry Antenna- Right

2 - Inline Fuse Holder (LS9)

3 - Battery (LS7 or LS9 or LS3 with Z52)

4 - Rear Compartment Lid Latch

5 - Keyless Entry Antenna- Rear Compartment

6 - Keyless Entry Antenna- Left
