Structure Identification

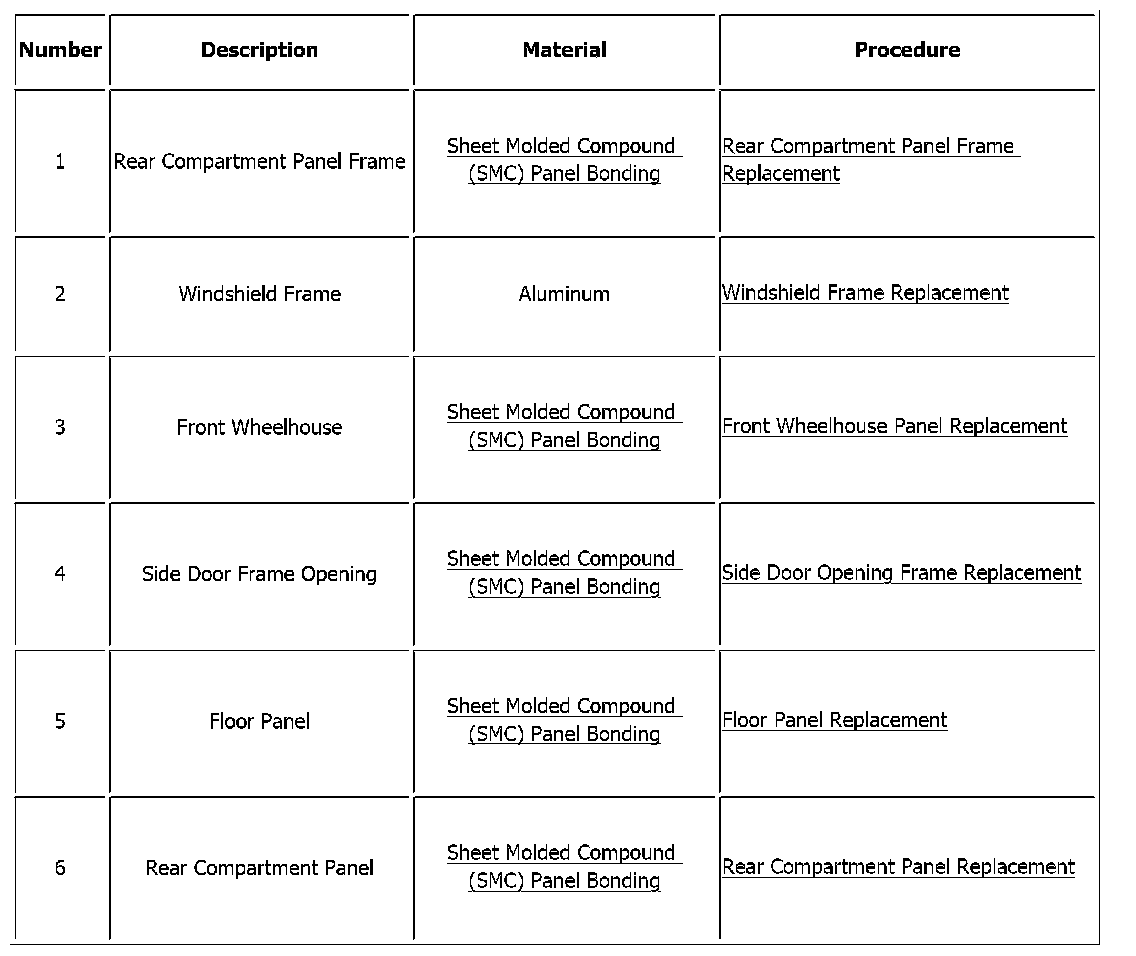

Inner Panel Identification







Structure Identification (Corvette)

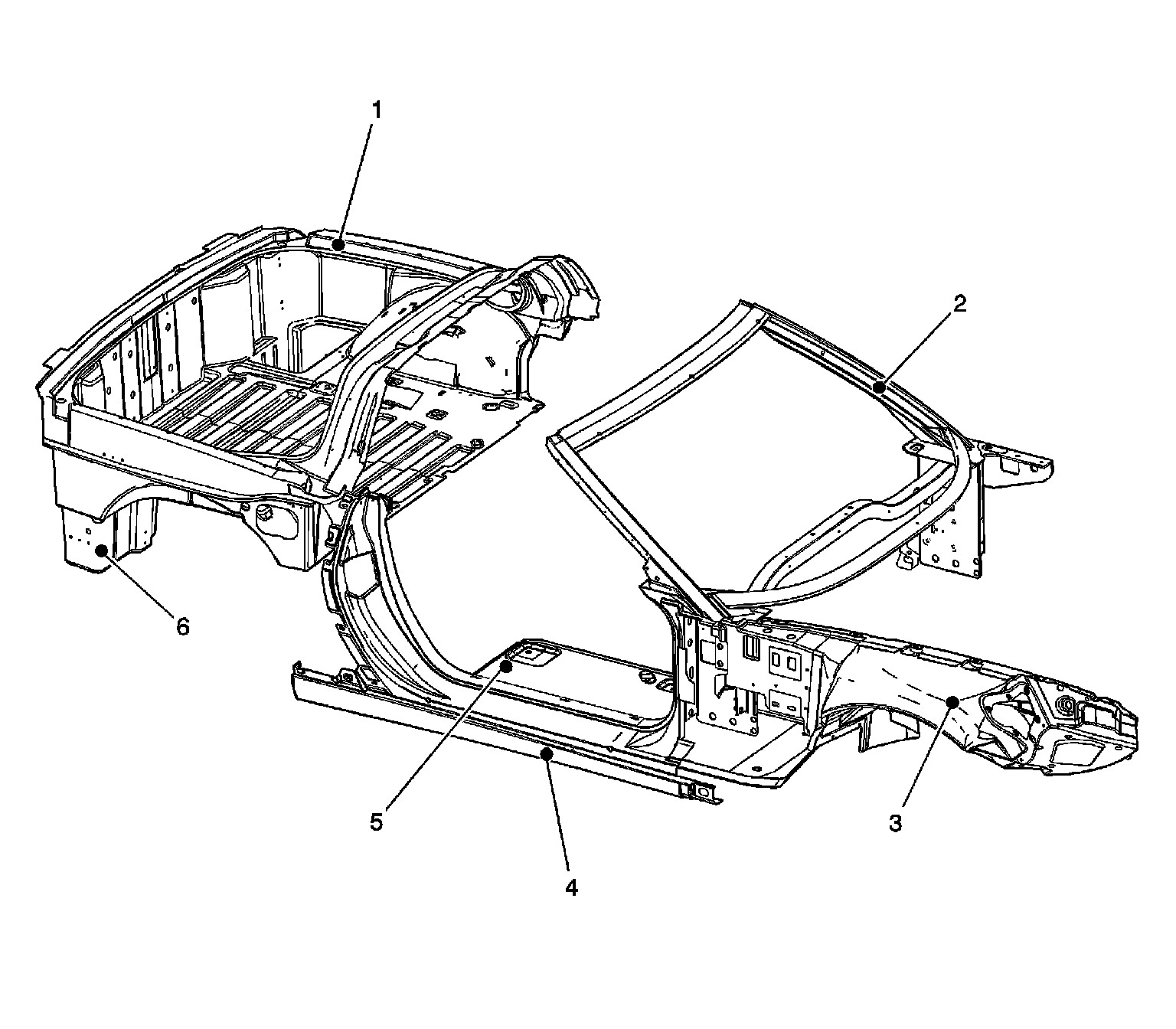

Figure 1: Inner Panel Identification
