Memory Seat Module - Driver X3 (AAB)

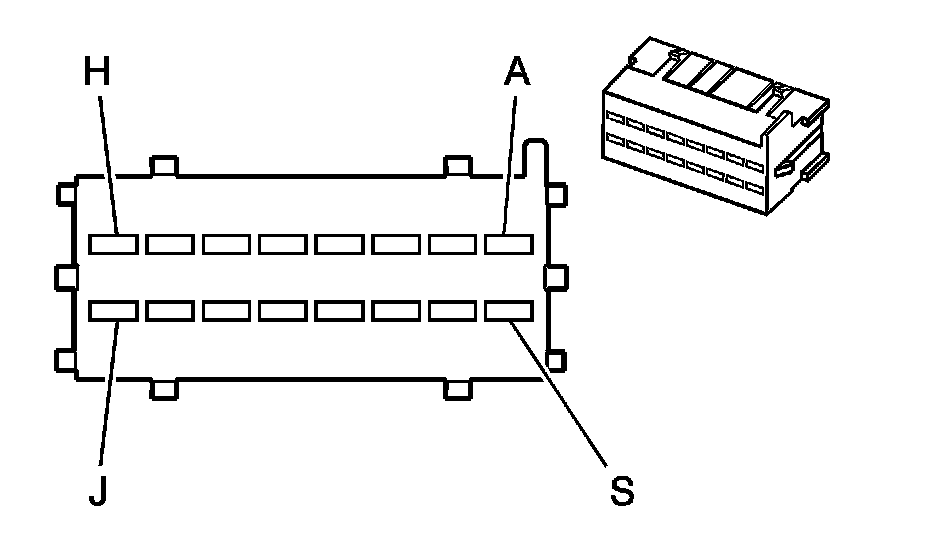

Component Connector End Views

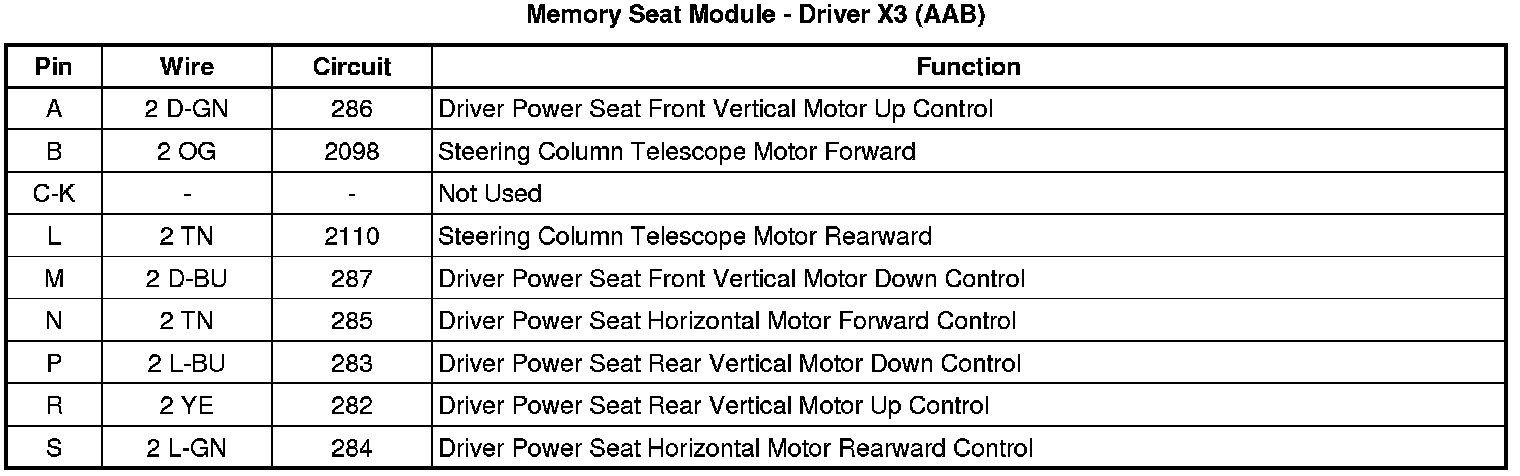

Memory Seat Module - Driver X3 (AAB)
