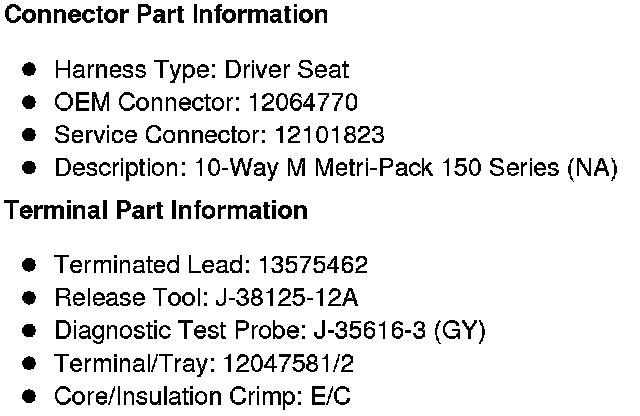

Seat Lumbar Pump/Control Module - Driver

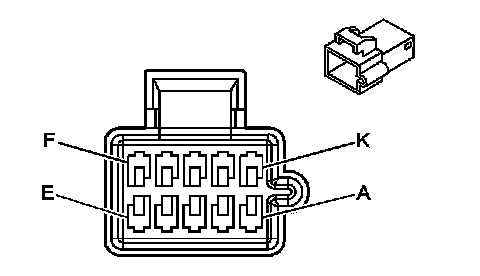

Component Connector End Views

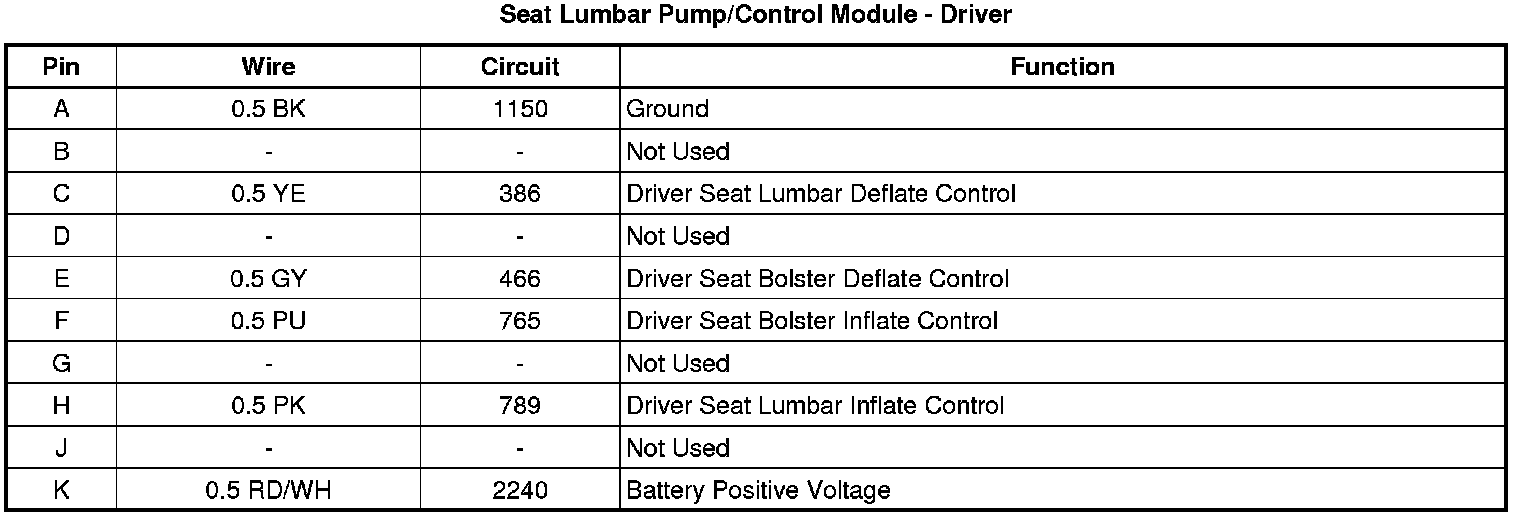

Seat Lumbar Pump/Control Module - Driver
