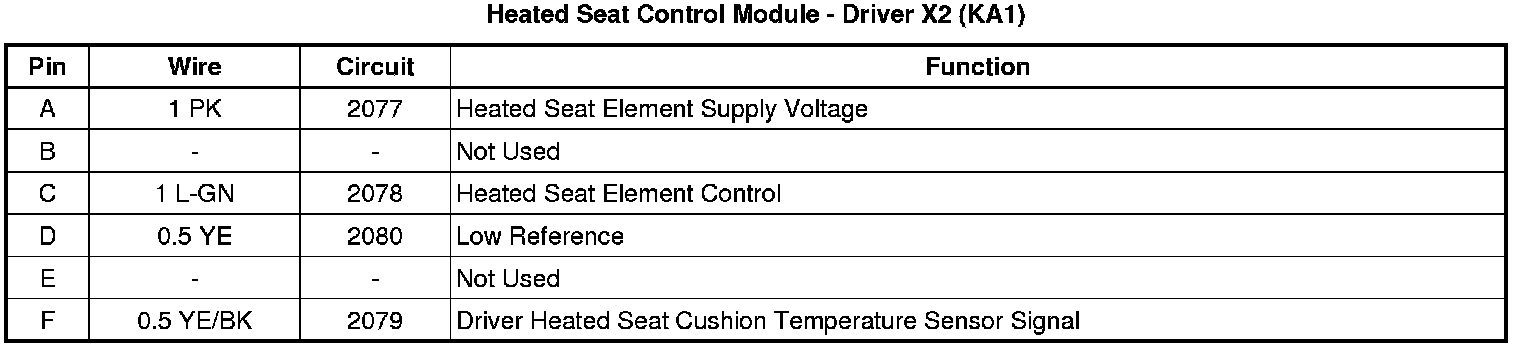

Heated Seat Control Module - Driver X2 (KA1)

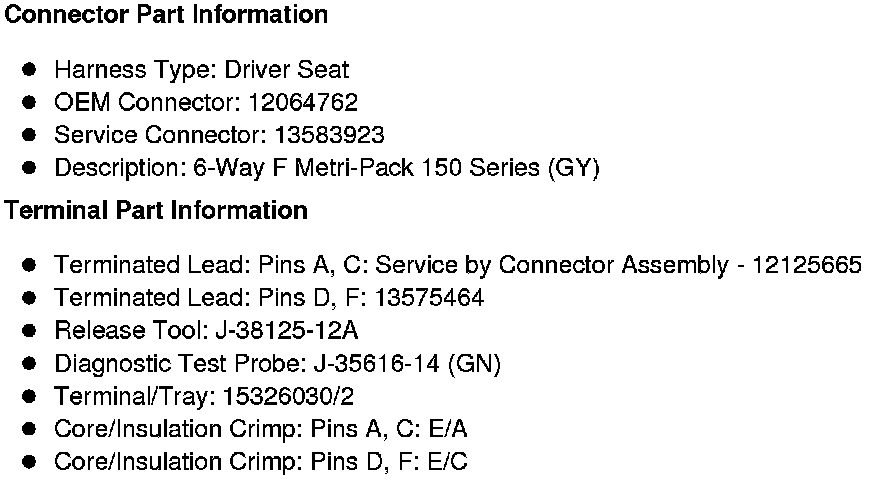

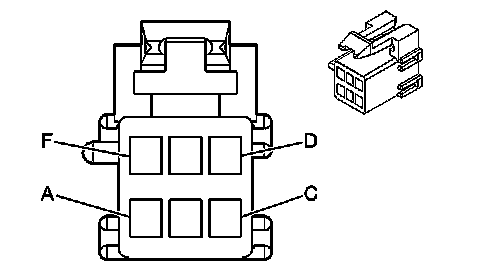

Component Connector End Views
Heated Seat Control Module - Driver X2 (KA1)
