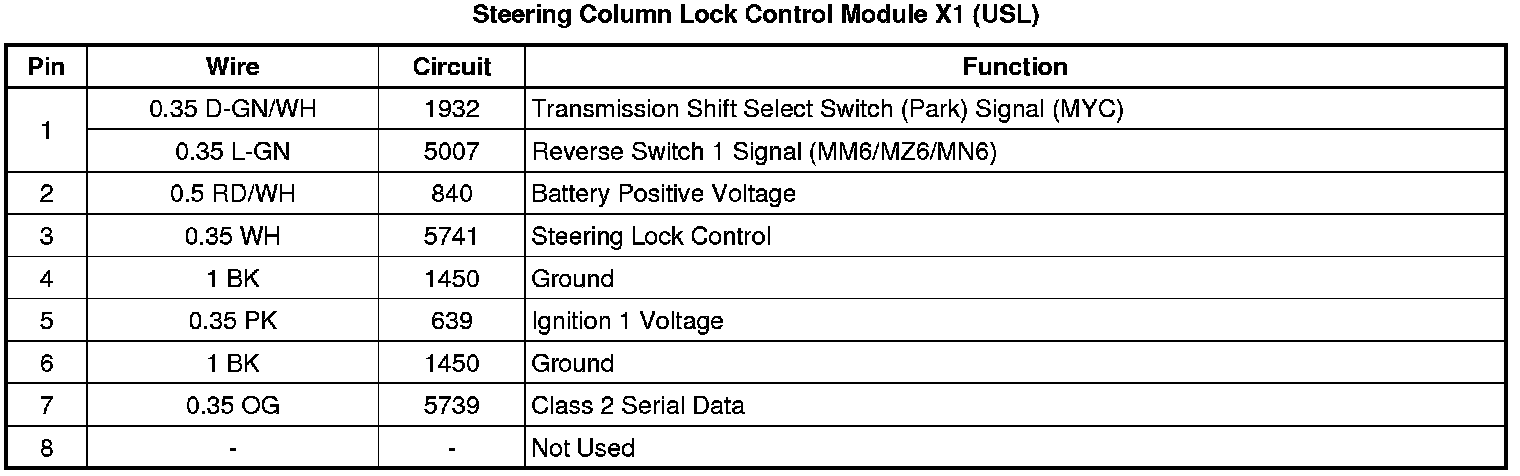

Steering Column Lock Control Module X1 (USL)

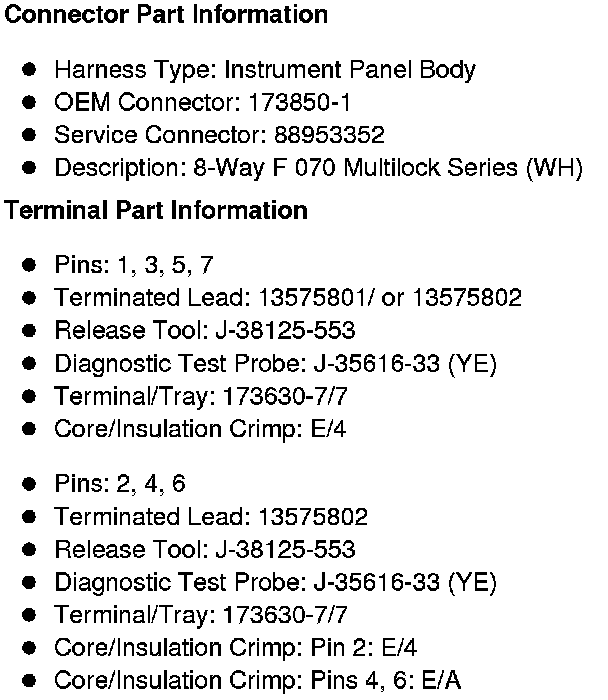

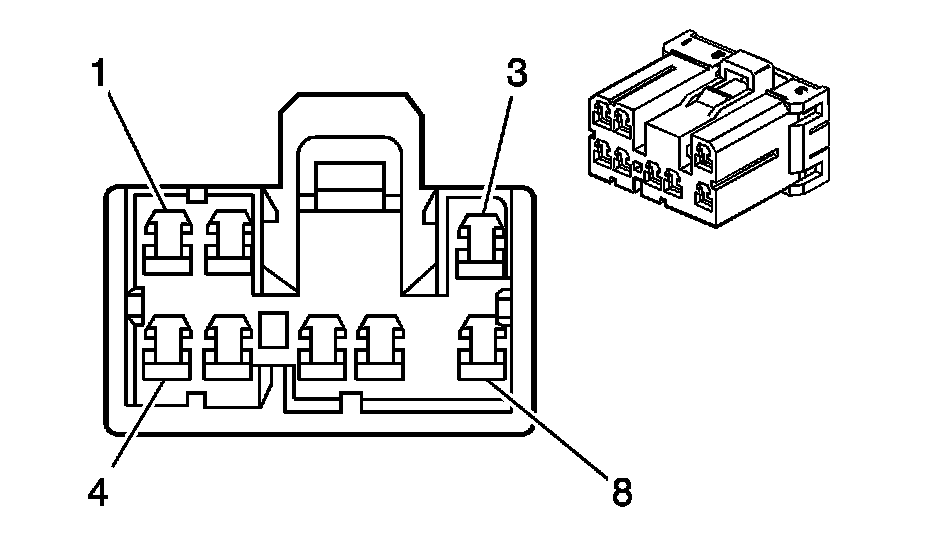

Component Connector End Views
Steering Column Lock
Control Module
X1 (USL)
