Behind the Instrument Panel Components- HVAC Module

Instrument Panel/Center Console Component Views

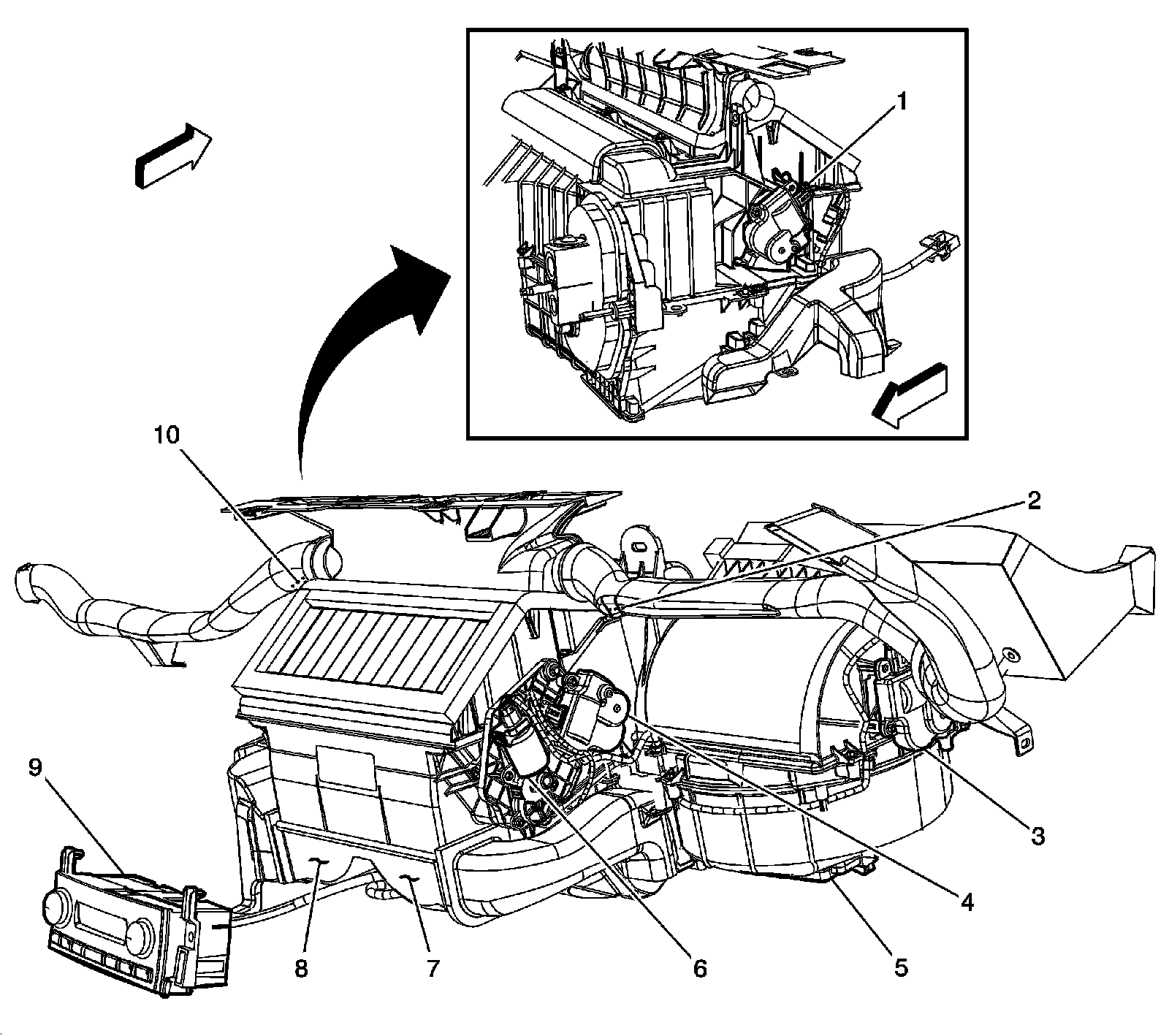

Behind the Instrument Panel Components- HVAC Module





1 - Air Temperature Actuator- Left

2 - Air Temperature Sensor- Upper Right

3 - Recirculation Actuator

4 - Air Temperature Actuator- Right

5 - Blower Motor and Blower Motor Control Module

6 - Mode Actuator

7 - Air Temperature Sensor- Lower Right

8 - Air Temperature Sensor- Lower Left

9 - HVAC Control Module

10 - Air Temperature Sensor- Upper Left
