Air Flow Meter/Sensor: Service and Repair

Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

Removal Procedure

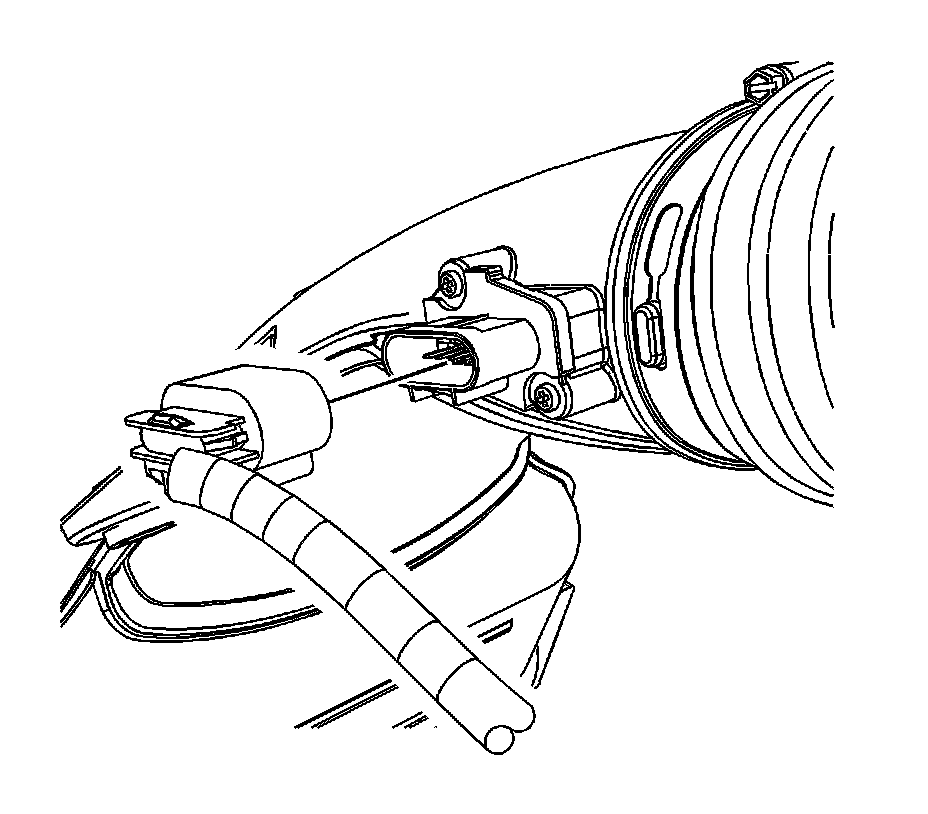

1. Disconnect the mass air flow (MAF)/air intake temperature (IAT) sensor electrical connector.

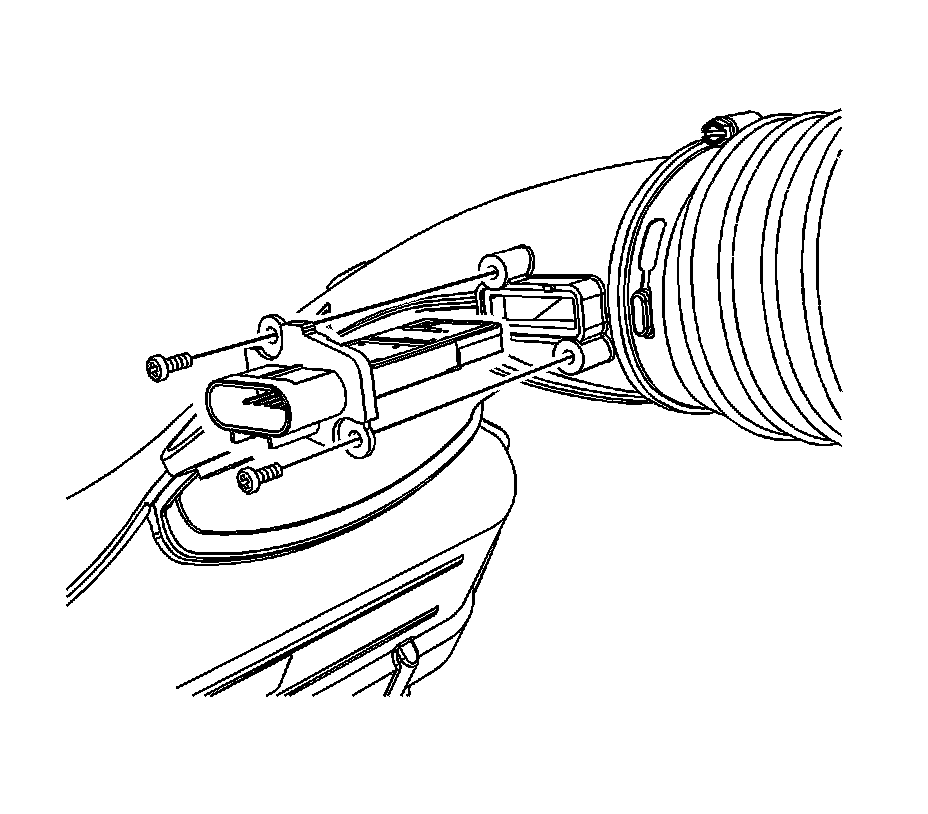

2. Remove the 2 screws and the MAF/IAT sensor from the air cleaner housing.

Installation Procedure





1. Install the MAF/IAT sensor and the 2 screws to in the air cleaner housing.





2. Connect the MAF/IAT sensor electrical connector.
