Harness Locations

Harness Routing Views

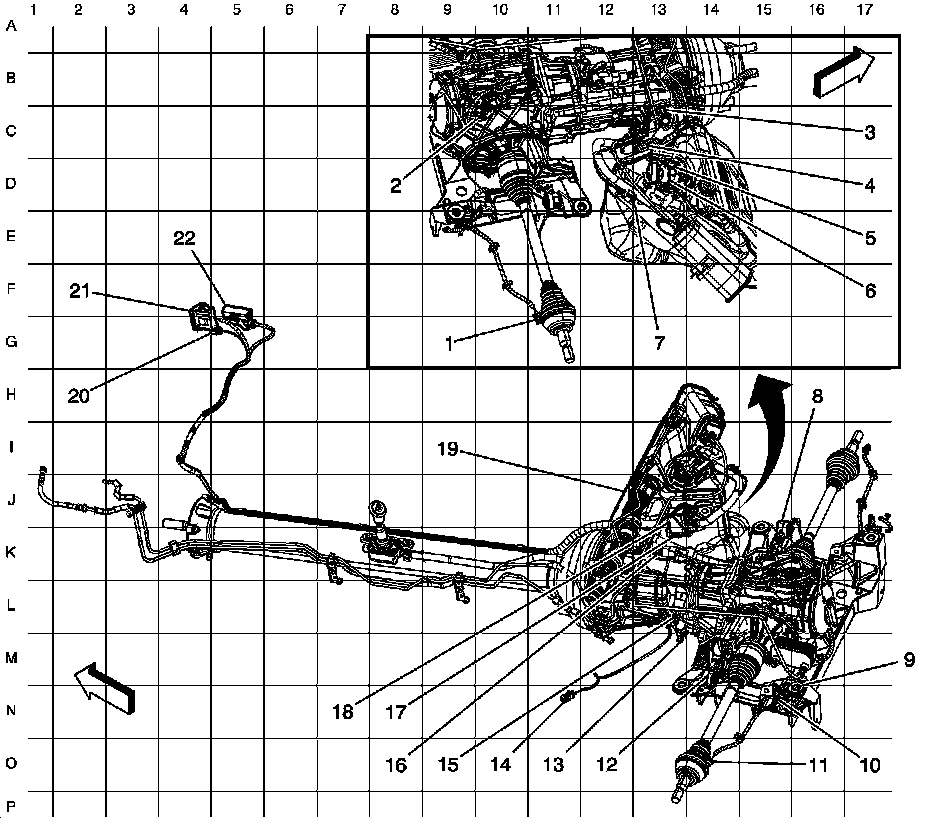

Manual Transmission and Fuel Tank Harness Routing (1 of 2)





1 - Wheel Speed Sensor (WSS) - Right Rear

2 - Vehicle Speed Sensor (VSS) (MN6)

3 - Backup Lamp Switch (MN6)

4 - X420

5 - Fuel Tank Pressure (FTP) Sensor

6 - Fuel Level Sensor - Secondary

7 - X460

8 - Suspension Position Sensor - Right Rear (FE2)

9 - G401

10 - X439 (F55)

11 - Wheel Speed Sensor (WSS) - Left Rear

12 - Suspension Position Sensor - Left Rear (FE2)

13 - Manual Transmission Fluid Temperature Sensor (MN6)

14 - X459

15 - Skip Shift Solenoid (MN6)

16 - Reverse Lockout Solenoid (MN6)

17 - X460

18 - Fuel Pump

19 - Fuel Pump and Sender Assembly - Secondary

20 - X168

21 - X184

22 - Suspension Control Module (F55) Connector
