Folding Top Control Module X2 (CM7)

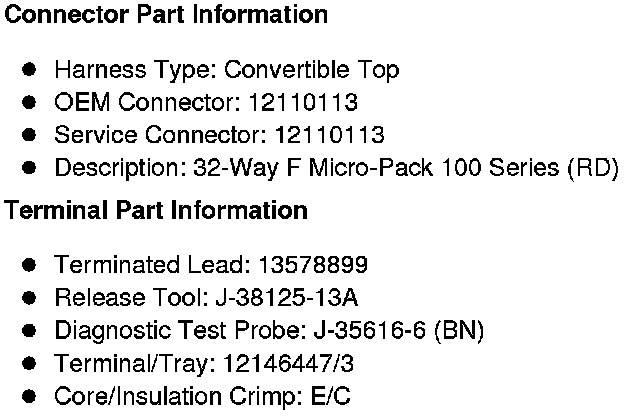

Component Connector End Views

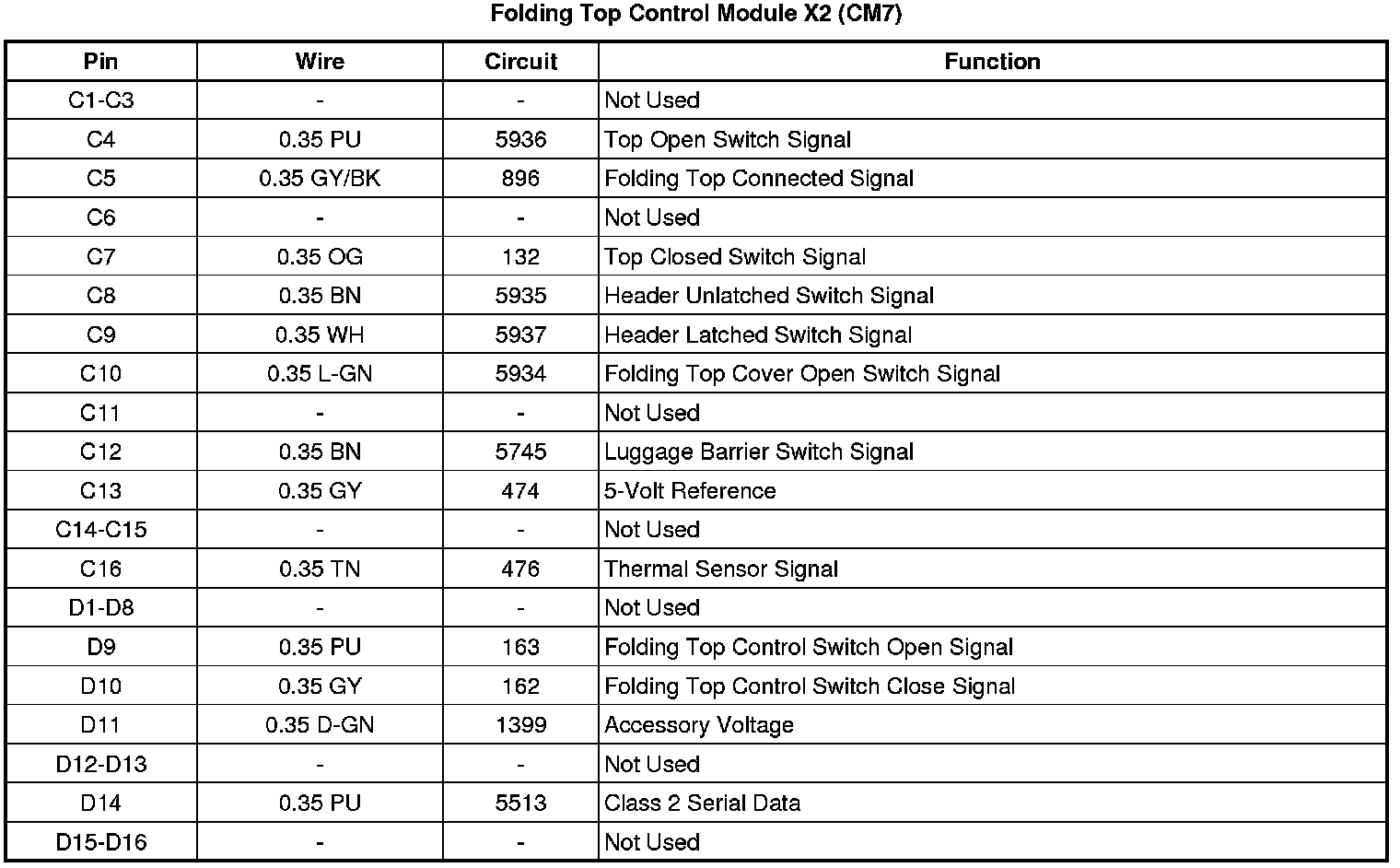

Folding Top Control Module X2 (CM7)
