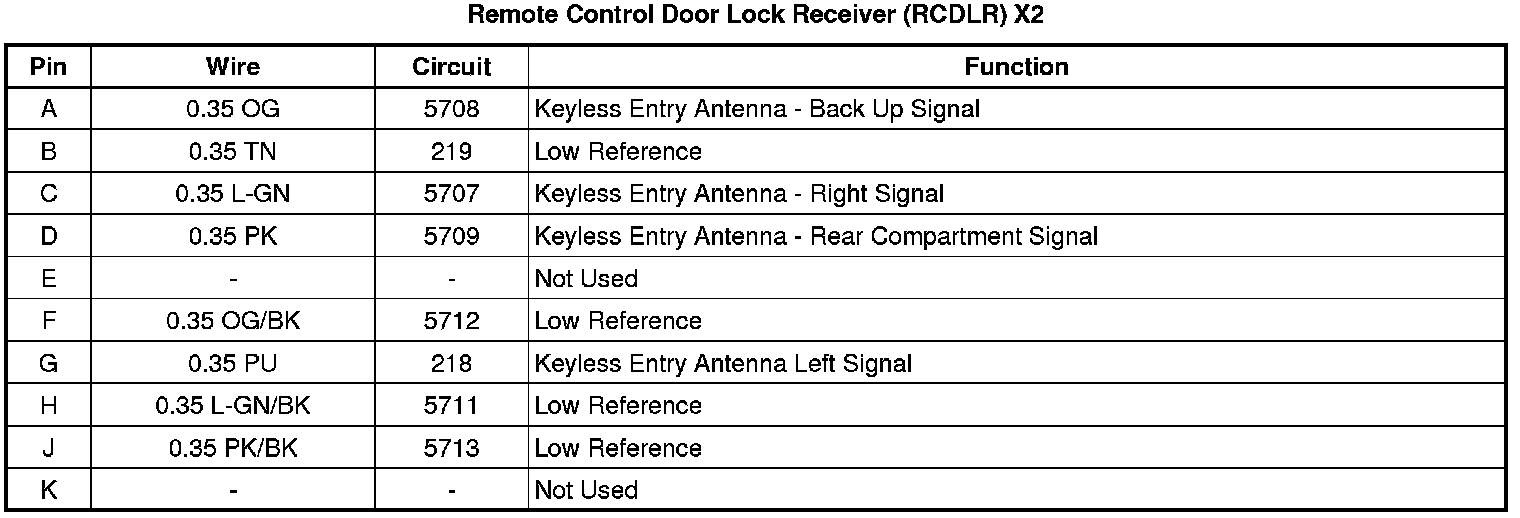

Remote Control Door Lock Receiver (RCDLR) X2

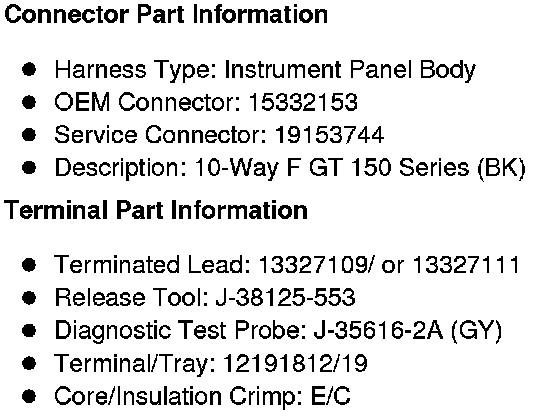

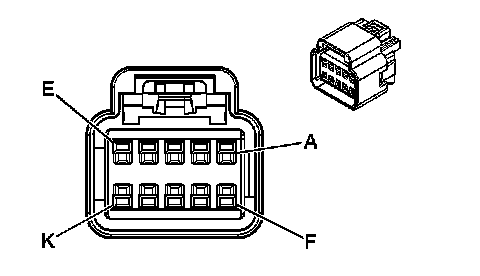

Component Connector End Views
Remote Control Door Lock Receiver (RCDLR) X2
