Left Side of Engine Components

Powertrain Component Views

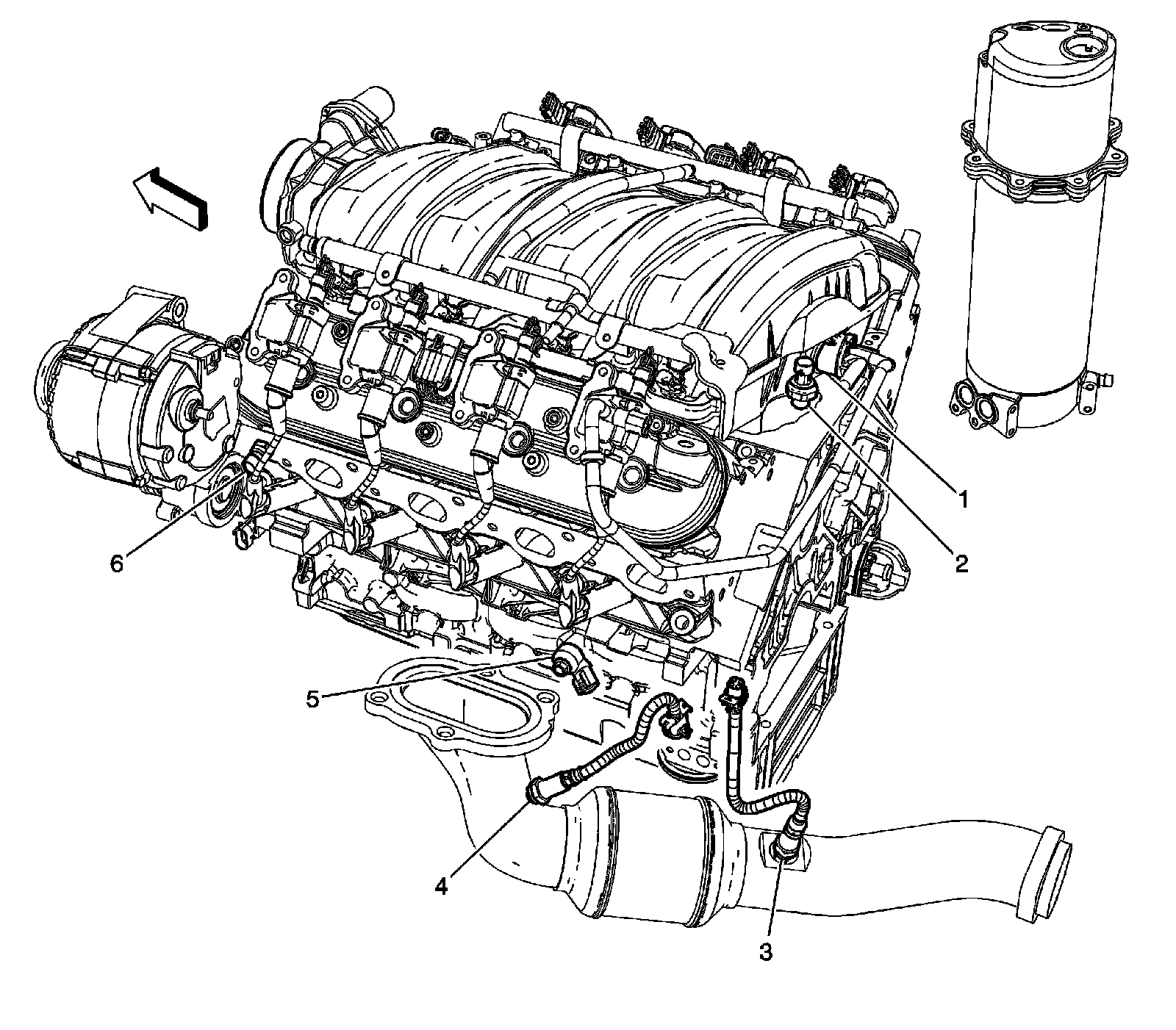

Left Side of Engine Components (LS7)





1 - Manifold Intake Check Valve

2 - Engine Oil Pressure (EOP) Sensor

3 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2

4 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1

5 - Knock Sensor (KS) 1

6 - Engine Coolant Temperature (ECT) Sensor
