Right Side of Engine Components

Powertrain Component Views

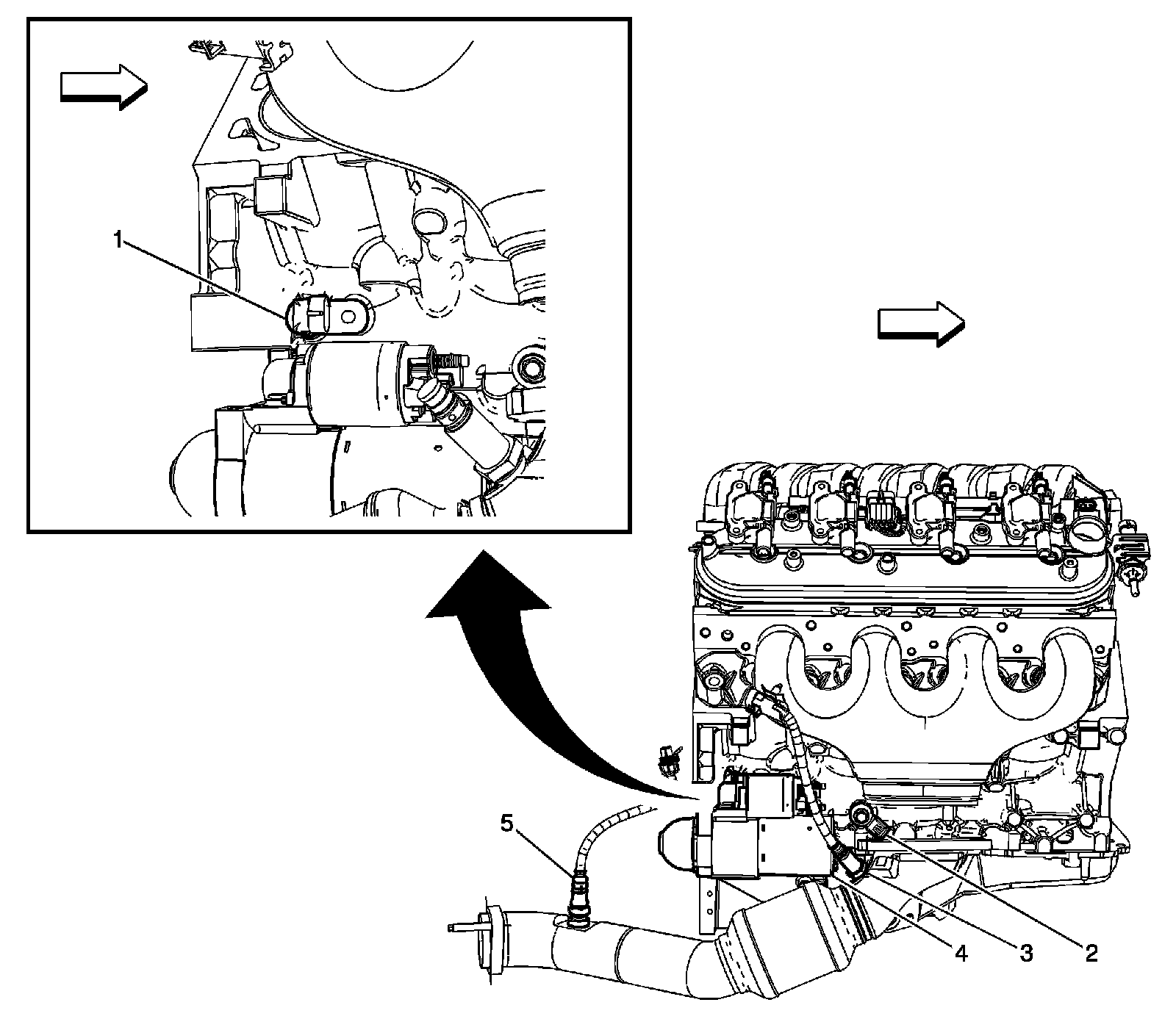

Right Side of Engine Components (LS7)





1 - Crankshaft Position (CKP) Sensor

2 - Knock Sensor (KS) 2

3 - Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1

4 - Starter Motor

5 - Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2
