Automatic Transmission Harness Routing

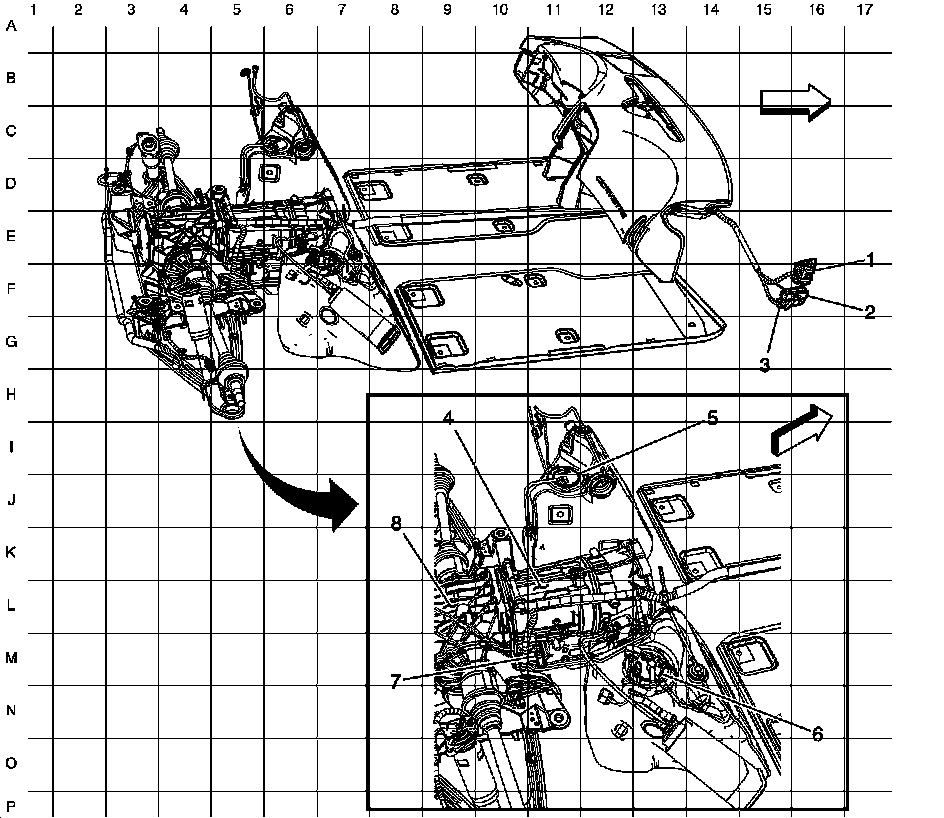

Harness Routing Views

Automatic Transmission Harness Routing





1 - X184

2 - Suspension Control Module (F55) Connector

3 - X168 (LS3 with F55)

4 - Automatic Transmission (MYC)

5 - Fuel Pump and Sender Assembly - Primary

6 - Fuel Level Sensor - Secondary

7 - Control Solenoid Valve Assembly (MYC) Connector

8 - Differential Carrier
