Engine Harness Routing - Left Front

Harness Routing Views

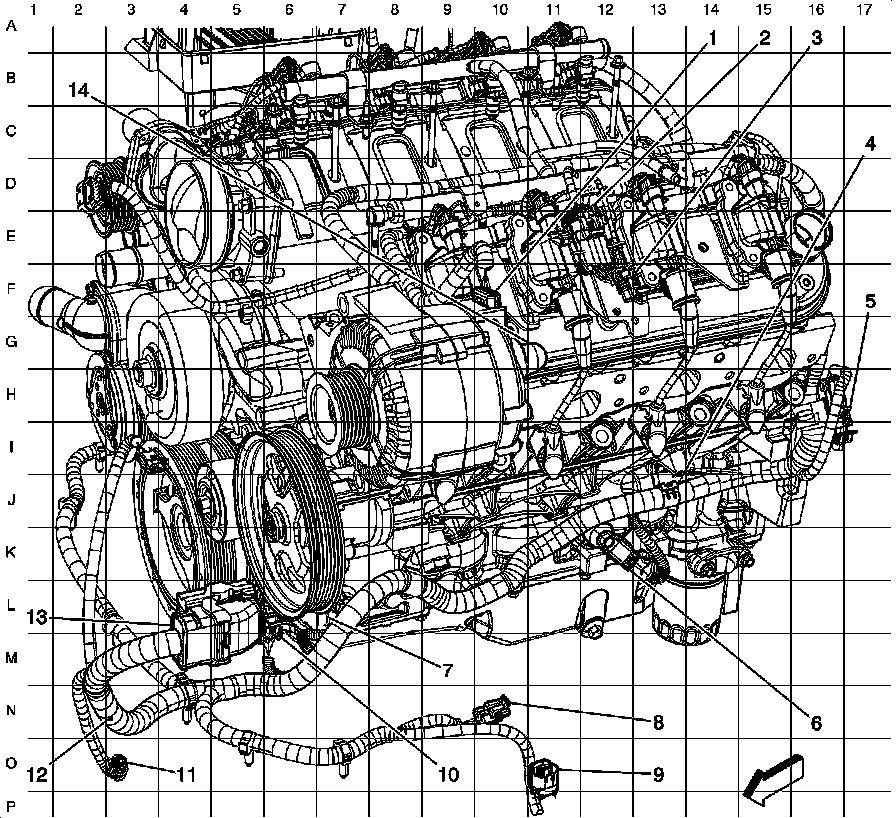

Engine Harness Routing - Left Front (LS3 or LS7)





1 - Generator X1

2 - X140

3 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 Connector

4 - G107

5 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2 Connector

6 - Knock Sensor (KS) 1

7 - G105

8 - X159

9 - Suspension Position Sensor - Left Front (FE2) Connector

10 - X103

11 - Variable Effort Steering Actuator Connector

12 - J195

13 - Electronic Brake Control Module (EBCM) Connector

14 - Generator X2
