Charge Air Bypass Regulator Solenoid Valve Replacement

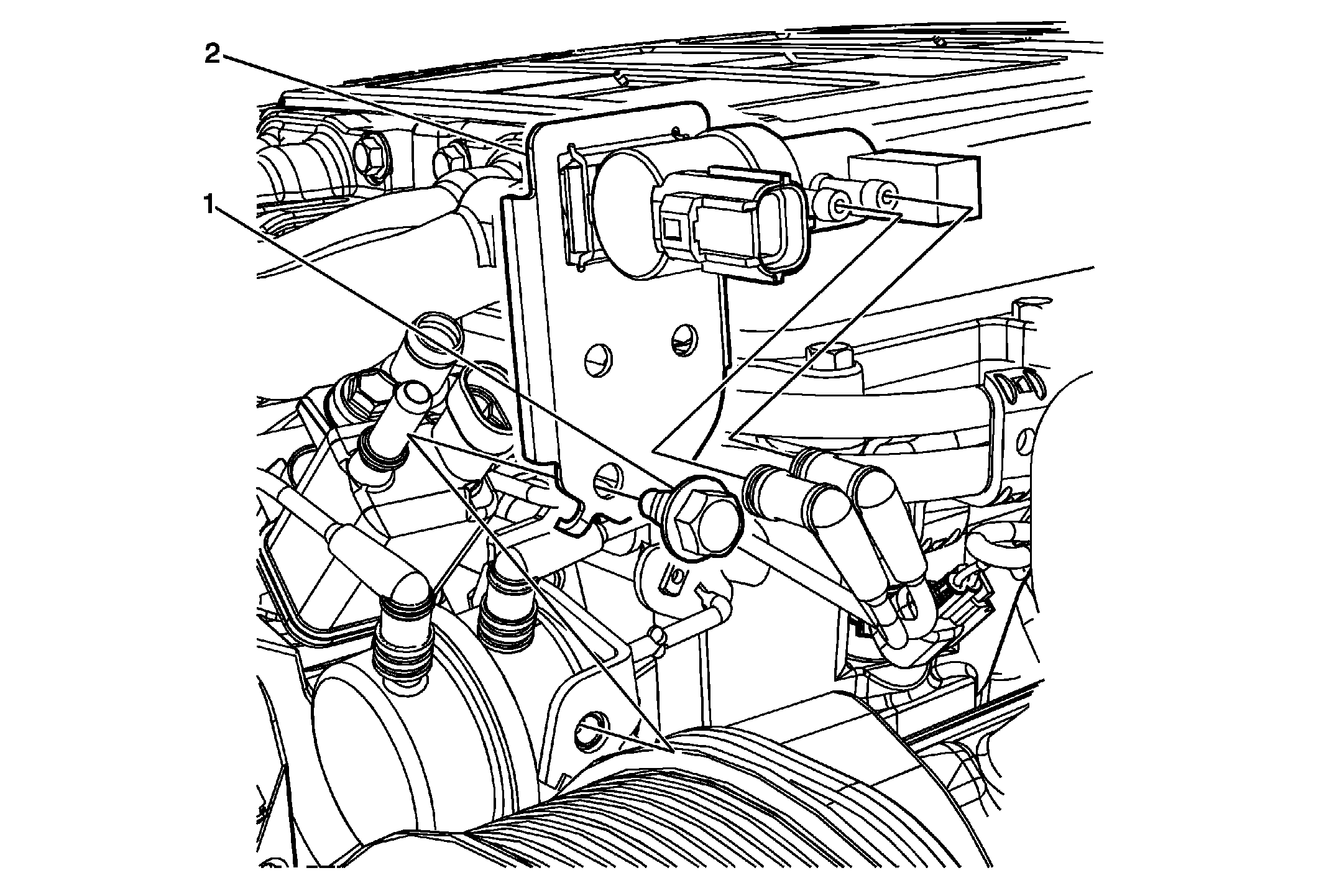

Fig 1: View Of Charge Air Bypass Regulator Solenoid Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the upper intake cover. Refer to Upper Intake Manifold Sight Shield Replacement (6.2L LS9 - With Supercharger) , Upper Intake Manifold Sight Shield Replacement (w/o LS9) .
1	Charge Air Bypass Regulator Solenoid Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Charge Air Bypass Regulator Solenoid Procedure Disconnect the harness connector. Disconnect the vacuum tubes from the charge air bypass regulator solenoid.

Callout

Component Name

Charge Air Bypass Regulator Solenoid Fastener

CAUTION:

Tighten
10 N.m (89 lb in)

Charge Air Bypass Regulator Solenoid

Procedure
