Removal Procedure

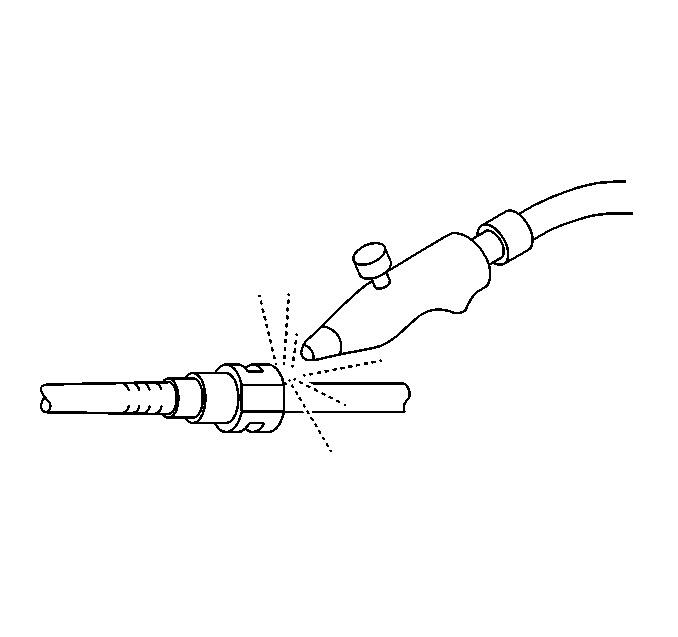

Fig 1: Blowing Dirt Out Of Fitting (Plastic Collar)

Courtesy of GENERAL MOTORS COMPANY

Relieve the fuel system pressure before servicing any fuel system connection. Refer to the Fuel Pressure Relief (Without CH 48027) , Fuel Pressure Relief (CH 48027) .

WARNING:

Wear safety glasses when using compressed air in order to prevent eye injury.

Using compressed air, blow any dirt out of the quick-connect fitting.

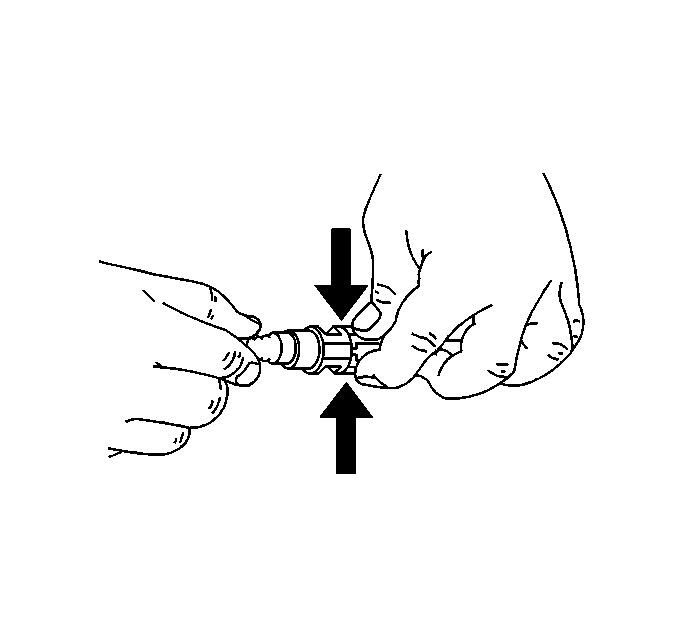

Fig 2: View Of Quick Connect Fitting Release Tabs (Plastic Collar)

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Plastic quick connect fittings can be released either by squeezing the plastic retainer release tabs (step 3) or by using the appropriate J 37088-A Fuel Line Disconnect Tool Set (step 4).

Squeeze the plastic retainer release tabs.

Fig 3: View Of Quick Connect Locking Tabs (Metal Collar)

Courtesy of GENERAL MOTORS COMPANY

Choose the correct tool from the J 37088-A Fuel Line Disconnect Tool Set Tool Set for the size of the fitting. Insert the tool into the female connector, then push inward in order to release the locking tabs. The plastic retainer will remain on the female connector.

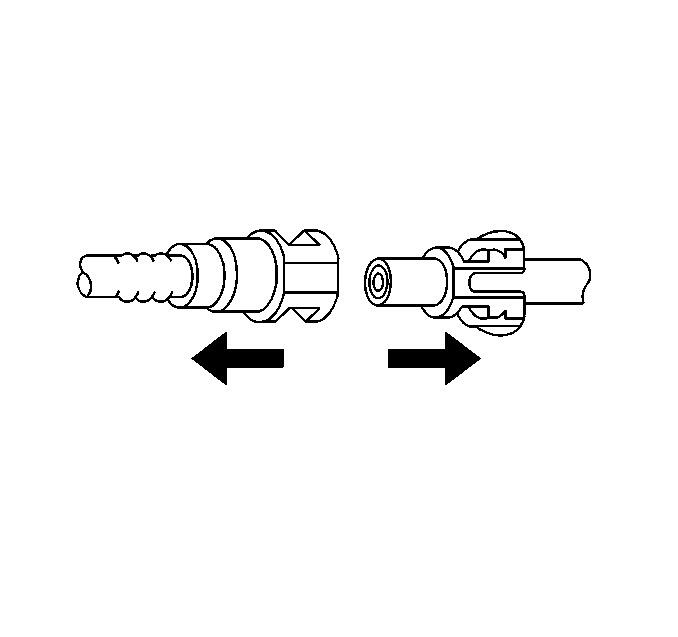

Fig 4: View Of Pulling Connection Apart (Plastic Collar)

Courtesy of GENERAL MOTORS COMPANY

Pull the connection apart.
