Keyless Entry Receiver: Locations

Passenger Compartment/Roof Component Views

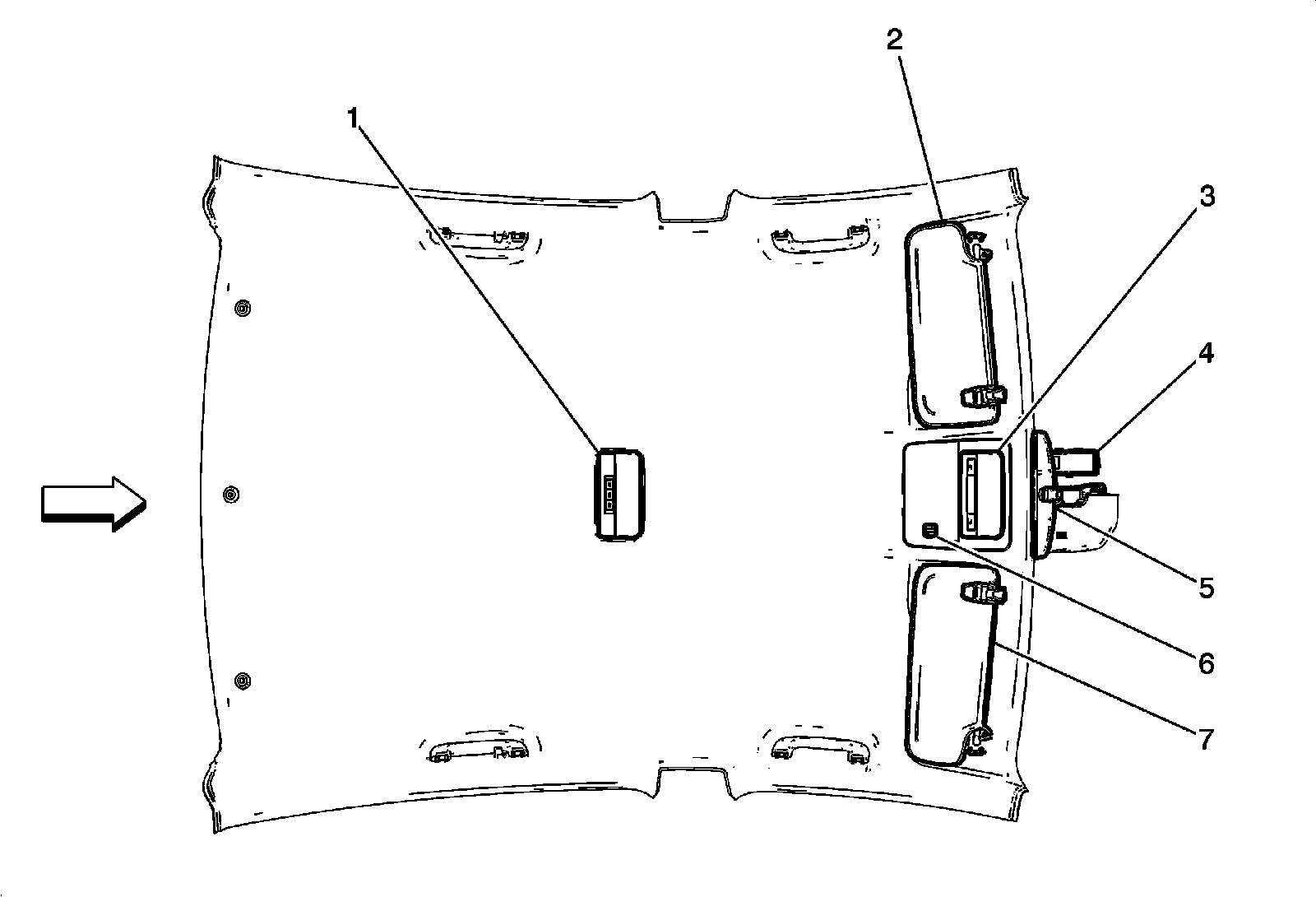

Headliner Components




1 - E37M Dome/Reading Lamps - Middle
2 - A3R Sunshade - Right (D6I)
3 - E37F Dome/Reading Lamps - Front
4 - K77 Remote Control Door Lock Receiver
5 - A10 Inside Rearview Mirror
6 - B24 Cellular Phone Microphone (UE1)
7 - A3L Sunshade - Left (D6I)
