Seat Temperature Control Module: Locations

Passenger Compartment/Roof Component Views

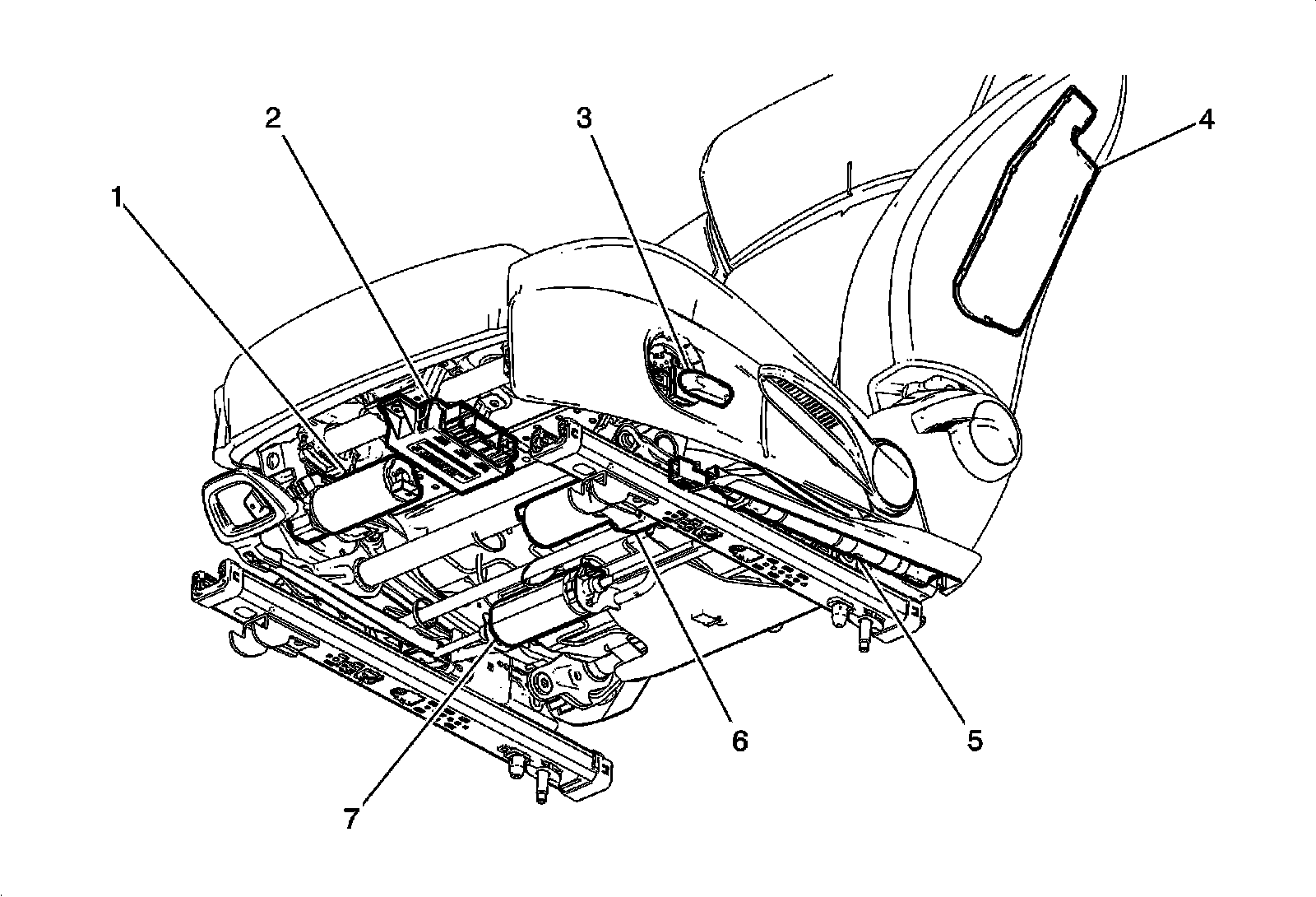

Driver Seat Components (1 of 2)




1 - M50D Seat Front Vertical Motor - Driver (ADS)
2 - K29 Seat Heating Control Module (KA1)
3 - S64D Seat Adjuster Switch - Driver (ADS)
4 - F106D Seat Air Bag - Driver
5 - F113D Seat Belt Anchor Pretensioner - Driver
6 - M55D Seat Rear Vertical Motor - Driver (ADS)
7 - M51D Seat Horizontal Motor - Driver (ADS)
