Disc Brake System: Locations

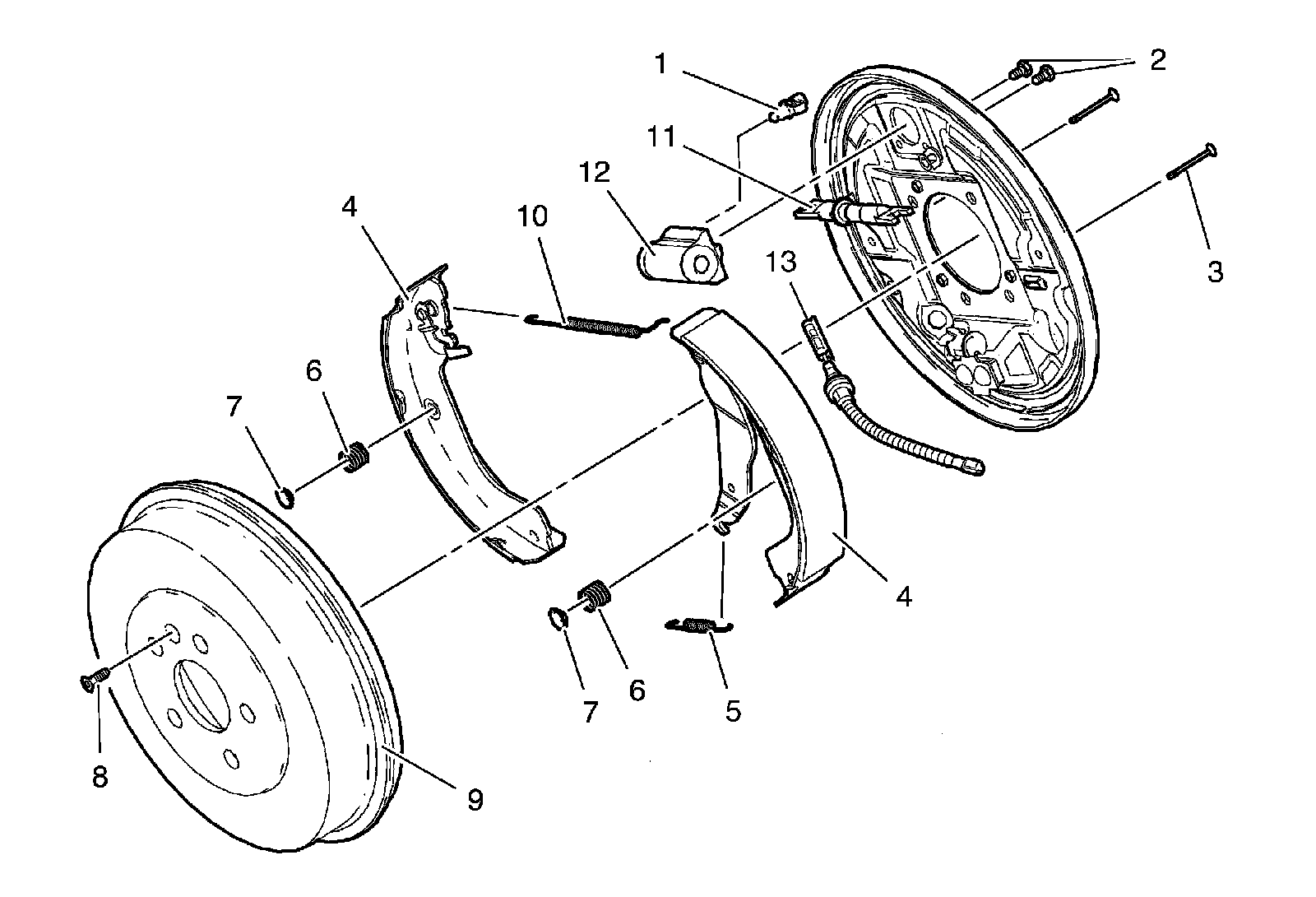

Rear Drum Brakes Component Views




1 - Wheel Cylinder Bleeder Valve
2 - Wheel Cylinder Mounting Bolts
3 - Hold Down Spring Pins
4 - Brake Shoes
5 - Brake Shoe Return Spring
6 - Brake Shoe Hold Down Springs
7 - Brake Shoe Hold Down Spring Caps
8 - Brake Drum Mounting Bolt
9 - Brake Drum
10 - Adjuster Spring
11 - Adjuster Assembly
12 - Wheel Cylinder
13 - Parking Brake Cable
