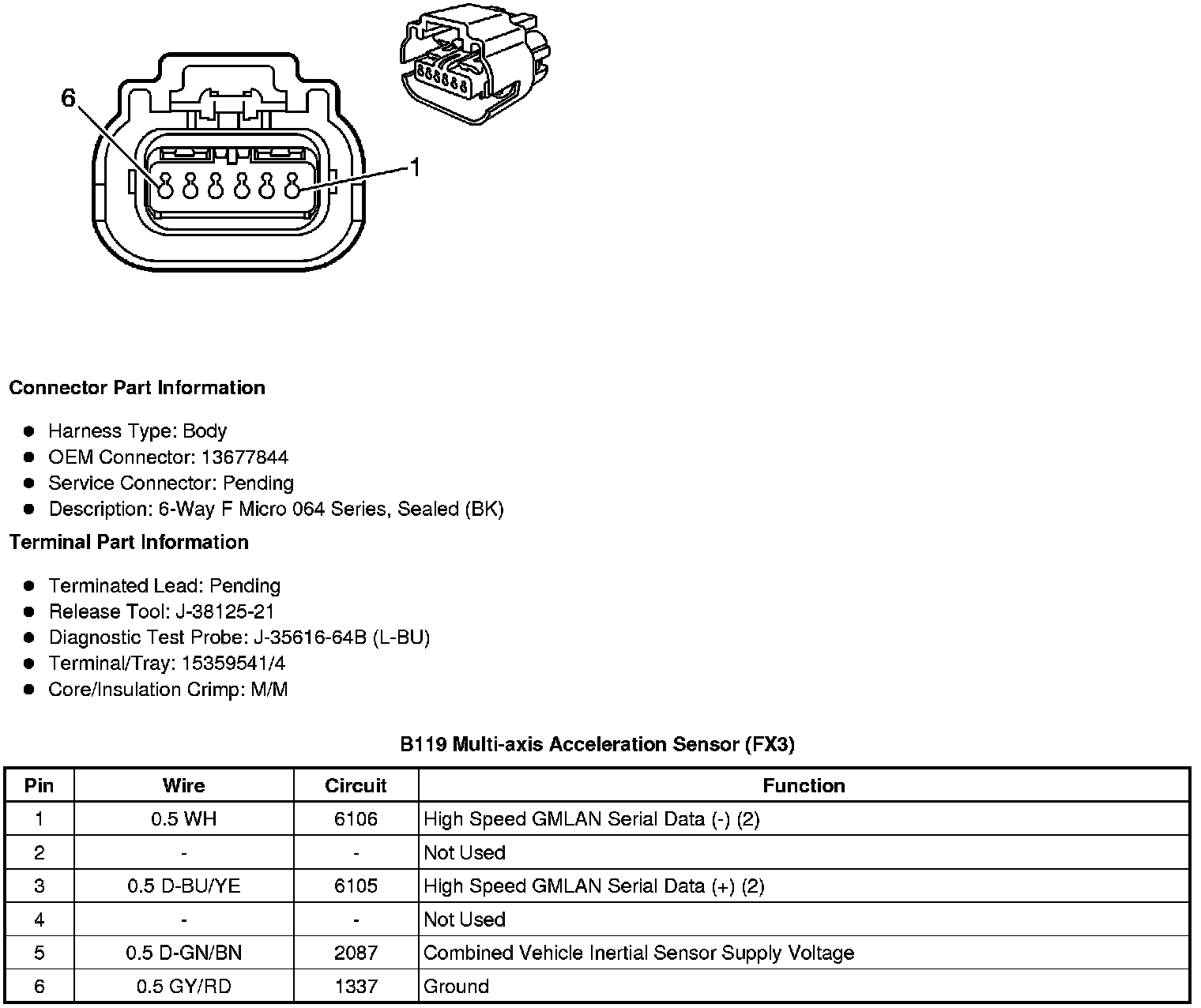

Acceleration Sensor, Suspension Control
Component Connector End Views
B119 Multi-axis
Acceleration Sensor
(FX3)
