Rear Object Sensor - Right Middle (UD7)
Component Connector End Views

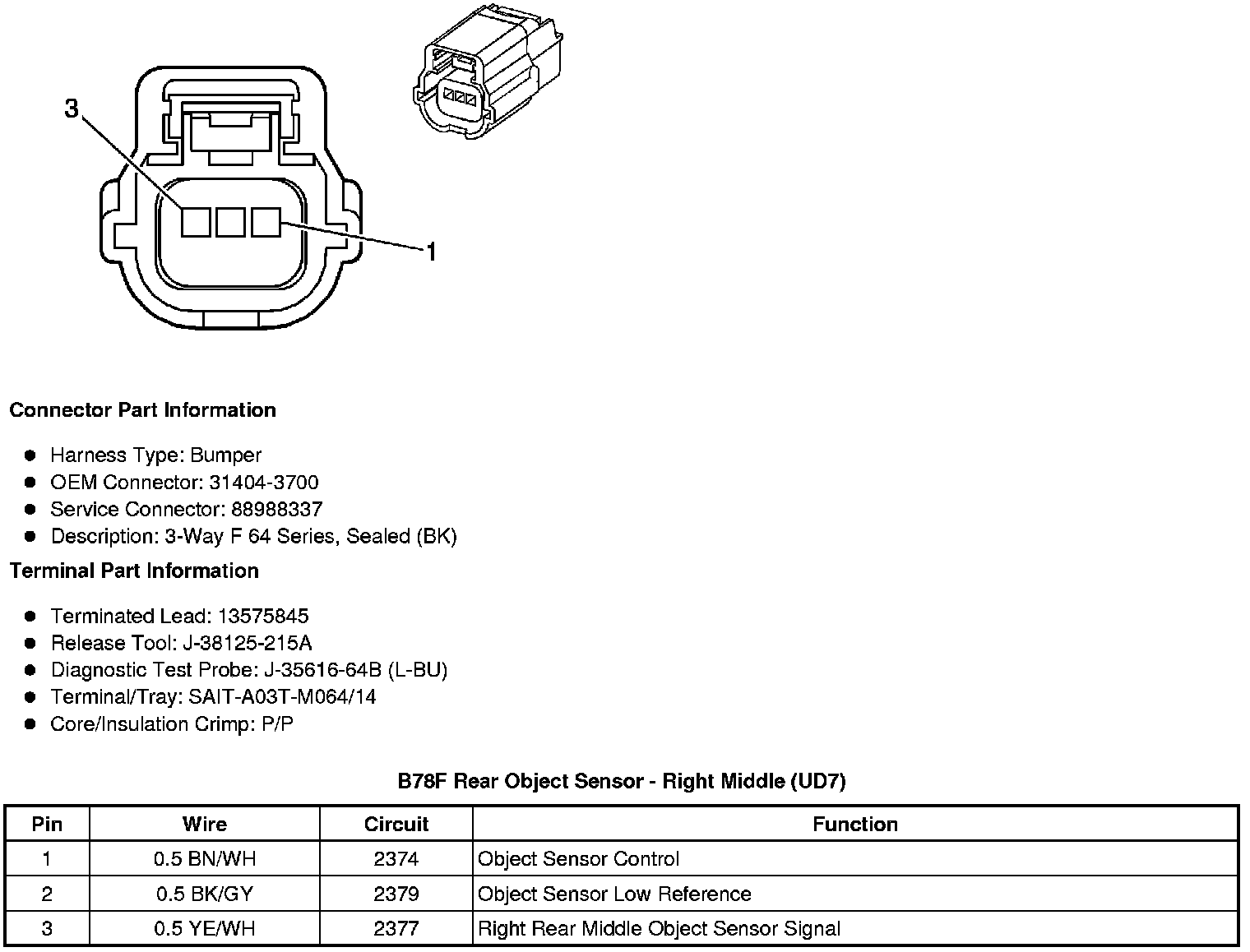

B78F Rear Object Sensor - Right Middle (UD7)
