Engine Coolant Temperature Sensor 2

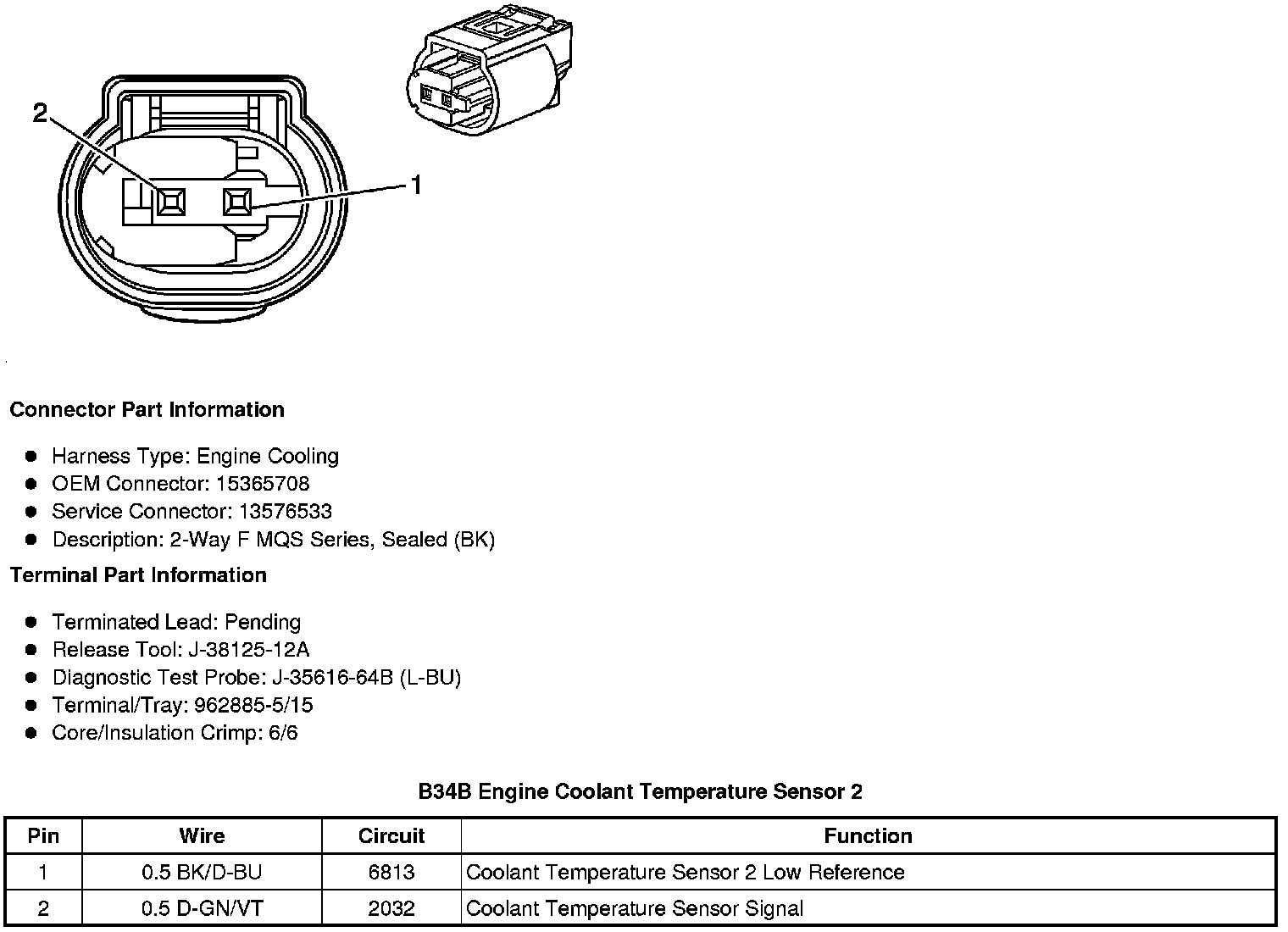

Component Connector End Views
B34B Engine Coolant Temperature Sensor 2
