Entertainment System Control Module

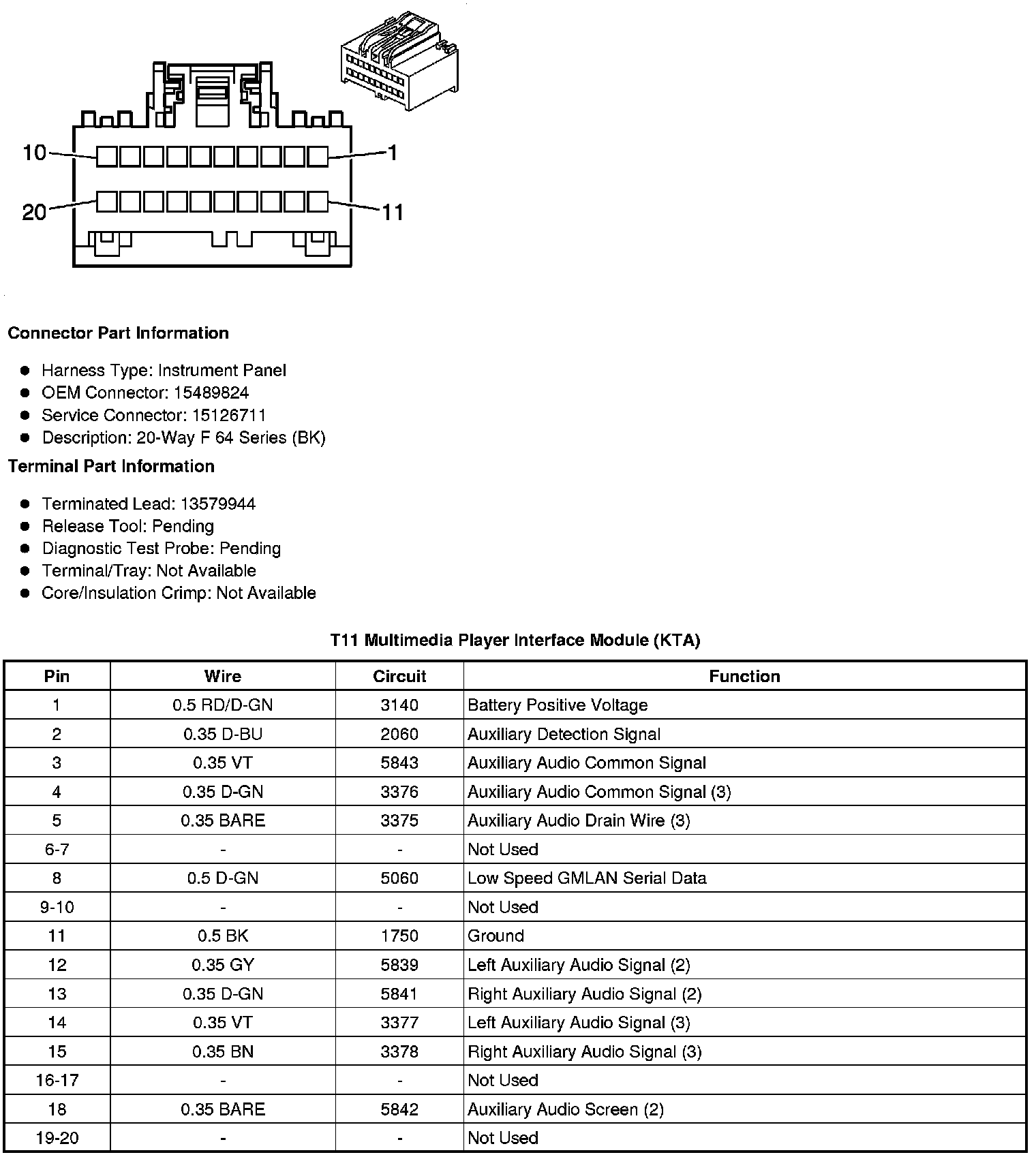

Component Connector End Views
T11 Multimedia Player Interface Module (KTA)
