Keyless Entry Control Module X2 (ATH)

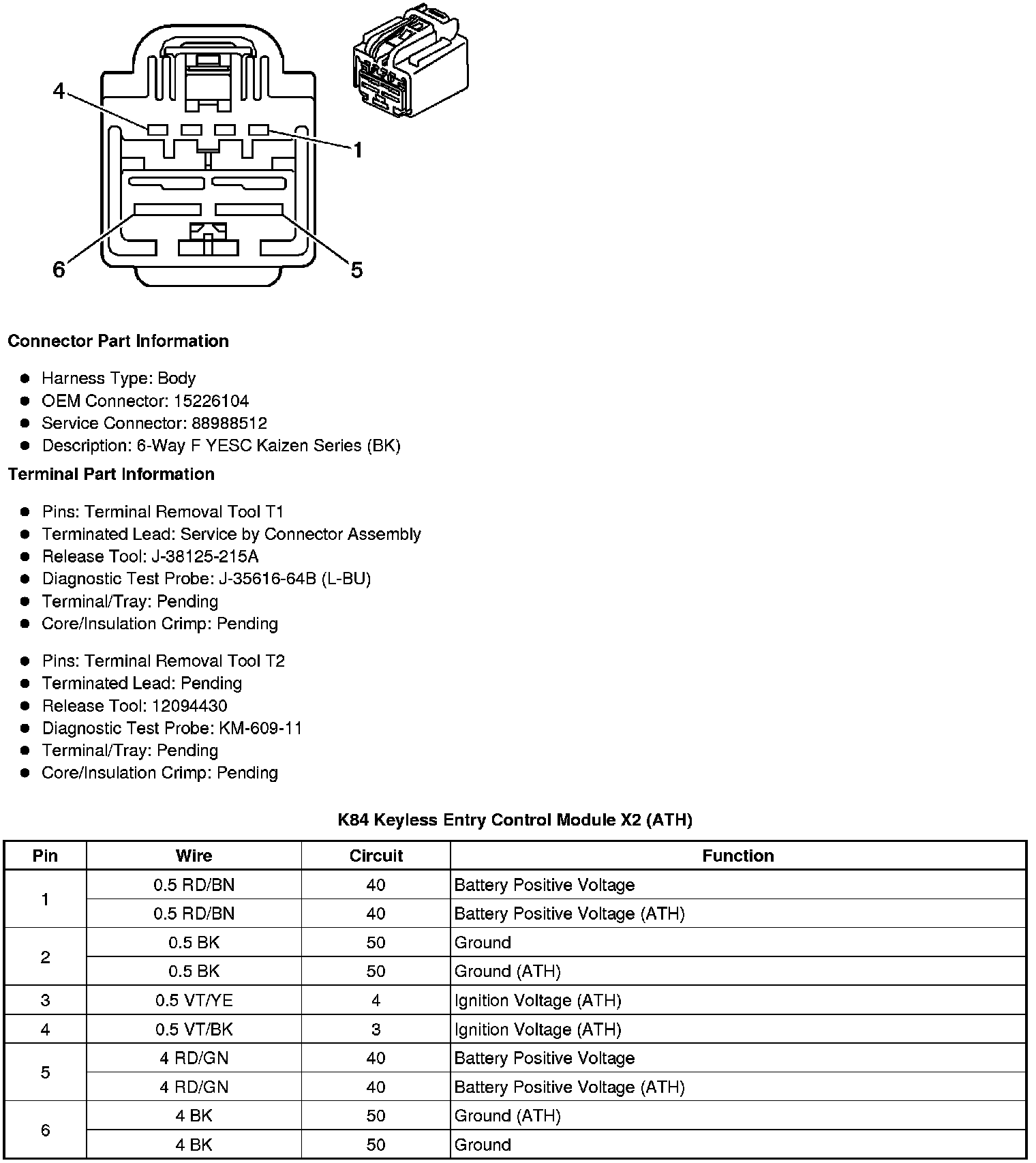

Component Connector End Views

K84 Keyless Entry Control Module X2 (ATH)
