Transmission Shift Position Indicator Lamp

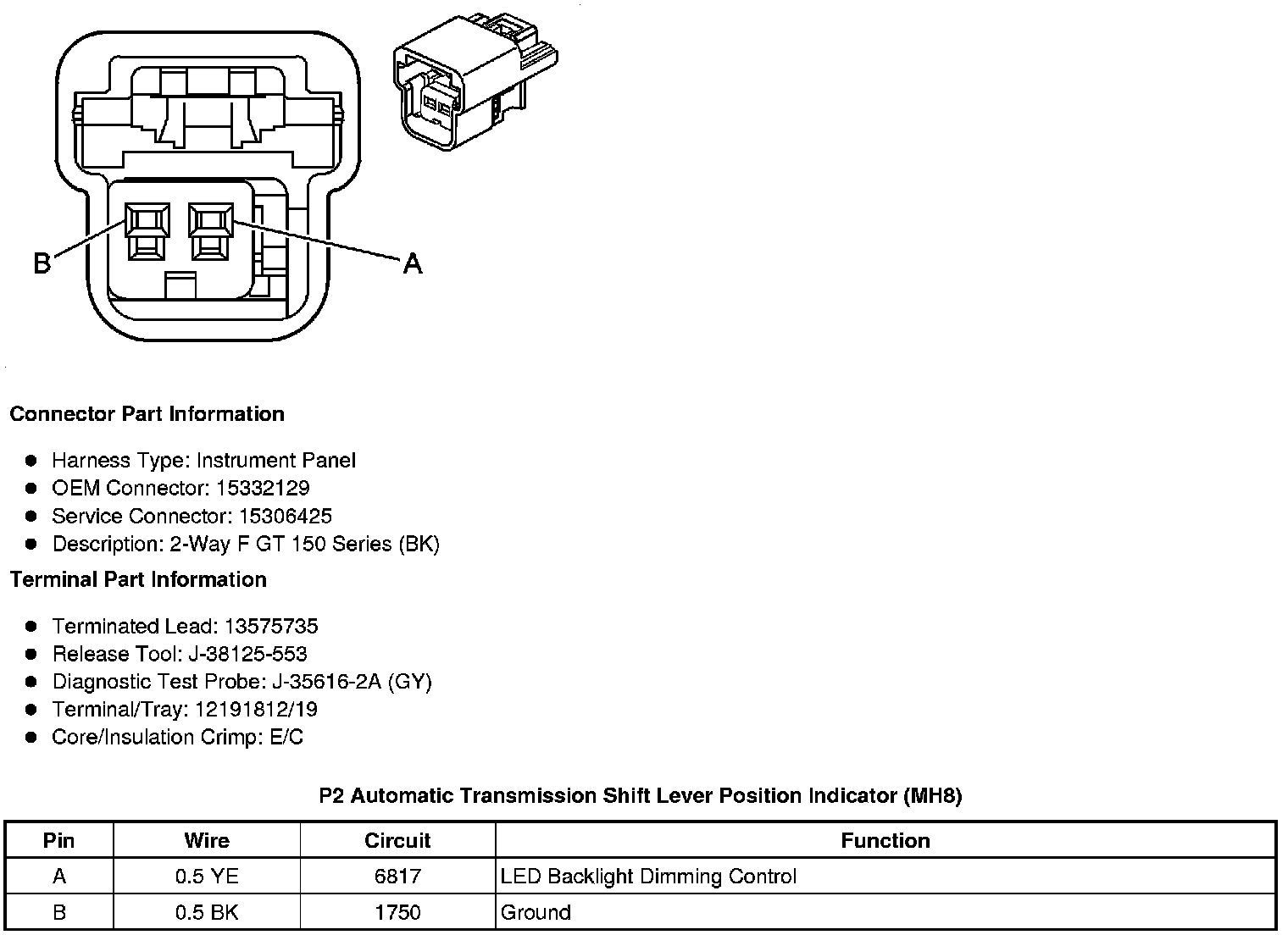

Component Connector End Views

P2 Transmission Shift Lever Position Indicator (MH8)
