Instrument Panel/Center Console Component Views

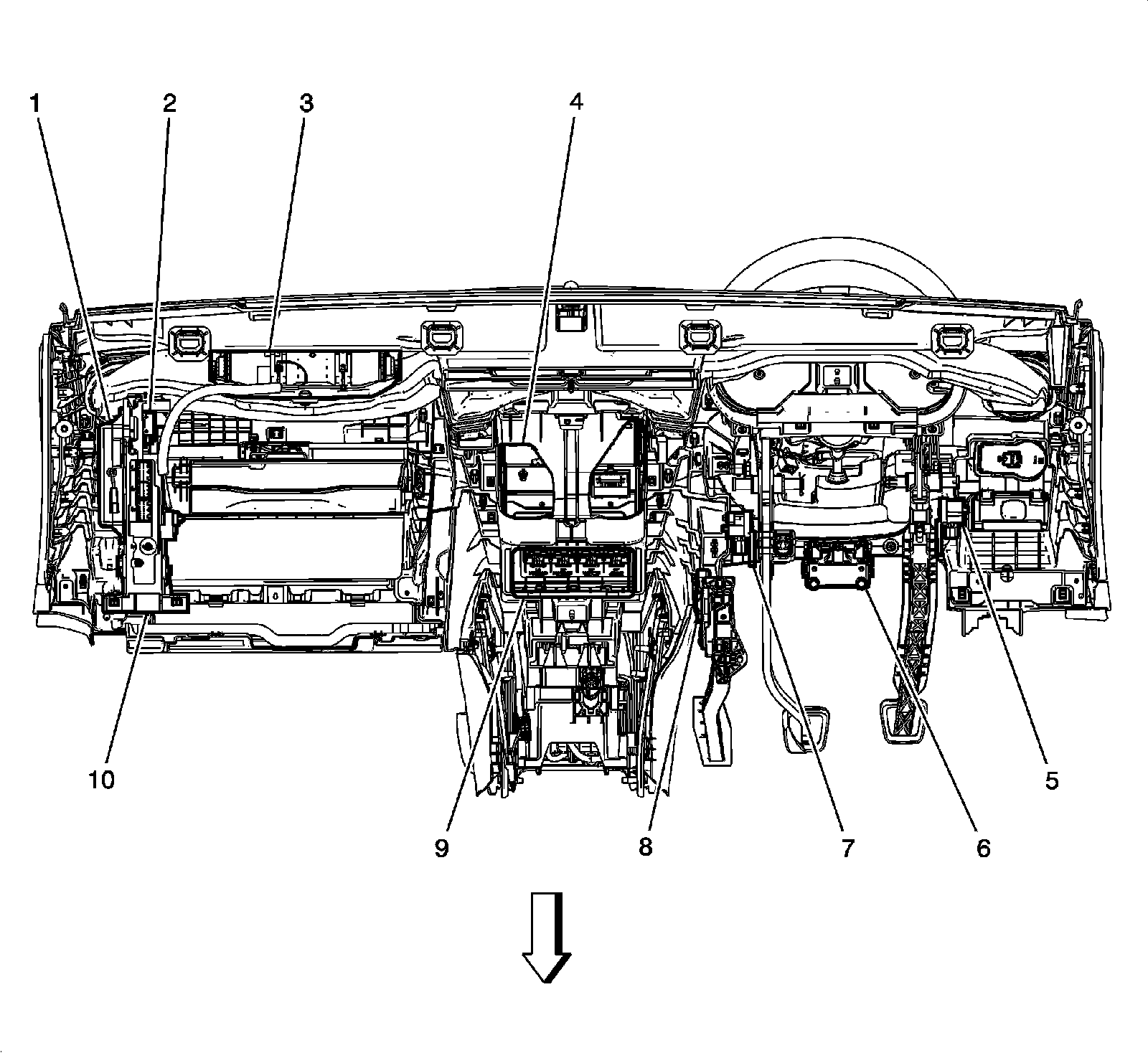

Behind the Instrument Panel Components




1 - C3 Telematics Communication Interface Control Module Battery (UE1)
2 - T15 Navigation Antenna Signal Splitter (UE1 and UYS)
3 - F101 Passenger Instrument Panel Air Bag
4 - A11 Radio
5 - B25B Clutch Pedal Position Sensor (MF3 or MZ0)
6 - K60 Steering Column Lock Control Module (ULS)
7 - B22 Brake Pedal Position Sensor
8 - B107 Accelerator Pedal Position Sensor
9 - K33 HVAC Control Module
10 - K73 Telematics Communication Interface Control Module (UE1)
