Front of Vehicle Components

Front of Vehicle/Engine Compartment Component Views

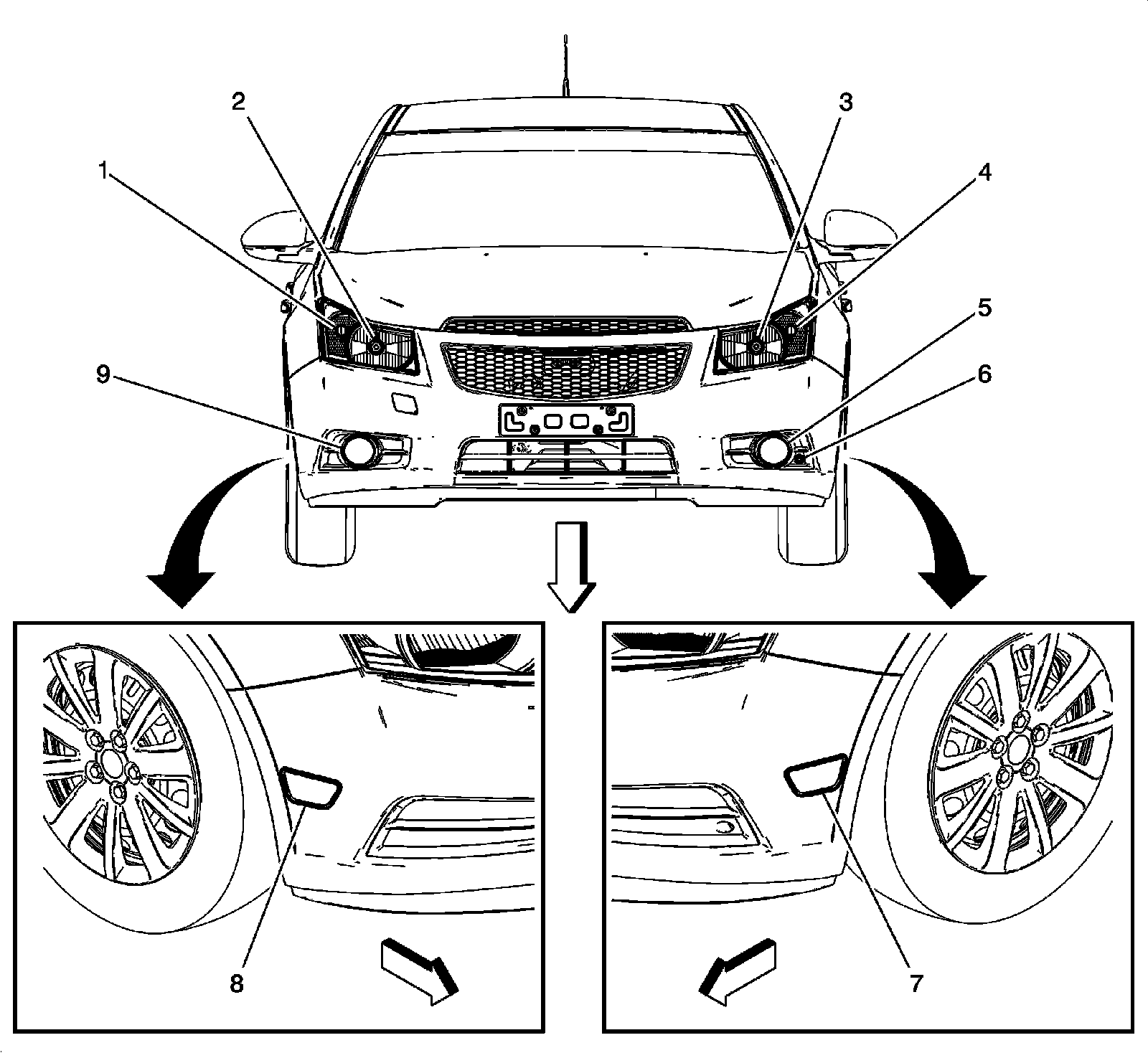

Front of Vehicle Components




1 - E4P Park/Turn Signal Lamp - Right
2 - E13R Headlamp - Right
3 - E13L Headlamp - Left
4 - E4N Park/Turn Signal Lamp - Left
5 - E29LF Fog Lamp - Left Front (T3U)
6 - B9 Ambient Air Temperature Sensor
7 - E2LF Side Marker Lamp - Left Front
8 - E2RF Side Marker Lamp - Right Front
9 - E29RF Fog Lamp - Right Front (T3U)
