Left Front of Engine Components

Powertrain Component Views

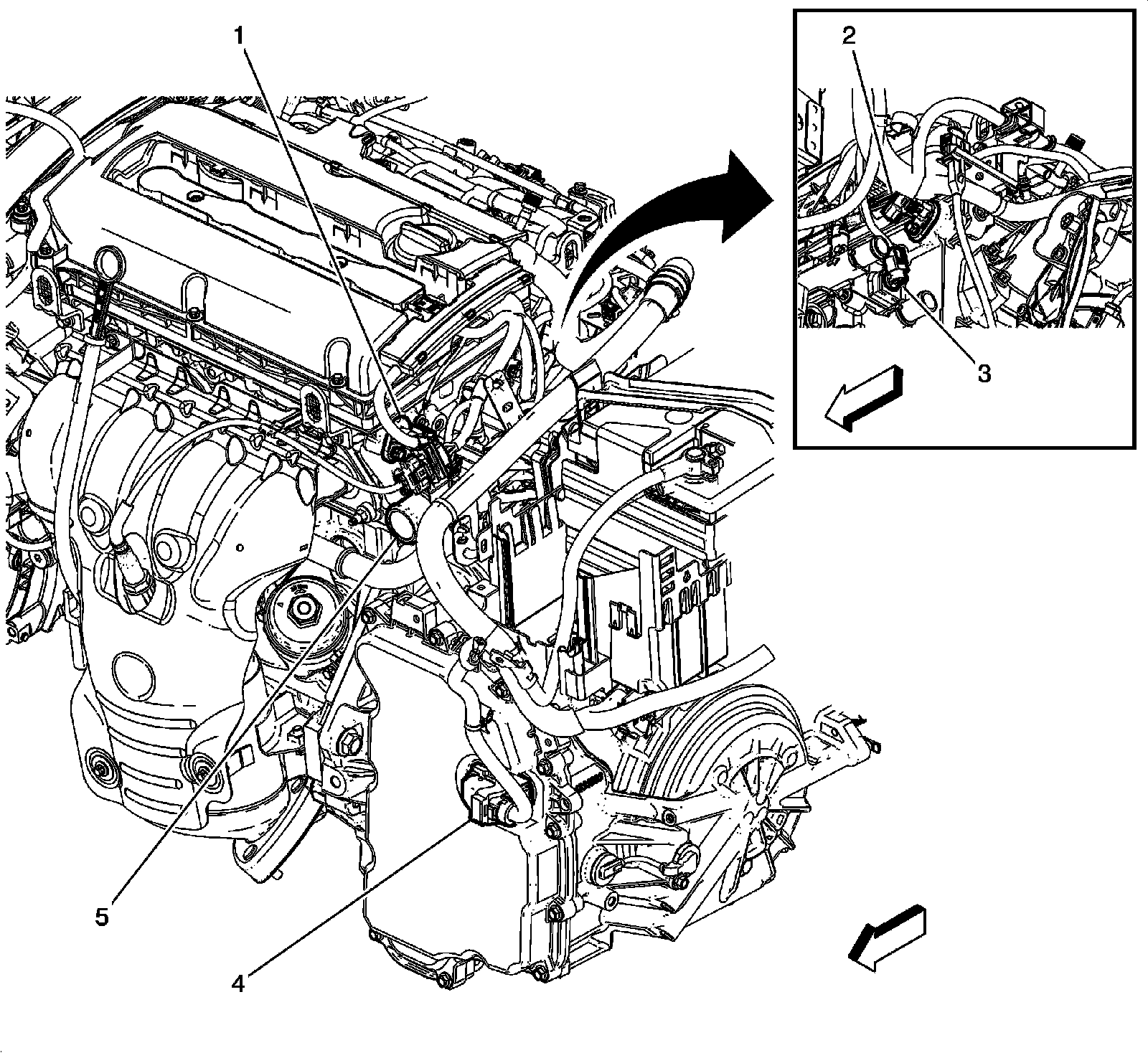

Left Front of Engine Components (LUW)




1 - B23E Camshaft Position Sensor - Exhaust
2 - B23F Camshaft Position Sensor - Intake
3 - B34A Engine Coolant Temperature Sensor 1
4 - Q8 Control Solenoid Valve Assembly (MH8)
5 - E41 Engine Coolant Thermostat Heater
