Fuel Pressure Sensor: Locations

Wheels/Vehicle Underbody Component Views

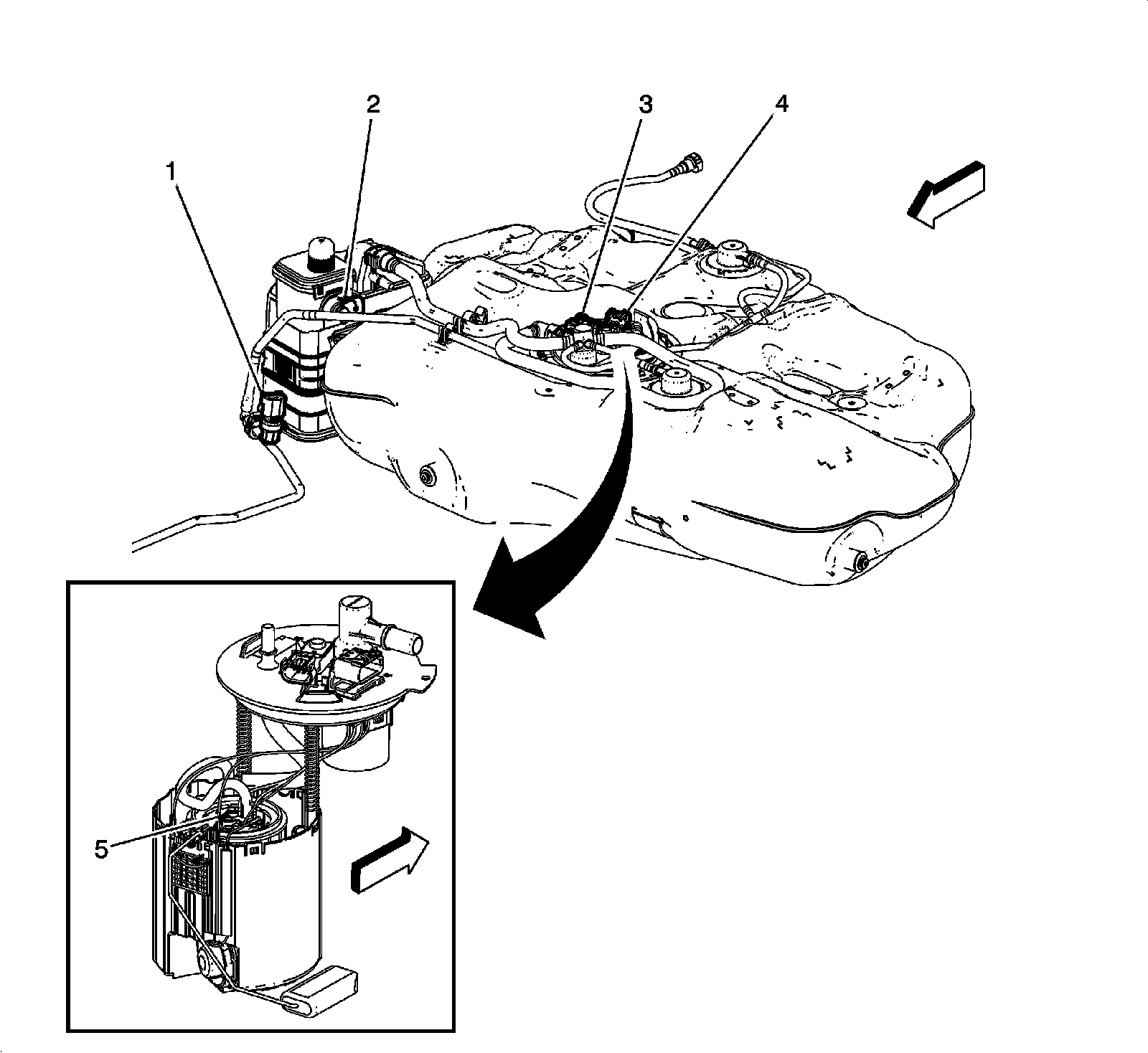

Fuel Tank Components




1 - B47 Fuel Pressure Sensor
2 - Q13 Evaporative Emission Vent Solenoid Valve
3 - A7 Fuel Pump and Level Sensor Assembly
4 - B150 Fuel Tank Pressure Sensor
5 - G12 Fuel Pump
