Keyless And Passive Entry (ATH)

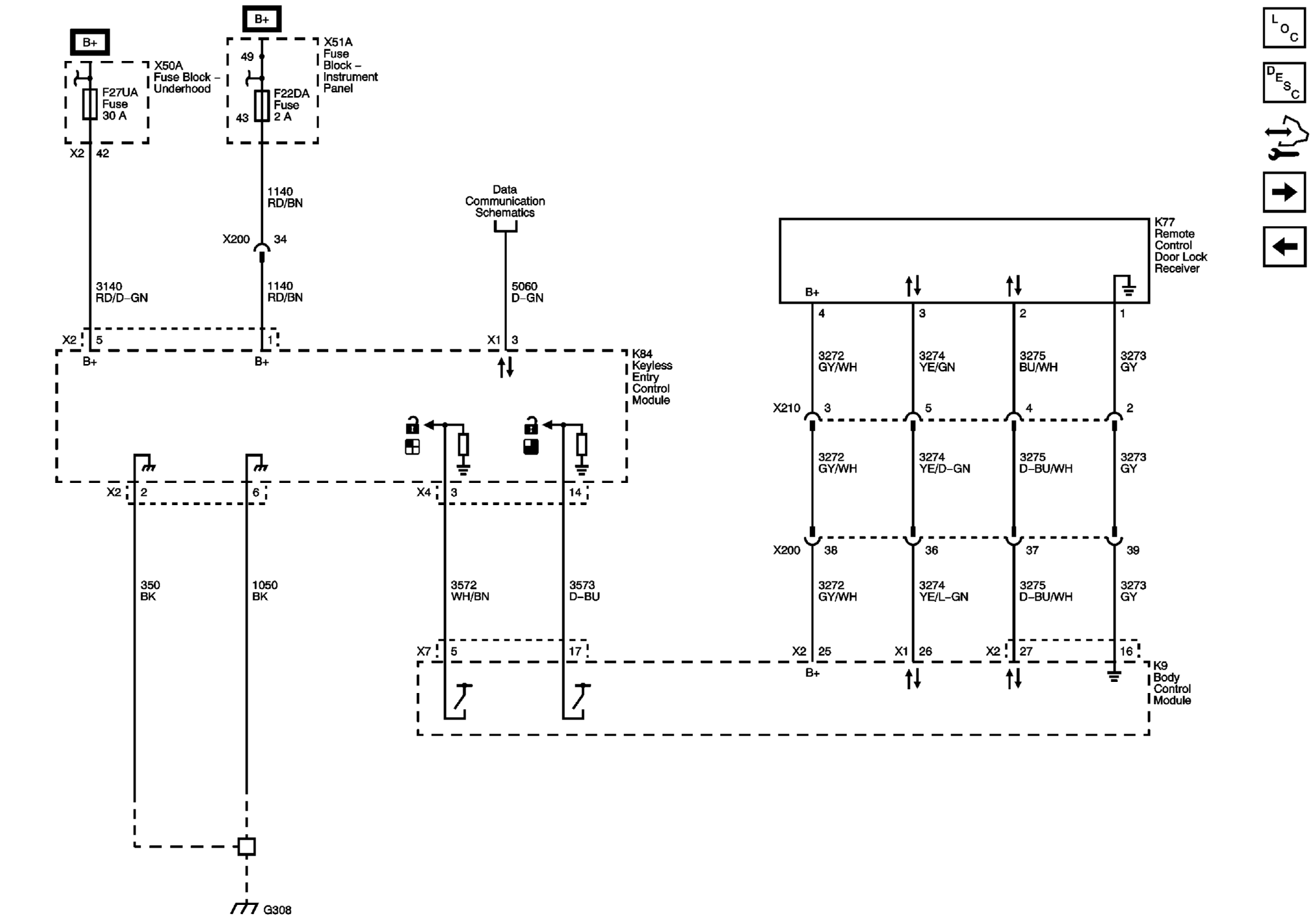

Fig 1: Keyless And Passive Entry (ATH) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
