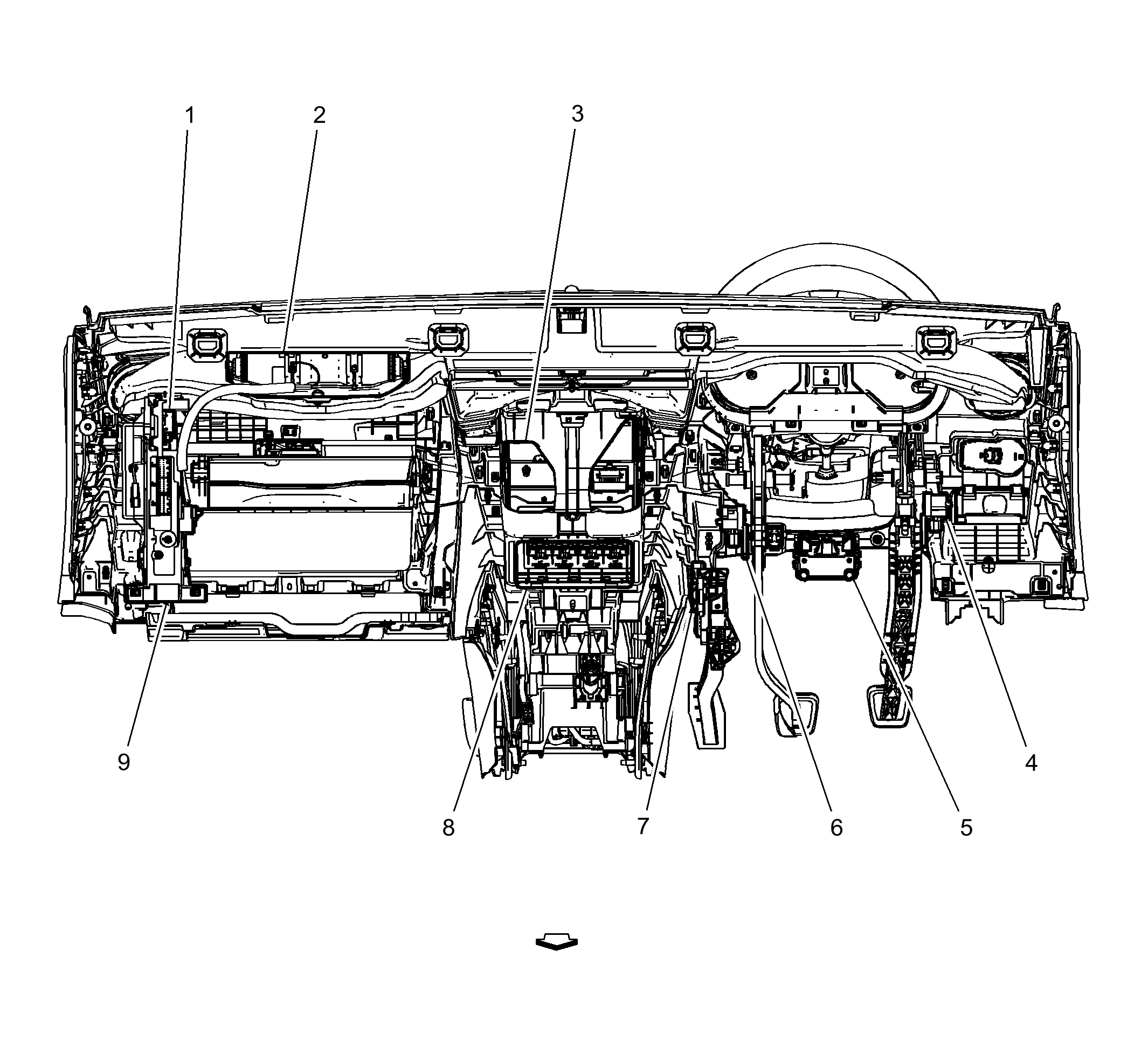

Behind the Instrument Panel Components
Behind the Instrument Panel Components
| Component Name | Callout |
|---|---|
| C3 Telematics Communication Interface Control Module Battery (UE1) | 1 |
| T15 Navigation Antenna Signal Splitter (UE1 and UYS) | 2 |
| F101 Passenger Instrument Panel Air Bag | 3 |
| A11 Radio | 4 |
| B25B Clutch Pedal Position Sensor (MF3 or MZ0) | 5 |
| K60 Steering Column Lock Control Module (ULS) | 6 |
| B22 Brake Pedal Position Sensor | 7 |
| B107 Accelerator Pedal Position Sensor | 8 |
| K33 HVAC Control Module | 9 |
| K73 Telematics Communication Interface Control Module (UE1) | 10 |
