Instrument Panel and Center Console Components
Instrument Panel and Center Console Components

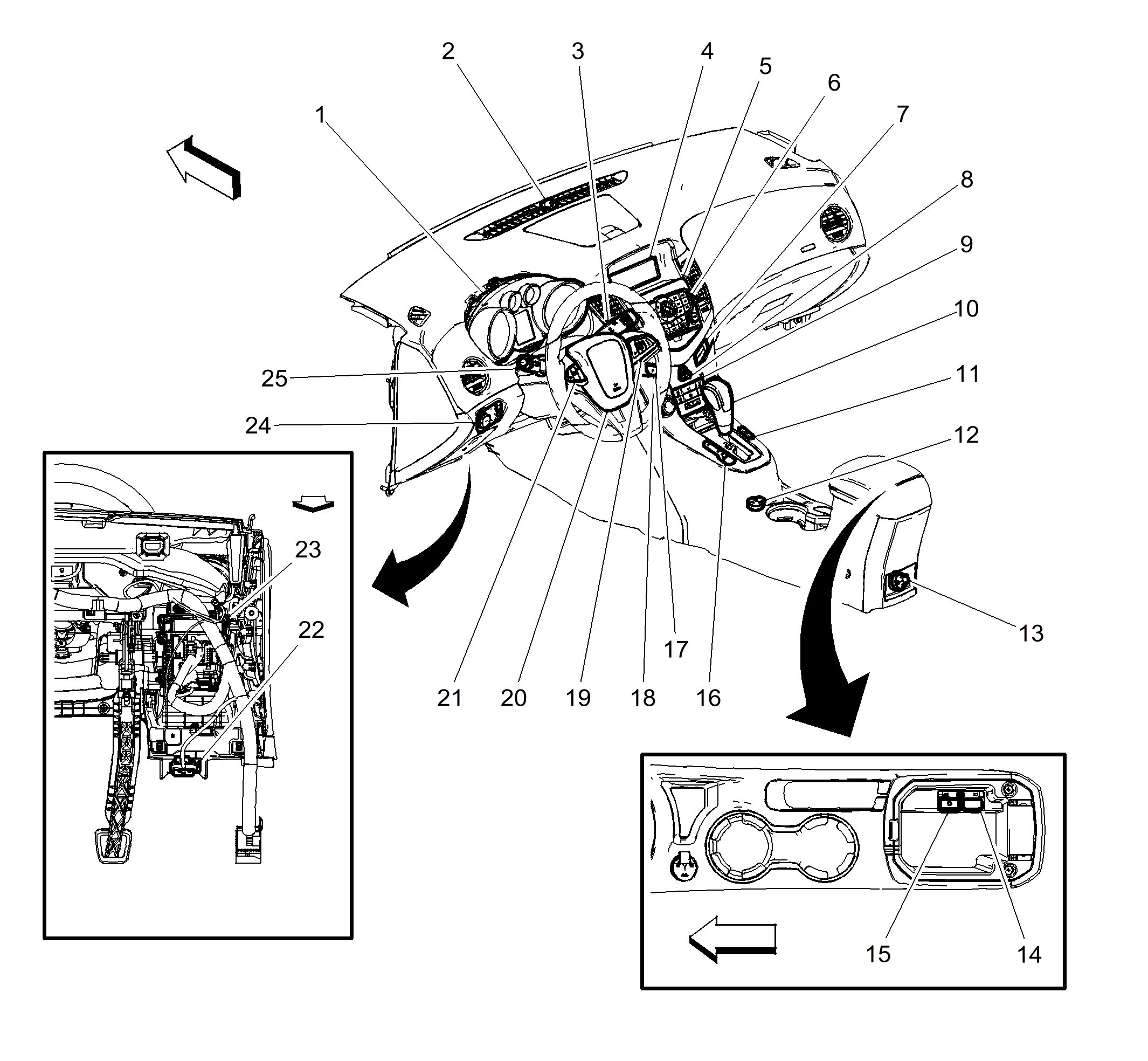

| Component Name | Callout |
|---|---|
| P16 Instrument Cluster | 1 |
| B10B Ambient Light/Sunload Sensor | 2 |
| S82 Windshield Wiper/Washer Switch | 3 |
| P17 Info Display Module | 4 |
| A22 Radio Controls | 5 |
| P14 Passenger Air Bag Disable Indicator | 6 |
| S26 Hazard Lamps Switch | 7 |
| A26 HVAC Controls | 8 |
| S3 Transmission Shift Lever (MH8) | 9 |
| S75 Traction Control Switch (FX3) | 10 |
| E32 Cigarette Lighter Receptacle | 11 |
| X80L Accessory Power Receptacle - Rear Console | 12 |
| X83 Auxiliary Audio Input | 13 |
| P2 Transmission Shift Lever Position Indicator (MH8) | 14 |
| S13D Door Lock Switch - Driver | 15 |
| S70R Steering Wheel Controls Switch - Right (W1Y) | 16 |
| F107 Steering Wheel Air Bag | 17 |
| S70L Steering Wheel Controls Switch - Left (K34) | 18 |
| X51A Fuse Block - Instrument Panel | 19 |
| X84 Data Link Connector | 20 |
| S30 Headlamp Switch | 21 |
| S78 Turn Signal/Multi-Function Switch | 22 |
