Interior HVAC Components

Interior HVAC Components

Component Name Callout
M37 Mode Door Actuator 1
M6 Air Temperature Door Actuator 2
M46 Air Recirculation Door Actuator 3
B39 A/C Evaporator Temperature Sensor 4
K8 Blower Motor Control Module 5
M8 Blower Motor 6

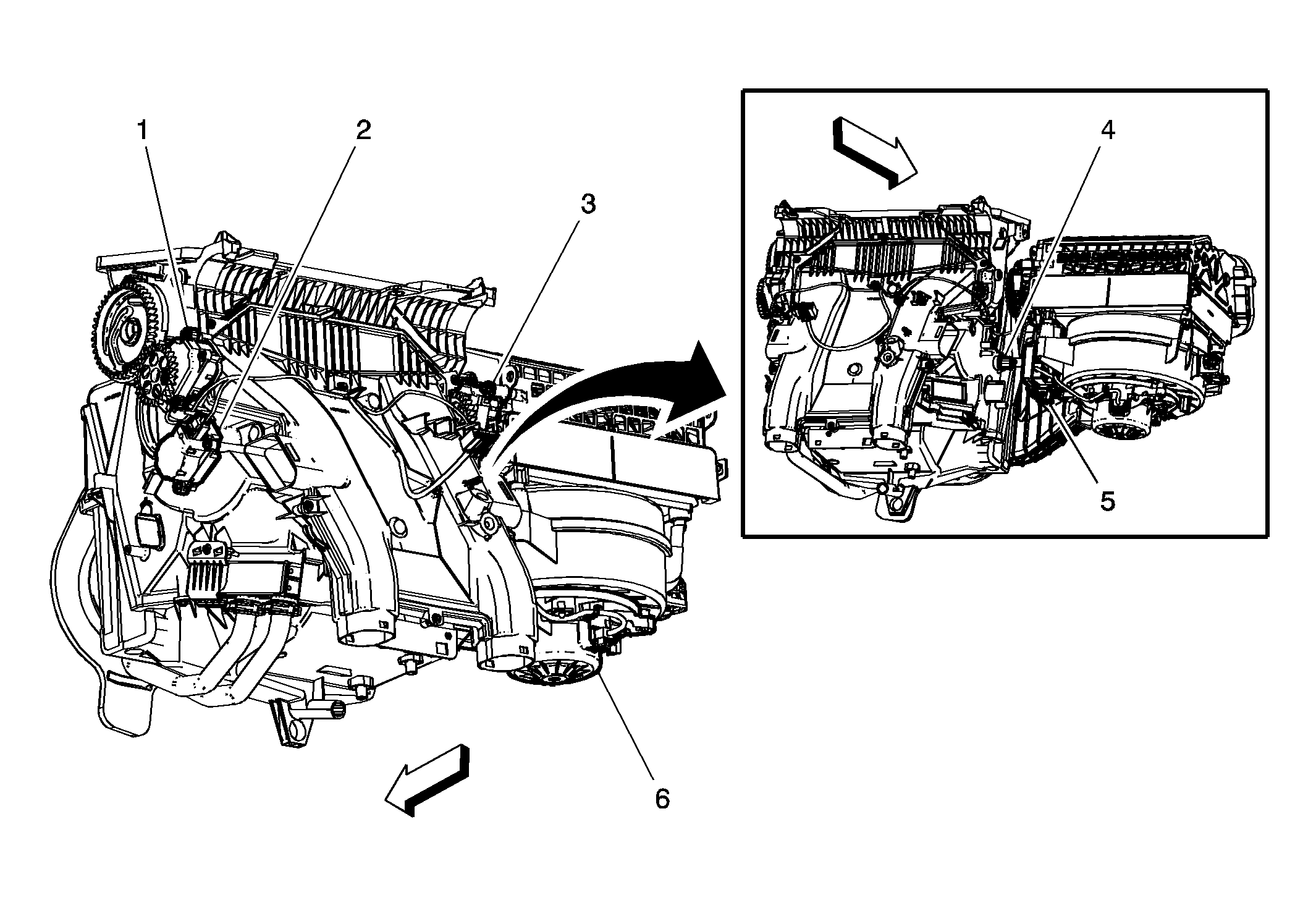

Fig 1: Interior HVAC Components
GM2543187Courtesy of GENERAL MOTORS COMPANY
