Right Front Of The Engine Components (LUW)
Right Front Of The Engine Components (LUW)
Component Name
Callout
B37 Engine Oil Pressure Switch
1
Q46 A/C Compressor Solenoid Valve
2

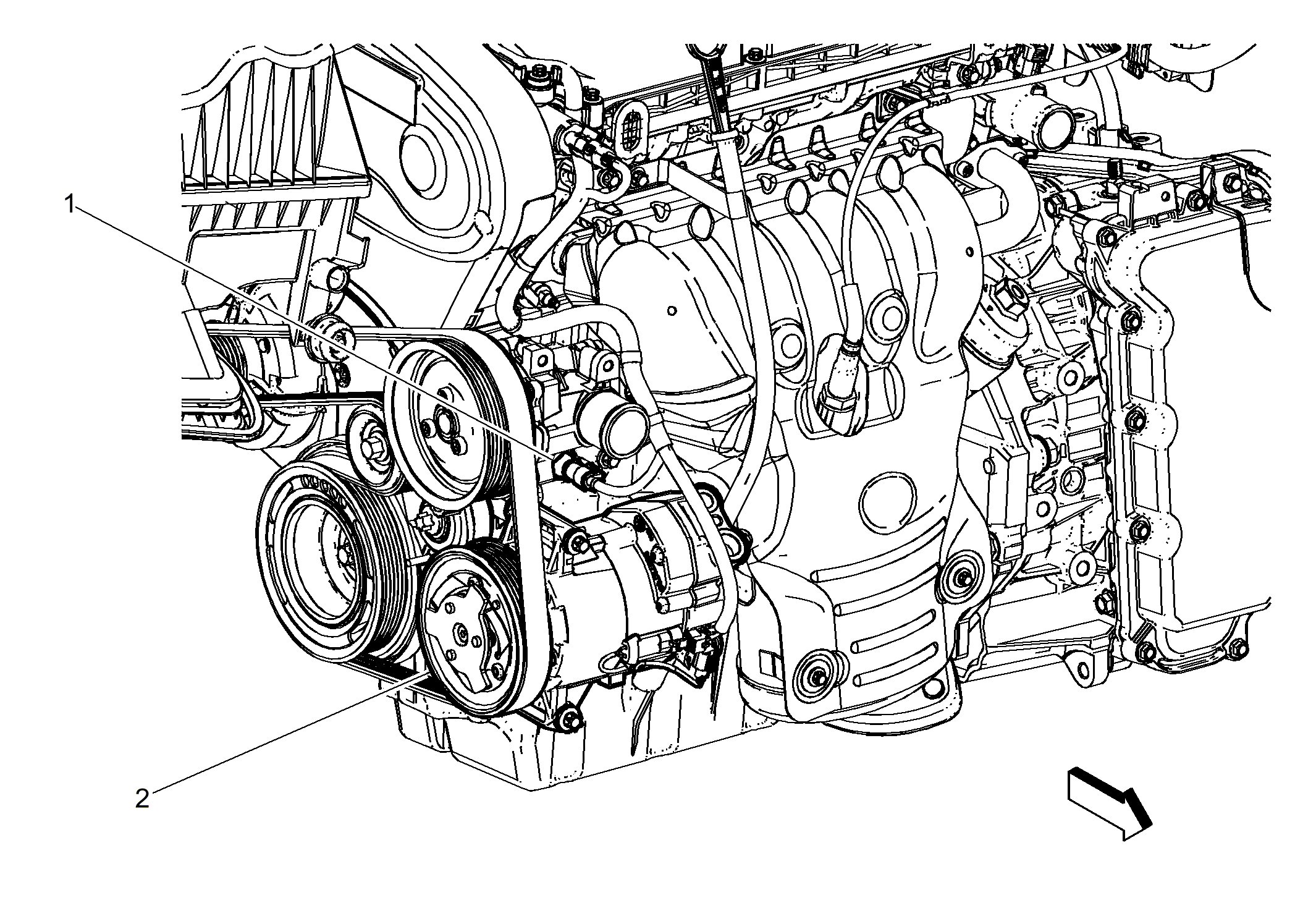

Fig 1: Right Front Of Engine Components (LUW)
Courtesy of GENERAL MOTORS COMPANY
