Right Rear Of The Engine Components (LUW)

Right Rear Of The Engine Components (LUW)

Component Name Callout
Q22 Intake Manifold Tuning Solenoid Valve 1
G13 Generator 2
B68 Knock Sensor 3
B52B Heated Oxygen Sensor 2 4
M64 Starter Motor 5

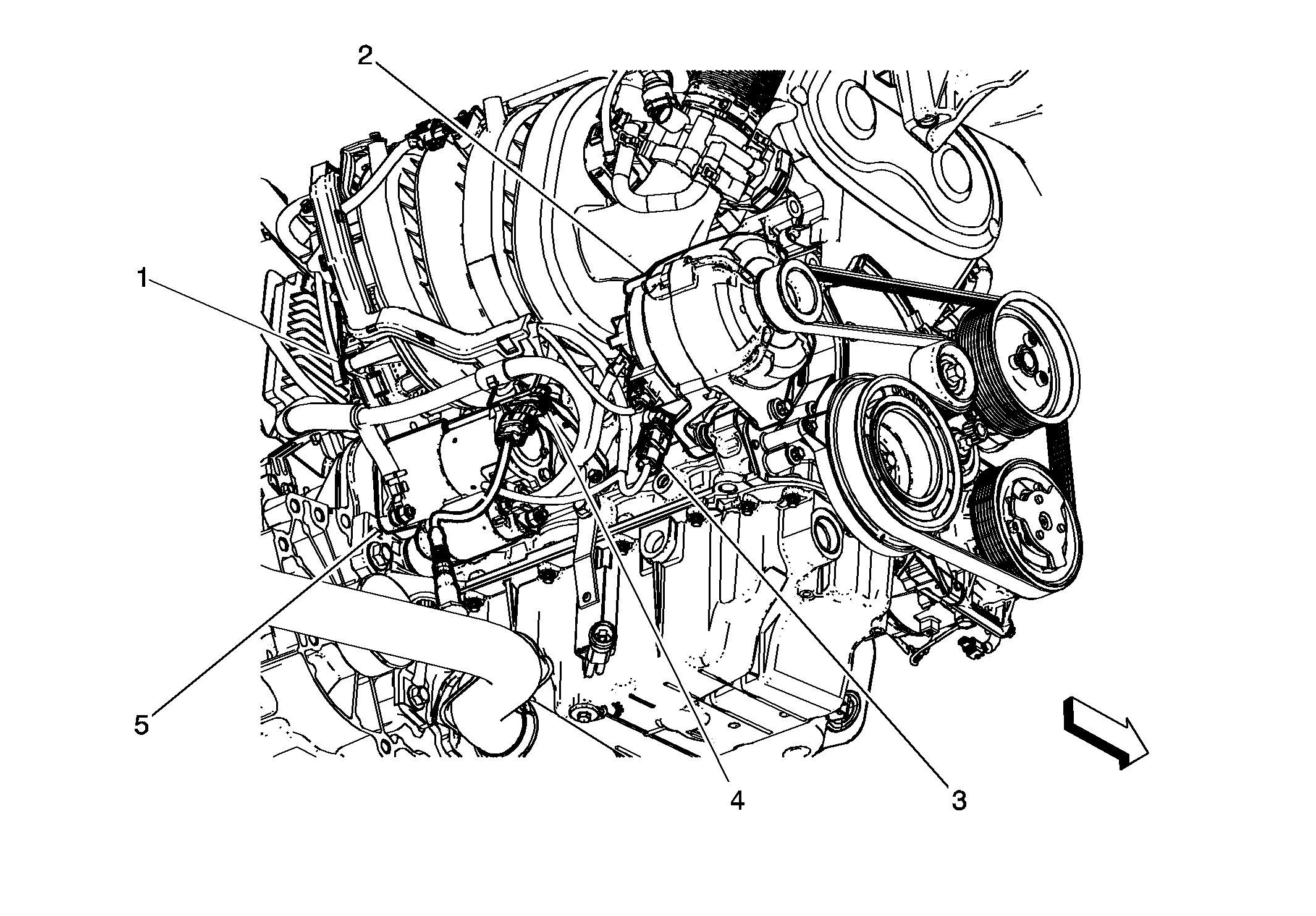

Fig 1: Right Rear Of Engine Components (LUW)
GM2542838Courtesy of GENERAL MOTORS COMPANY
