Fuel Tank Heat Shield Replacement

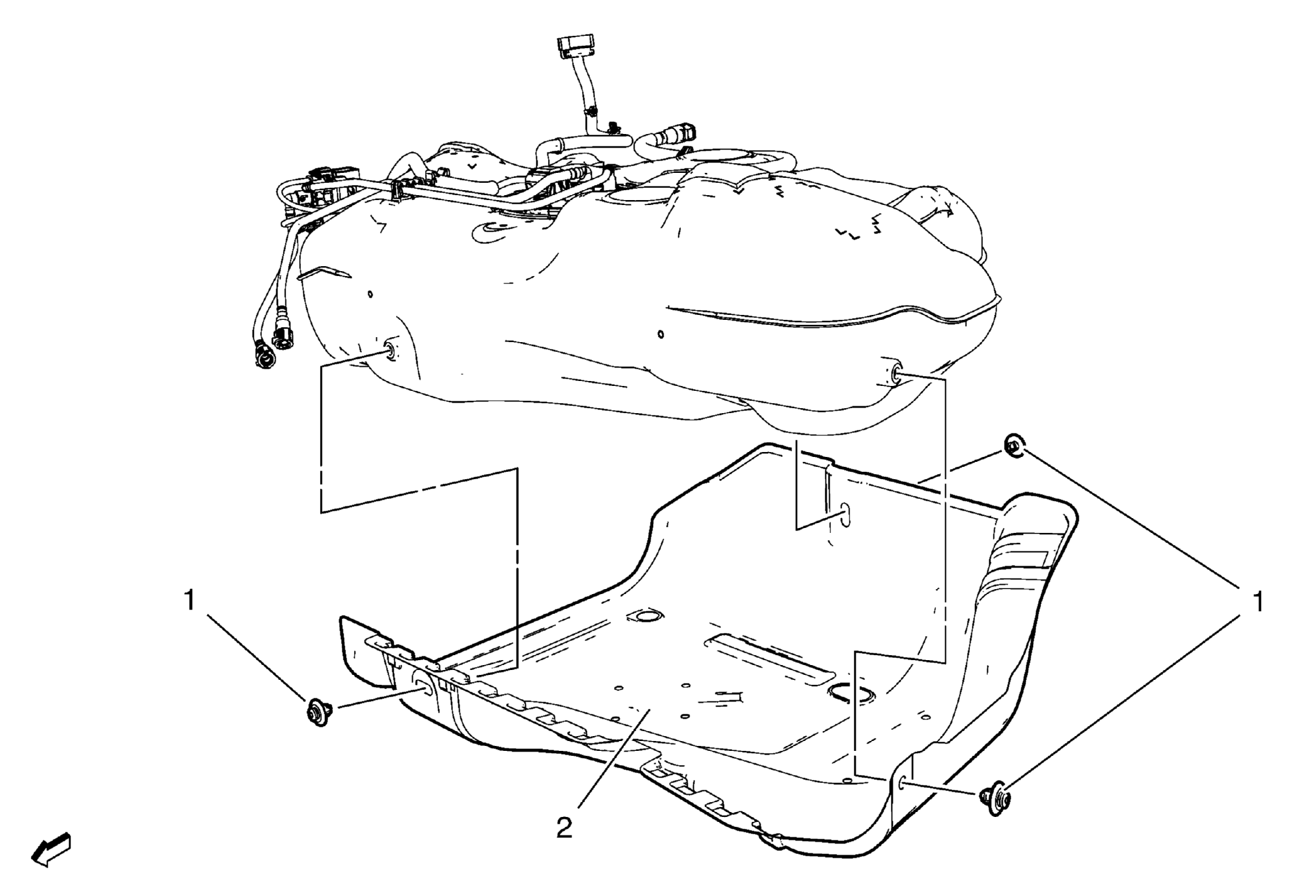

Fig 1: Fuel Tank Heat Shield
GM2027953Courtesy of GENERAL MOTORS COMPANY
Fuel Tank Heat Shield Replacement

Callout Component Name
WARNING:

Refer to Safety Goggles and Fuel Warning .

WARNING:

Refer to Actions to Take When Working with Fuel Warning .

Preliminary Procedure Remove the fuel tank. Refer to Fuel Tank Replacement .
1 Fuel Tank Heat Shield Retaining Clamp (Qty: 3)
2 Fuel Tank Heat Shield
