Installation Procedure

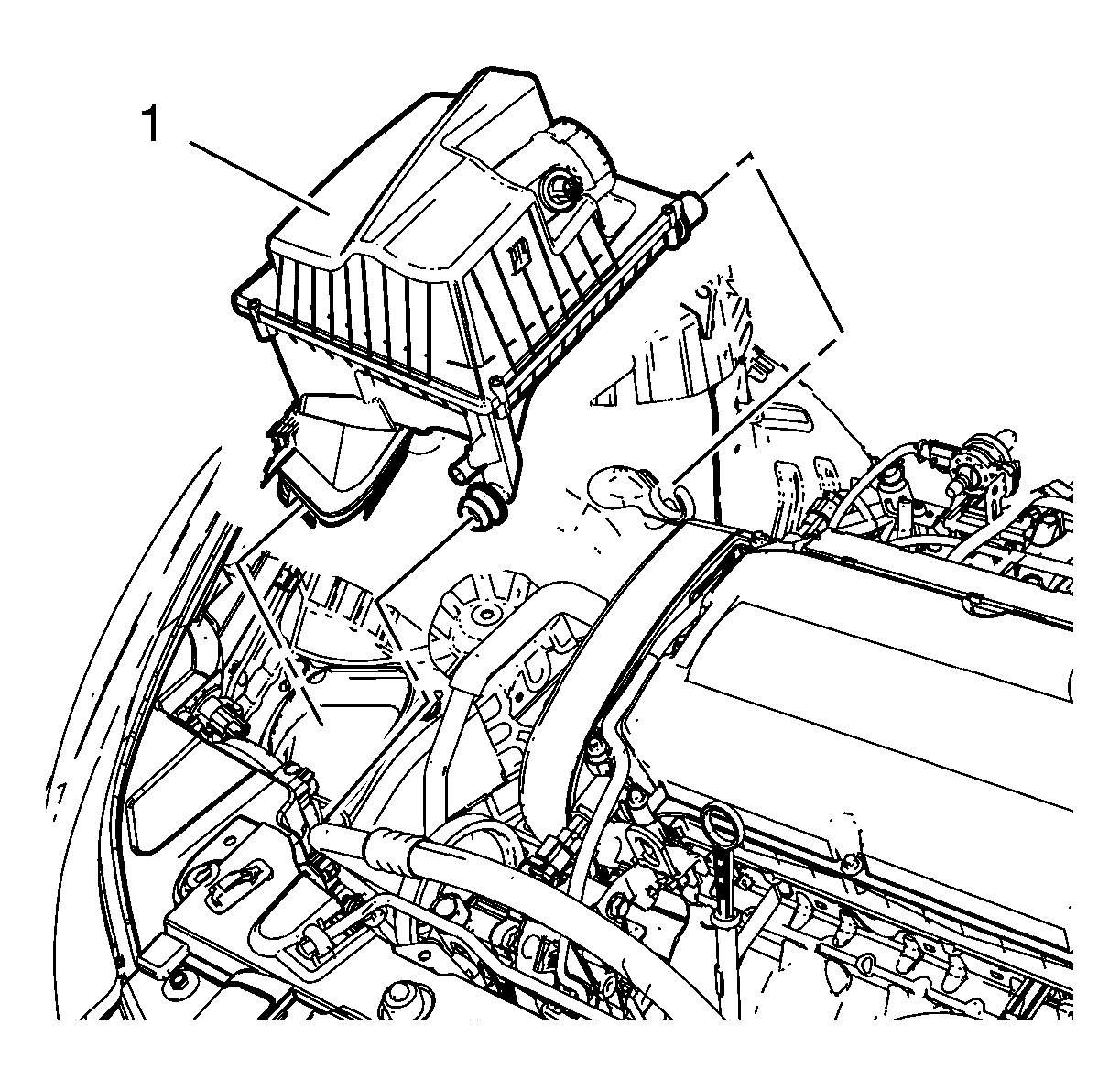

    Fig 1: Air Cleaner Assembly
    GM2027600Courtesy of GENERAL MOTORS COMPANY
  1. Install the air cleaner assembly (1).
    • Clip in the drain hose, if equipped
    • Clip in the air cleaner inlet duct
  2. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .

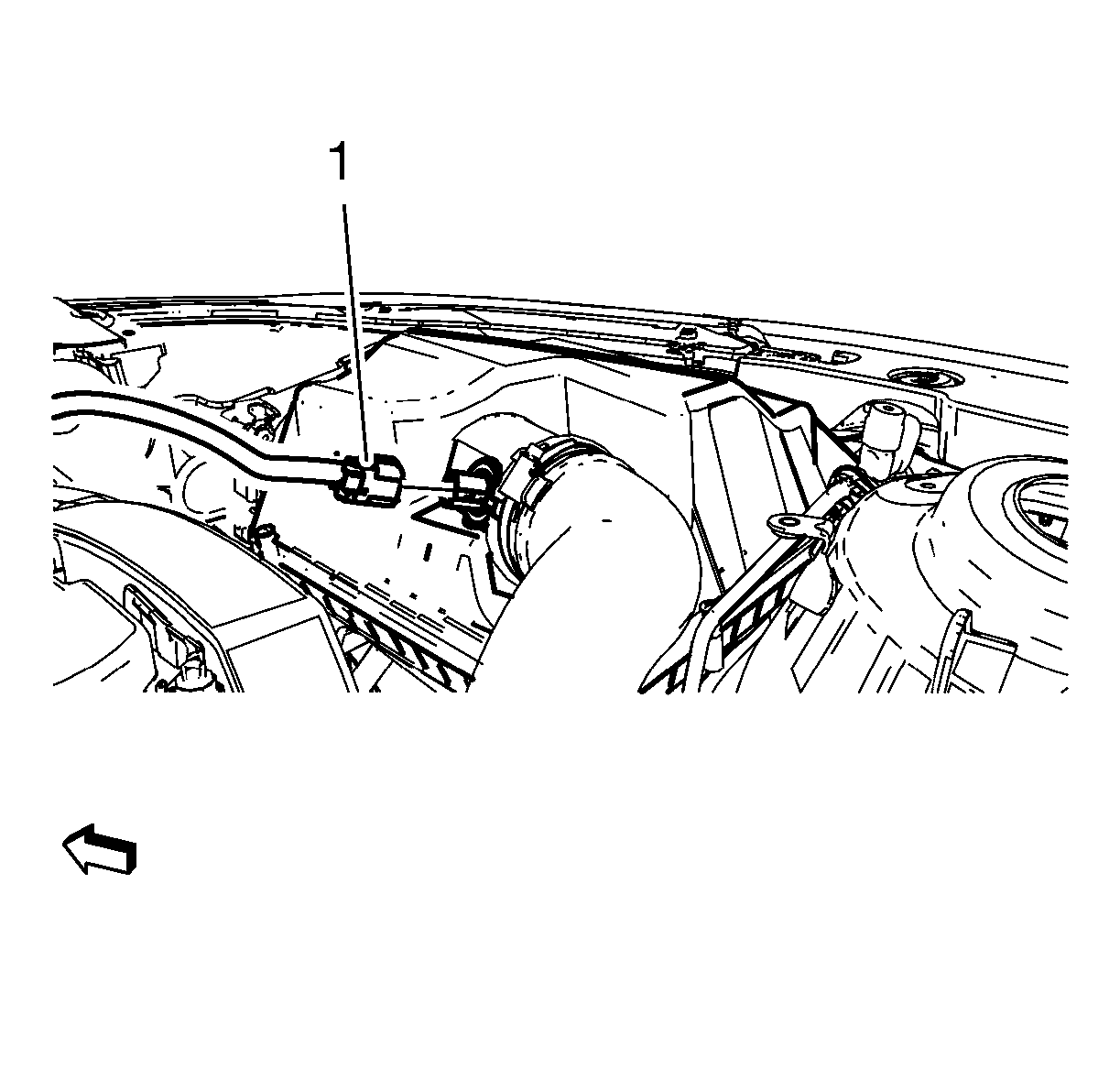

    3. Fig 2: Intake Air Sensor Wiring Harness Plug
    GM2027620Courtesy of GENERAL MOTORS COMPANY
  3. Connect the intake air temperature sensor wiring harness plug (1).
  4. Close the hood.
